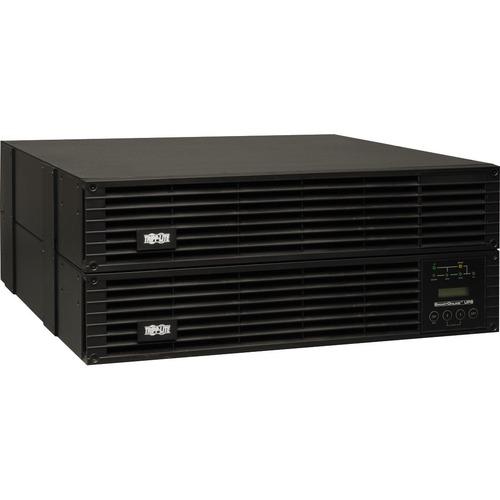

Tripp Lite SmartOnline EZ SU6000RT4UHV 6000 VA Tower/Rack Mountable UPS - 4U Rack/Tower - 6 Hour Recharge - 2 Minute Stand-by - 230 V AC Input - 200 V AC, 208 V AC, 240 V AC Output - 2 x NEMA L6-30R, 2 x NEMA L6-20R
Tripp Lite SmartOnline EZ SU6000RT4UHV 6000 VA Tower/Rack Mountable UPS - 4U Rack/Tower - 6 Hour Recharge - 2 Minute Stand-by - 230 V AC Input - 200 V AC, 208 V AC, 240 V AC Output - 2 x NEMA L6-30R, 2 x NEMA L6-20R
Tripp Lite SmartOnline EZ SU6000RT4UHV 6000 VA Tower/Rack Mountable UPS - 4U Rack/Tower - 6 Hour Recharge - 2 Minute Stand-by - 230 V AC Input - 200 V AC, 208 V AC, 240 V AC Output - 2 x NEMA L6-30R, 2 x NEMA L6-20R
Featuring true on-line operation with pure sine wave output, zero transfer time to battery and complete UPS replacement capability with no downtime, the SU6000RT4UHV provides the highest level of protection available for mission-critical equipment from power outages, voltage fluctuations and transient surges. It converts incoming AC power to DC, and re-converts it back to filtered AC output with a pure sine wave, isolating connected components from all power problems in high-voltage environments. The SU6000RT4UHV has a 6kVA/5400W capacity and 4 AC outlets (2 L6-20R; 2 L6-30R).With its detachable PDU, the SU6000RT4UHV is easily hot-swappable by a user of any skill set-no need for lengthy and expensive service calls, and no downtime if a repair or battery replacement is needed. In bypass mode, the PDU passes power to equipment without the use of the power and battery modules, allowing them to be removed while keeping your application in operation.
UPS battery backup keeps connected equipment operational through short power failures, and provides time to save data and perform an orderly system shutdown in case of a prolonged blackout. The SU6000RT4UHV's runtime can be expanded with optional external battery packs.
The SU6000RT4UHV features a highly efficient (96%) economy mode setting that can significantly reduce a facility's energy costs by minimizing heat output, reducing cooling requirements and consuming less electricity.
An LCD display with LED indicators enables IT personnel to monitor operating modes and conditions. The LCD/LED panel rotates for viewing in horizontal rack or vertical tower installations and includes an audible alarm that signals various conditions.
The SU6000RT4UHV features a USB port and a DB9 port that, when used with Tripp Lite's PowerAlert software, provides comprehensive network power monitoring and control. An optional network management card accessory, enables the UPS to operate as an IP managed device.
The unit requires only 4U of rack space in a standard rack enclosure and can be installed in a 2-post rack using the 2POSTRMKITHD accessory, or in a tower configuration with the 2-9USTAND accessory.
The SU6000RT4UHV comes with $250,000 Ultimate Lifetime Insurance (U.S., Canada, and Puerto Rico only) for connected equipment.
- Completely user hot-swappable-no service call or technician needed
- Included maintenance bypass switch enables live replacement of UPS with zero downtime
- Protects rackmount servers, telecom systems and other networking equipment in high-voltage environments with true on-line operation, pure sine wave output and zero transfer time
- 4 AC outlets (2 L6-20R; 2 L6-30R) with 200/208/220/230/240V 50/60Hz output
- 6kVA/5400W capacity in 4U form factor with power module and independent, detachable PDU
- Hot-swappable power and battery modules
- 8.5-minute half-load runtime, 2-minute full-load; expandable runtime with external battery packs
- Front panel LEDs with detailed LCD monitoring and control screen
| Status Indicators |
|
| Network Management | SNMP Manageable |
| Limited Warranty | 2 Year |
| Sound Emission | 60 dB(A) |
| Maximum Operating Temperature | 104°F (40°C) |
| Maximum Operating Elevation | 9842.52 ft (3000000 mm) |
| Storage Temperature | 5°F (-15°C) - 122°F (50°C) |
| USB | Yes |
| Serial Port | Yes |
| EPO Port | Yes |
| USB (HID Compliant) Port | Yes |
| Hot Swappable | Yes |
| Backup/Run Time (Half Load) | 8.50 Minute |
| Backup/Run Time (Full Load) | 2 Minute |
| Replaceable Battery | Yes |
| DC System Voltage | 192 V DC |
| Typical Battery Recharge Time | 6 Hour |
| Package Contents |
|
| Software Included | PowerAlert Software Suite |
| Certifications & Standards |
|
| Country of Origin | United States |
| Environmentally Friendly | Yes |
| Environmental Certification | RoHS |
| Product Type | Dual Conversion Online UPS |
| Manufacturer Part Number | SU6000RT4UHV |
| Manufacturer Website Address | http://www.tripplite.com |
| Manufacturer | Tripp Lite |
| Product Model | SU6000RT4UHV |
| Product Name | SmartOnline EZ SU6000RT4UHV 6000 VA Tower/Rack Mountable UPS |
| Product Line | SmartOnline |
| Product Series | EZ |
| Brand Name | Tripp Lite |
| Weight (Approximate) | 48.99 kg |
| Form Factor | Rack/Tower |
| Rack Height | 4U |
| Height | 6.85" (173.99 mm) |
| Width | 17.50" (444.50 mm) |
| Depth | 20.70" (525.78 mm) |
| Input Voltage | 230 V AC |
| Output Voltage | 240 V AC |
| 200 V AC | |
| 208 V AC | |
| Input Current | 31.90 A |
| Load Capacity | 6 kVA/5.40 kW |
| Surge Energy Rating | 2595 J |
| Waveform Type | Pure Sine Wave |
| Output Frequency | 50 Hz |
| Input Frequency | 50 Hz |
| Bypass Switch | Manual |
| Automatic | |
| Emergency Power OFF | Yes |
| Plug/Connector Type | NEMA L6-30P |
| Phase | Single Phase |
| Receptacle Type | NEMA L6-20R |
| NEMA L6-30R | |
| EMI/RFI Noise Filter | Yes |
| Energy Saving | High efficiency economy mode operation; Support for daily startup and shutoff; Schedulable daily hours of economy mode operation |
| Transfer Time | 0 ns |
| Receptacle Detail | 2 x NEMA L6-20R |
| 2 x NEMA L6-30R |
