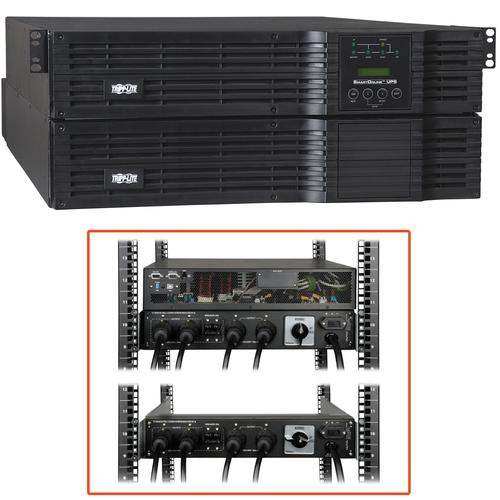

Tripp Lite SmartOnline SU8000RT4U 8000VA Tower/Rack Mountable UPS - 8000VA/5600W - 5 Minute Full Load - 2 x NEMA L6-30R, 2 x NEMA L6-20R, 4 x NEMA 5-15/20R

Tripp LiteSKU: PL5-SU8000RT4U-69541G-0037332136558-EN

Sale price$11,009.99


Tripp Lite SmartOnline SU8000RT4U 8000VA Tower/Rack Mountable UPS - 8000VA/5600W - 5 Minute Full Load - 2 x NEMA L6-30R, 2 x NEMA L6-20R, 4 x NEMA 5-15/20R

Tripp Lite 8kVA SmartOnline Hot-Swappable Modular Rack/Tower UPS offers 8000VA on-line, double-conversion UPS support for server, network and telecommunications equipment. Single all-in-one housing installs in 4 rack spaces (4U). Maintains full-time sine wave output within 3% of selectable 208/120 or 240/120V AC. Corrects brownouts and overvoltages from 65V to 140V (L-N). Converts raw input from AC to DC, then resynthesizes output power back to perfect sine wave AC output. Network management interfaces include combination DB9 RS-232 enabled and dry contact serial port, enhanced USB port and SNMPWEBCARD slot. HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X. Split phase 4 conductor hardwire input. UPS supported outlets include two L6-30R, two L6-20R and 4 low voltage 5-15/20R. Hardwire output is also supported.

  • 8000VA / 8kVA / 5600W on-line double-conversion UPS
  • 208/120V or 240/120V +/-3% output at 60Hz
  • Included maintenance bypass switch enables live replacement of UPS with zero downtime
  • 4U Rack/Tower compatible, Hot-swap power and battery modules
  • USB, RS232 & EPO ports, support for SNMP/WEB card options
  • Front panel LEDs with detailed LCD monitoring and control screen
  • Expandable runtime with optional external battery packs
  • Hardwire input (4 wire), L6-30R, L6-20R, 5-15/20R & Hardwire outputs
Network Management SNMP Manageable
Limited Warranty 2 Year
Serial Port Yes
Package Contents
  • SmartOnline SU8000RT4U 8000VA Tower/Rack Mountable UPS
  • 8kVA/8000VA UPS System in 4U housing
  • Detachable hardwire input/output and output receptacle PDU
  • 4 post rackmount installation brackets
Software Included Power Alert UPS monitoring software
Country of Origin China
Hot Swappable Yes
Backup/Run Time (Half Load) 12 Minute
Backup/Run Time (Full Load) 5 Minute
Typical Battery Recharge Time 6 Hour
Input Voltage 110 V AC
220 V AC
220 V AC
110 V AC
Output Voltage 240 V AC
Load Capacity 8 kVA/5.60 kW
Weight (Approximate) 80.29 kg
Form Factor Rack-mountable
Rack Height 4U
Height 7" (177.80 mm)
Width 17.50" (444.50 mm)
Depth 32.55" (826.77 mm)
Product Type Dual Conversion Online UPS
Manufacturer Part Number SU8000RT4U
Manufacturer Website Address
Manufacturer Tripp Lite
Product Model SU8000RT4U
Product Name SmartOnline SU8000RT4U 8000VA Tower/Rack Mountable UPS
Product Line SmartOnline
Brand Name Tripp Lite
Emergency Power OFF Yes
Plug/Connector Type Hardwired
Receptacle Type NEMA L6-20R
NEMA 5-15/20R
Receptacle Detail 2 x NEMA L6-30R
2 x NEMA L6-20R
4 x NEMA 5-15/20R
