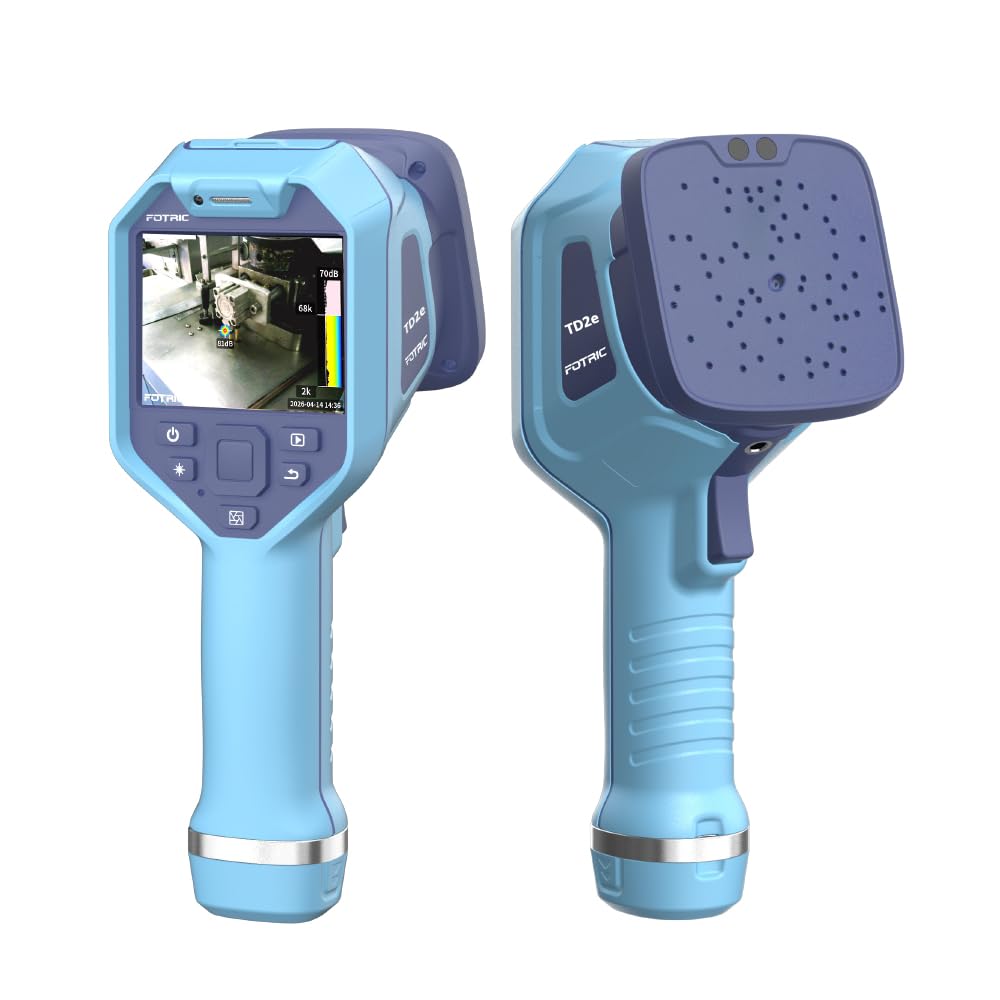

FOTRIC TD2e Acoustic Imaging Camera, 64 MEMS Microphones, 2–100kHz
Product Description

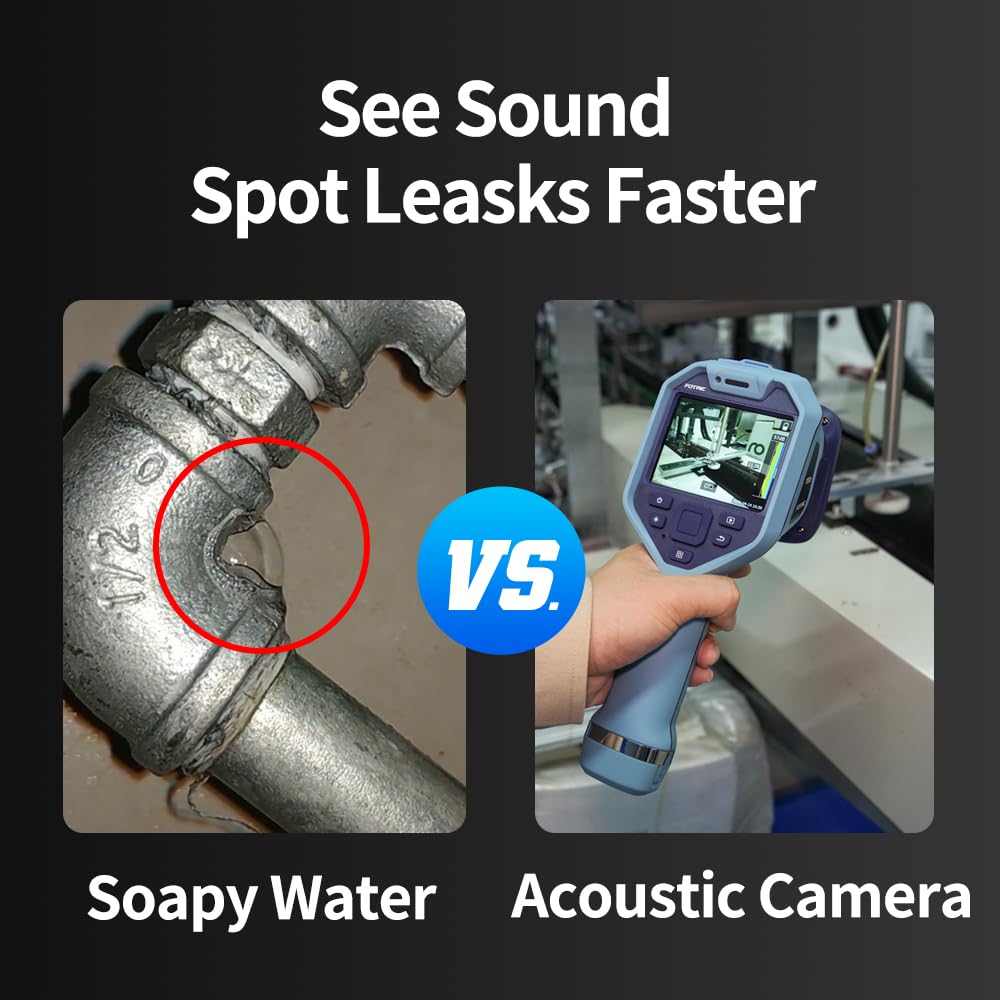

The FOTRIC TD2e Acoustic Imaging Camera is designed for locating compressed air leaks, vacuum leaks, pneumatic valve issues, abnormal vibrations, and other high-frequency sound sources. It uses a 64-MEMS digital microphone array with beamforming technology to visualize sound sources in real time and overlay acoustic information on 5MP optical images. With a 2kHz–100kHz frequency range, 3.5-inch touchscreen, noise reduction and micro-detection modes, and a rugged IP54-rated design, the TD2e is suited for industrial, HVAC, automotive, manufacturing, and maintenance inspections.
Specifications
Brand: FOTRIC
Model: TD2e
Type: Acoustic Imaging Camera

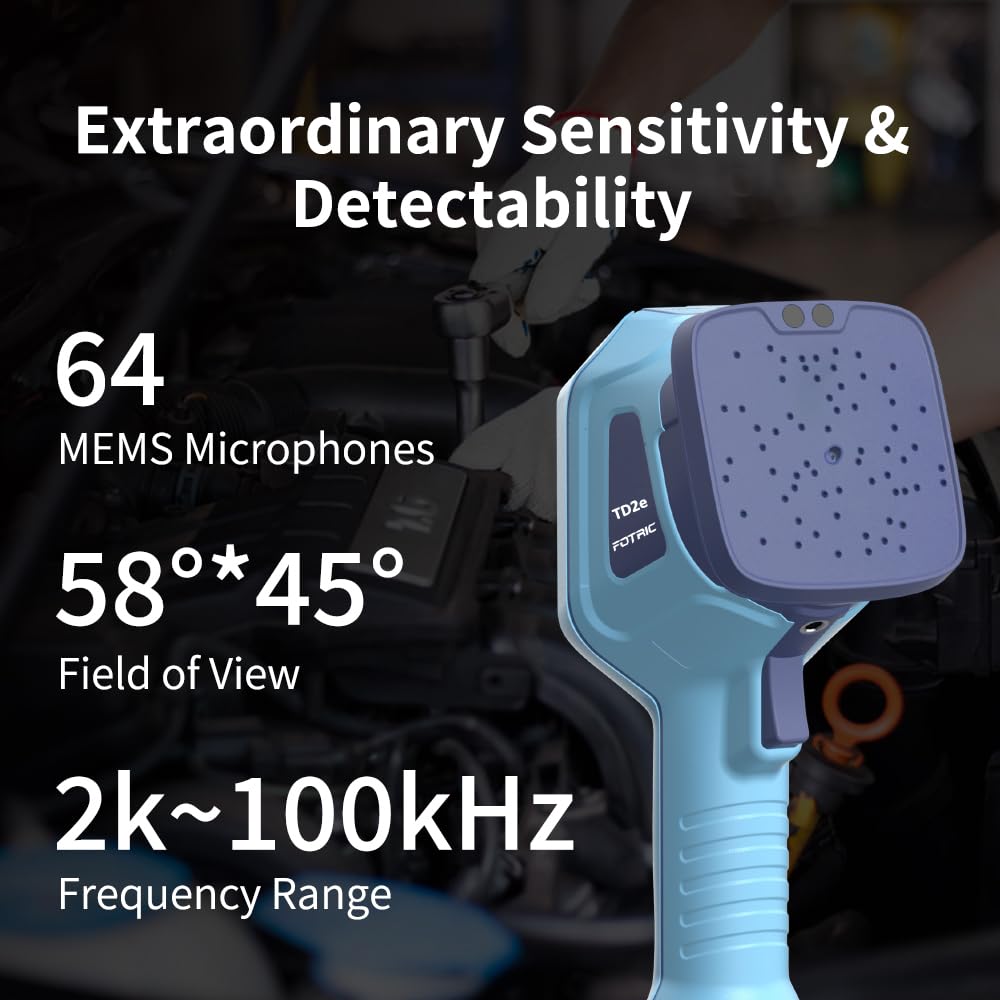

Microphones: 64 MEMS Digital Microphones
Frequency Range: 2kHz–100kHz
Digital Camera: 5MP
Display: 3.5-inch IPS touchscreen
Display Resolution: 640 × 480 pixels

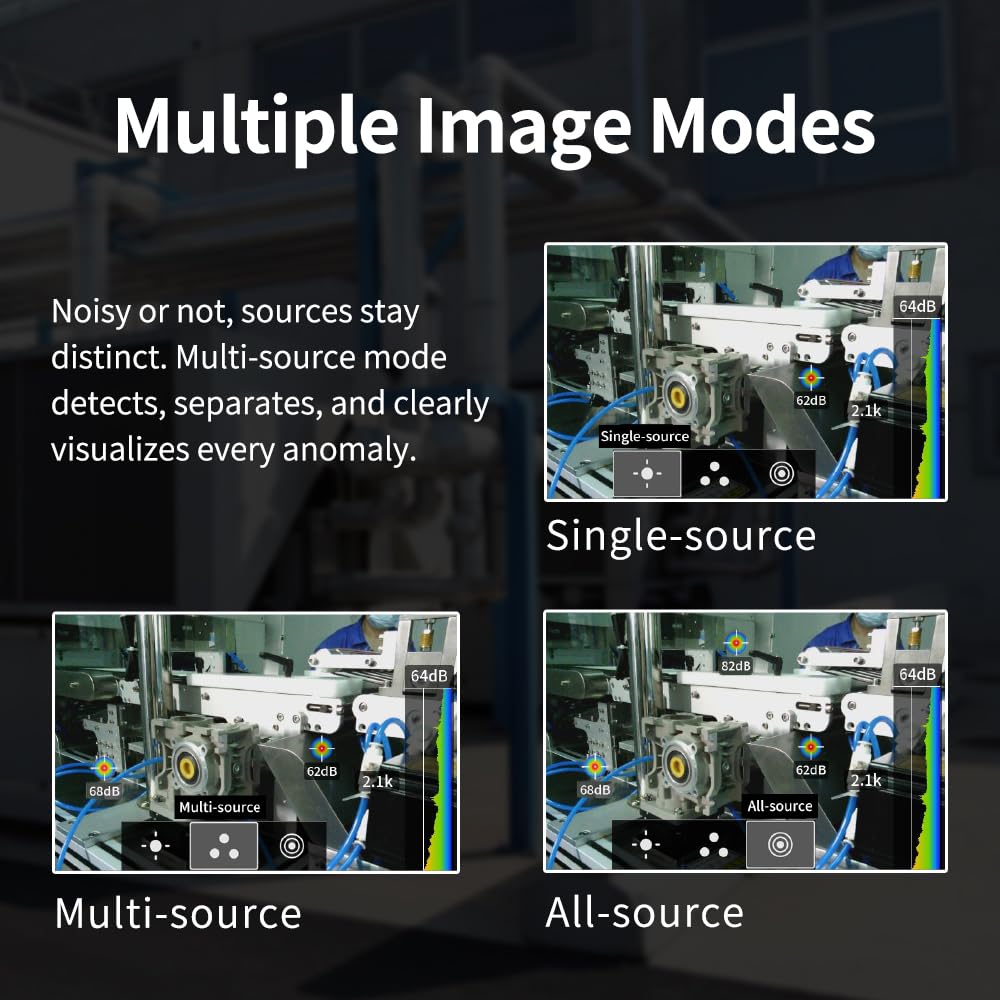

Image Modes: Single-source, Multi-source, All-source

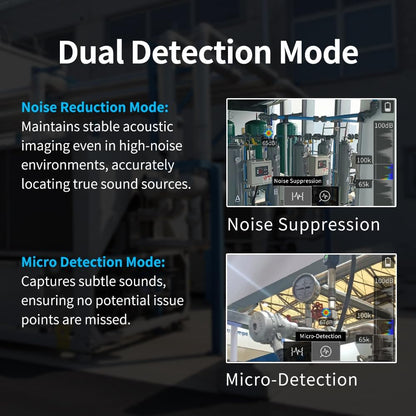

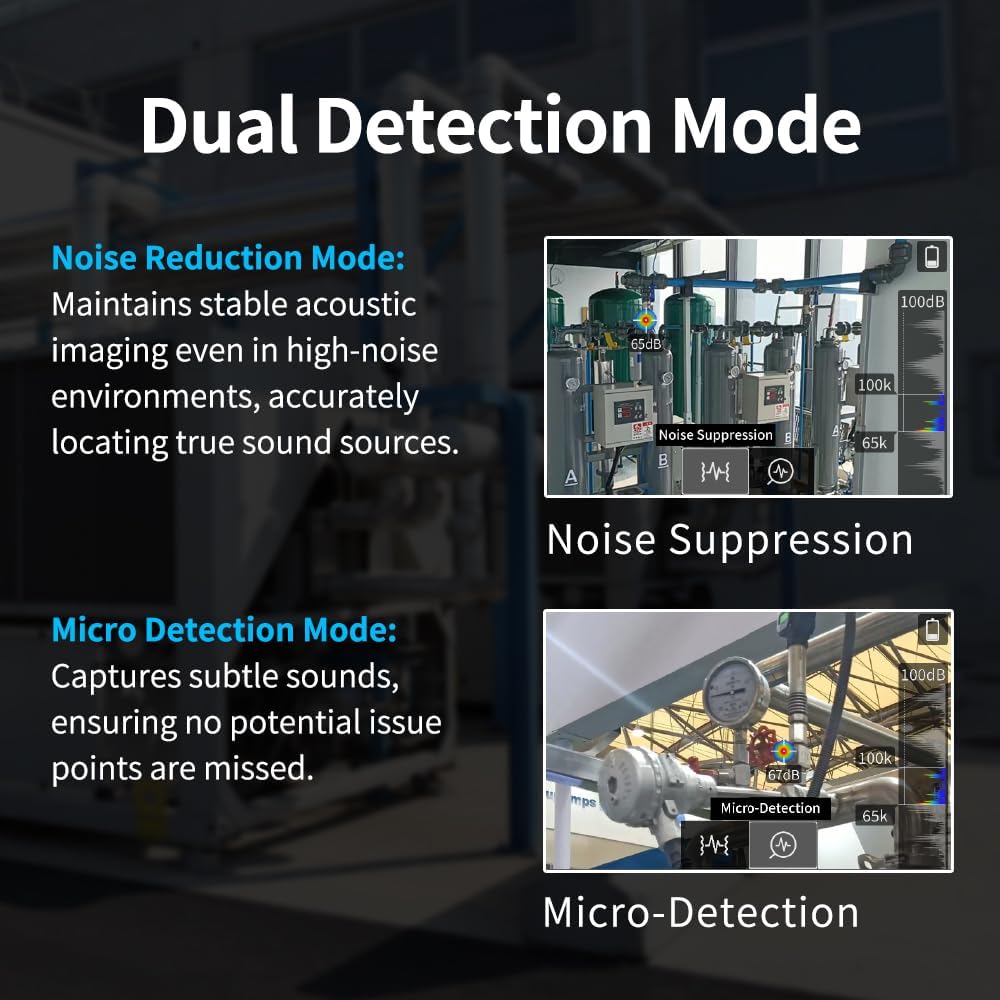

Detection Modes: Noise Reduction Mode, Micro-Detection Mode
Beamforming: Advanced beamforming algorithm
Measurement Accuracy: ±2%
Working Distance: 0.3–60m
Protection Rating: IP54
Drop Resistance: Up to 2m
Battery: 5000mAh rechargeable lithium-ion battery
Battery Runtime: 3+ hours
Charging Interface: USB Type-C
Battery Type: Lithium Ion
Item Weight: 780g
Parcel Dimensions: 32.99 × 20.5 × 13.41cm
Included Components: Body, battery, data cable, power adapter, charging dock, MicroSD card

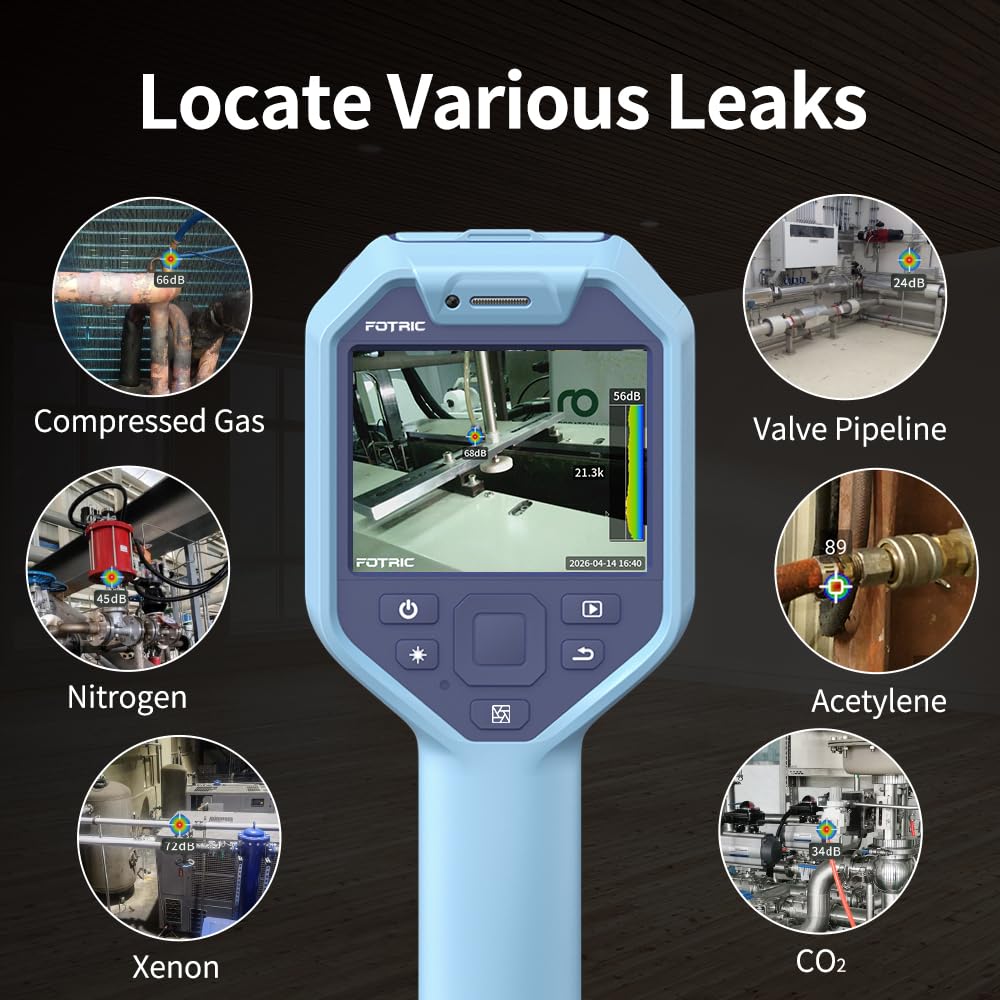

Applications: Compressed air leaks, vacuum leaks, pneumatic valve leaks, abnormal vibrations, loose joints, bearing-related vibration, automotive noise, HVAC inspection, appliance noise, and maintenance diagnostics
FAQ
What does the FOTRIC TD2e detect?
It can locate compressed air, vacuum, pneumatic valve and pressurized gas leaks, as well as abnormal high-frequency vibrations.
What frequency range does it support?
The TD2e supports a 2kHz–100kHz positioning frequency range.
How many microphones does it have?
It uses 64 MEMS digital microphones.
What is the screen size?
It features a 3.5-inch IPS touchscreen with 640 × 480 resolution.
Does it have an optical camera?
Yes. It includes a 5MP industrial-grade digital camera for visual reference.
How long does the battery last?
The listed operating time is 3+ hours of continuous operation.
Is the TD2e water resistant?
It has an IP54 protection rating for use in demanding inspection environments.
What image modes are available?
Single-source, multi-source, and all-source imaging modes are supported.
