USB C Dock - 4K 60Hz Quad Monitor DisplayPort & HDMI - Universal USB-C Docking Station with 100W Power Delivery - USB Hub with 1x USB Type-C & 3x USB-A, Ethernet, Audio
USB C Dock - 4K 60Hz Quad Monitor DisplayPort & HDMI - Universal USB-C Docking Station with 100W Power Delivery - USB Hub with 1x USB Type-C & 3x USB-A, Ethernet, Audio
- QUAD MONITOR USB-C DOCK: USB Type-C dock supports up to four (4K 60Hz) monitors, including quad, triple or dual extended displays, using any combo of 4x DisplayPort (DP) and/or 4x HDMI 2.0 outputs or Dual 5K 60Hz (2x DP per display); 100W Power Delivery
- COMPATIBILITY: Supports Windows, macOS, ChromeOS, Linux and hardware platforms including Intel, AMD and the Apple M-Series, enabling four external displays even on laptops that natively only support one; Driver installation required on Windows and macOS
- INCREASE PRODUCTIVITY: DisplayLink Certified dock with 4-port USB hub includes 3x USB-A 5Gbps (1x fast-charge 1.5A), 1x USB-C up to 10Gbps (15W 3A smartphone/tablet charging) port, Gigabit Ethernet (PXE Boot & WoL), and a 3.5mm TRRS audio headset/mic jack

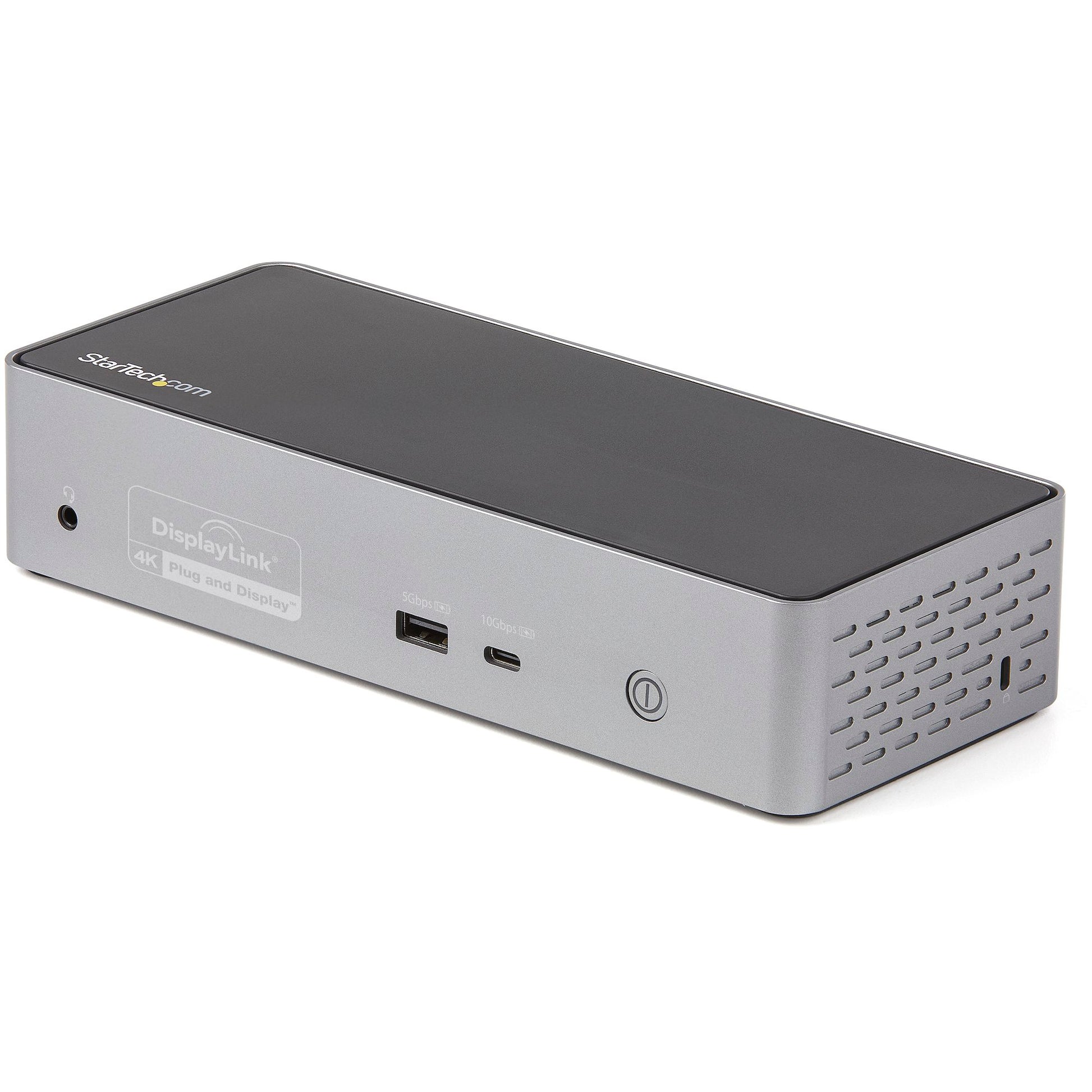

- EASY SETUP & MANAGEMENT: Quadruple display docking station with 3.3ft (1m) USB-C host cable (USB-IF certified), front On/Off button, K-slot & mounting holes, ; optimized ventilation for enhanced cooling
-
OUR ADVANTAGE: Included connectivity tools for IT Pro's and IT help-desk support teams with Network MAC Address Pass-Through for network security, WiFi Auto Switching for improved network performance, USB Event Monitoring, and Windows Layout
Specifications:
- Warranty: 1 Years
- Package Quantity: 1
Connector(s):
-
Connector Type(s):
- 1 - Barrel Power Connector (CP (OD:7.4/ID:5.1/CPD:0.6))
- 2 - USB 3.2 Type-A (9 pin, Gen 1, 5Gbps)
- 1 - USB 3.2 Type-A with BC 1.2 (9 pin, Gen 1, 5Gbps, 7.5W Power)
- 1 - USB 3.2 Gen 2 USB Type-C (Fast-Charge, 24 Pin, 10 Gbps)
- 4 - DisplayPort
- 4 - HDMI
- 1 - Ethernet Gigabit
- 1 - 3.5 mm Mini-Jack (4 Position)
Host Connectors:
- 1 - USB 3.2 Type-C (24 pin, Gen 2, 10Gbps)
Environmental:
- Operating Temperature: 0 to 50°C
- Storage Temperature: -20 to 70°C
- Humidity: 0% to 95% (non-condensing) at 25°C
Hardware:
- 4K Support: Yes
- Fast-Charge Port(s): Yes
- Displays Supported: 4
- Ports: 16
- Audio: Yes
- Interface: USB 3.2 Gen 2
- Bus Type: USB 3.2 Gen 1, USB 3.2 Gen 2
- Compatible Lock Slot: Kensington Standard Slot (K-Slot)
-
Chipset ID:
- DisplayLink - DL6910
- Realtek - RTS5423
- Realtek - RTS5411T
- Realtek - RTL8153
-
Indicators:
- 1 - Power On/Off LED Indicator
Packaging Information:
- Shipping Weight: 3.1 lb (1.4 kg)
-
Package Dimensions:
- Height: 4.0 in (10.1 cm)
- Length: 5.9 in (14.9 cm)
- Width: 9.3 in (23.5 cm)
Performance:
- Wake On Lan: Yes
-
Maximum Digital Resolutions:
- 3840 x 2160p @ 60Hz
- 5120 × 2880 (with 2x DP Connection)
-
Supported Charging Outputs:
- BC 1.2 (1.5A)
- USB-C (15W)
- PXE: Yes
Physical Characteristics:
- Weight of Product: 11.6 oz (330.0 g)
- Color: Black & Space Gray
- Material: Plastic
-
Product Dimensions:
- Height: 1.8 in (4.6 cm)
- Length: 8.5 in (21.5 cm)
- Width: 3.5 in (9.0 cm)
Power:
- Power Source: AC Adapter Included
- Power Delivery: 100W
- Laptop Charging via Power Delivery: 100W
- Input Voltage: 110V-240V AC
- Output Voltage: 20V DC
- Output Current: 8.5A
- Plug Type: CP (7.4mm OD, 5.1mm ID)
Software Compatibility:
-
OS Compatibility:
- Windows 10, 11, 11 ARM (64 bit)
- Mac OS 10.14-15.0
- Chrome OS 61.x
Special Notes / Requirements:
-
System and Cable Requirements:
- A host laptop with an available USB-C port (to ensure full adapter functionality, the host USB-C port must support USB Power Delivery)
-
Note:
- Not all USB-C ports support the full functionality of the USB Type-C standard. Ensure that your host USB-C port supports USB Power Delivery.
What's in the Box:
- 1 - Docking Station
- 1 - Host Cable (1m)
- 1 - Universal Power Adapter
- 1 - Power Adapter Cords (NA/JP)
- 1 - User Manual
