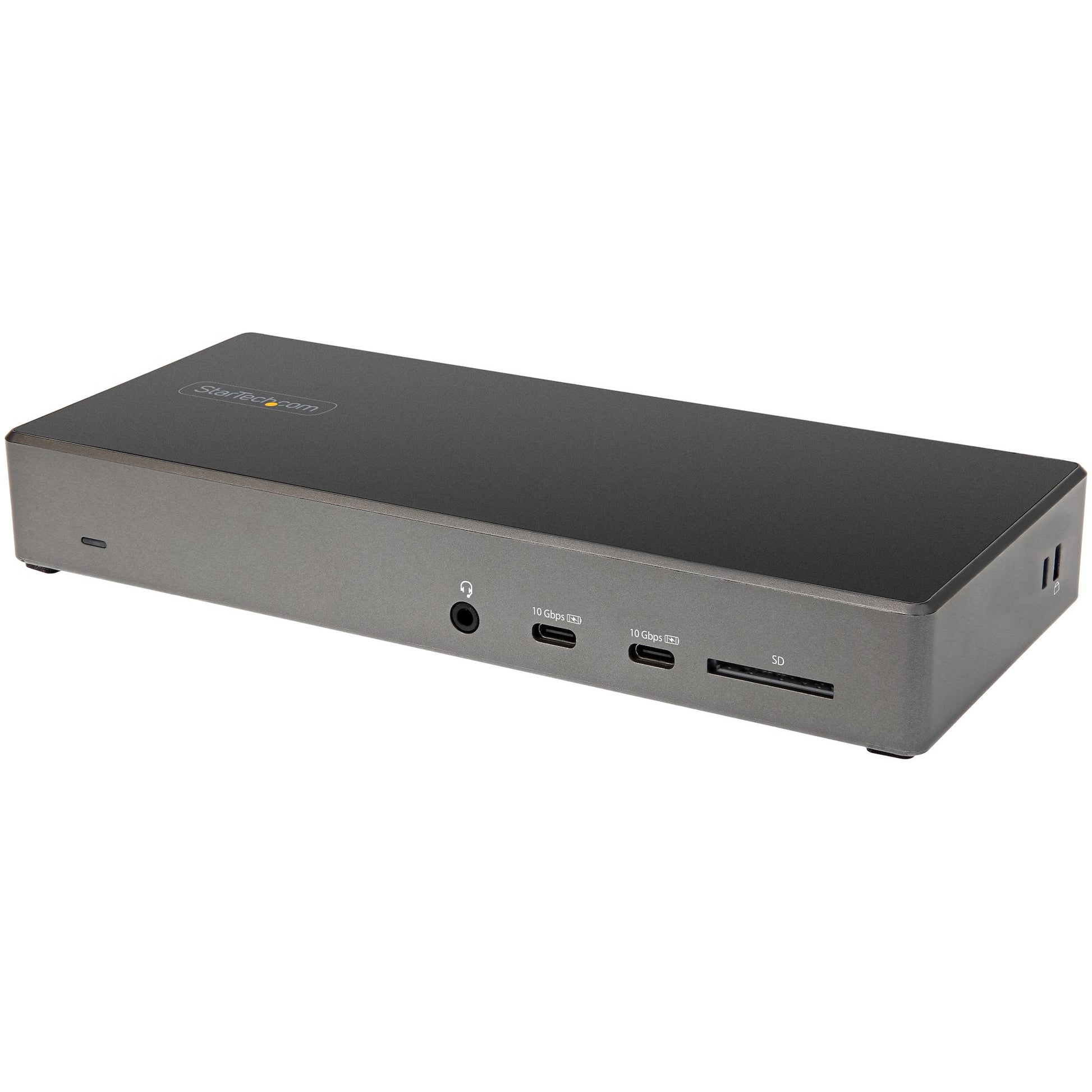

USB C Dock - Triple 4K Monitor USB Type-C Docking Station - 100W Power Delivery - DP 1.4 Alt Mode & DSC, 2x DisplayPort 1.4/HDMI 2.0 - 6xUSB (2x 10Gbps), SD - Windows/Chrome
USB C Dock - Triple 4K Monitor USB Type-C Docking Station - 100W Power Delivery - DP 1.4 Alt Mode & DSC, 2x DisplayPort 1.4/HDMI 2.0 - 6xUSB (2x 10Gbps), SD - Windows/Chrome

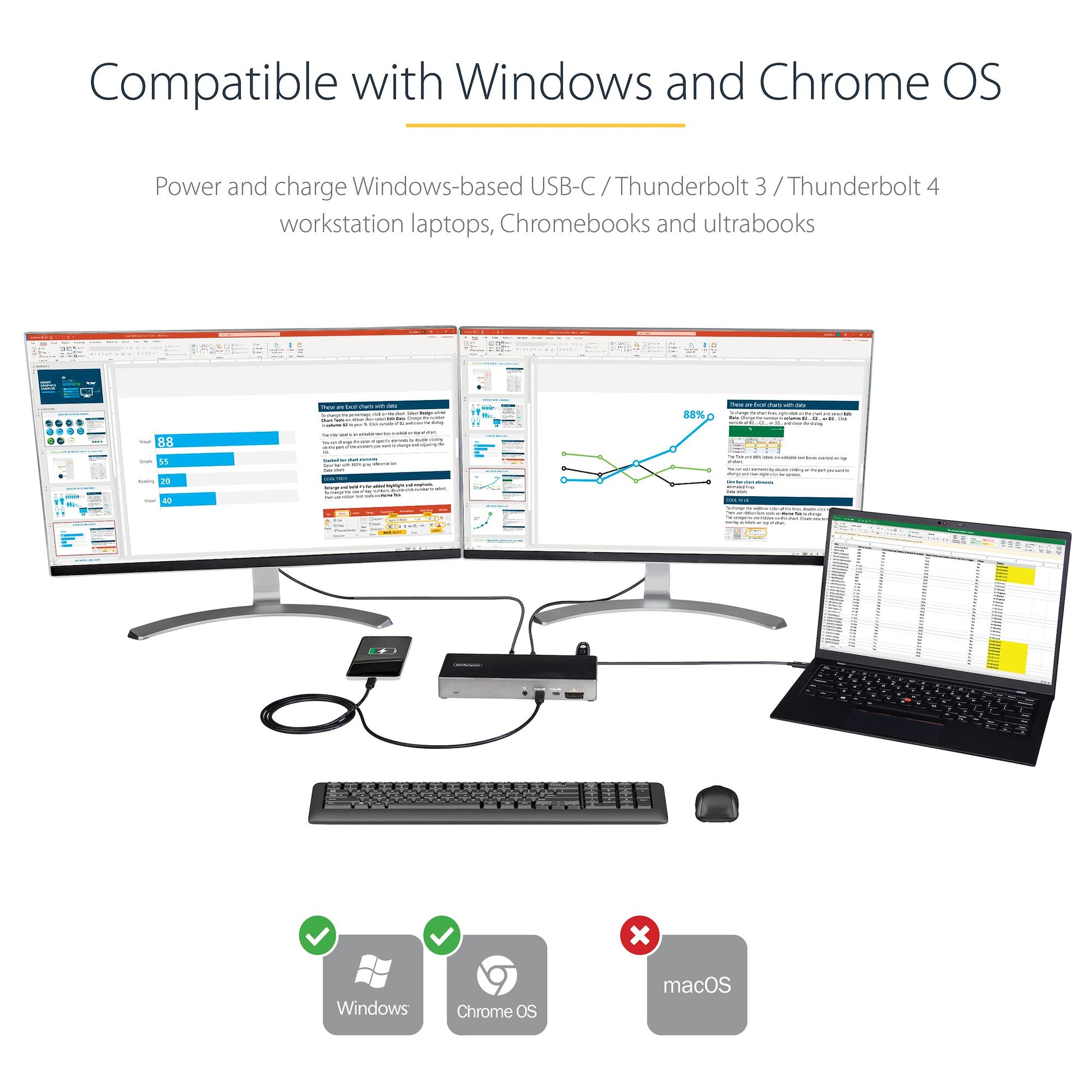

This USB-C Gen 2 10Gbps docking station turns your USB-C ® or Thunderbolt™ 3 Windows laptop or Chromebook into a powerful workstation. A USB 3.2 Gen 2 Type-C dock features everything you need, from triple video outputs up to 4K 60Hz to 10Gbps USB-C & USB-A downstream peripheral ports to 100W Power Delivery.
Specifications:
- Warranty: 1 Years
- Package Quantity: 1
Connector(s):
-
External Ports:
- 2 - USB Type-C (Fast-Charge, 24 pin) USB 3.2
- 2 - USB 3.2 Type-A (9 pin, Gen 1, 5Gbps)
- 2 - USB 2.0 Type-A (4 pin, 480Mbps)
- 2 - DisplayPort
- 1 - HDMI
- 1 - SD / MMC Slot
- 1 - RJ-45
- 1 - 3.5 mm Stereo Audio
- 2 - Security Lock Slot
-
Host Connectors:
- 1 - USB 3.2 USB Type C (10 pin, Gen 2, 10 Gbps)
Environmental:
- Operating Temperature: 0°C to 50°C
- Storage Temperature: -20°C to 70°C
- Humidity: 0% to 95% (non-condensing) at 25°C
Hardware:
-
Displays Supported: 3
-
4K Support: Yes
-
Fast-Charge Port(s): Yes
-
Audio: Yes
-
Interface: USB 3.2 Gen 2 - 10 Gbit/s
-
Bus Type: USB 3.2 Gen 2 10Gbps
-
Compatible Lock Slot: Kensington Mini Slot / Standard Slot
-
Industry Standards:
- 1 Gigabit connectivity to any 1000Base-T device (IEEE802.3ab compliant)
- 100 Megabit connectivity to any 100Base-TX device (IEEE802.3u compliant)
- 10 Megabit connectivity to any 10Base-T device (IEEE802.3i compliant)
-
Chipset ID:
- Cypress - CYPD3125
- Cypress - CYPD4236
- Synaptics - VMM5320BJG-R
- Genesys - GL850
- Genesys - GL3523
- Genesys - GL3590
- Genesys - GL3232S
- TI - TUSB1064RNQR
- Realtek - RTL8153B
- Realtek - ALC4030U
-
Indicators:
- 1 - White On: Power
- 1 - Yellow On: Link Detected
- 1 - Yellow Flashing: Activity
- 1 - Green On: 1Gbps
- 1 - Yellow On: 100Mbps
Packaging Information:
- Shipping Weight: 2.9 lb (1.3 kg)
-
Package Dimensions:
- Height: 3.6 in (9.1 cm)
- Length: 5.7 in (14.6 cm)
- Width: 9.3 in (23.5 cm)
Performance:
-
Maximum Digital Resolutions:
-
Triple Display:
- 4096 x 2160 30Hz (DisplayPort 1.4 HBR3 with DSC)
- 1920 x 1080 60Hz (DisplayPort 1.4 HBR3 without DSC)
- 1600 x 900 60Hz (DisplayPort 1.2 HBR2)
-
Dual Display:
- 4096 x 2160 60Hz (DisplayPort 1.4 HBR3 with DSC)
- 2560 x 1440 60Hz (DisplayPort 1.4 HBR3 without DSC)
- 1920 x 1080 60Hz (DisplayPort 1.2 HBR2)
-
Single Display:
- 4096 x 2160 60Hz (DisplayPort 1.4 HBR3 with DSC)
- 3840 x 2160 60Hz (DisplayPort 1.4 HBR3 without DSC)
- 3840 x 2160 30Hz (DisplayPort 1.2 HBR2)
-
-
GPU Capabilities:
- A laptop with a discrete video card is recommended for dual 4K 60Hz or triple 4K 30Hz display configurations. Must also support DP 1.4 Alt-Mode HBR3 w/ DSC. Please verify the maximum number of displays supported by your GPU. Some GPU chips (such as Intel HD Graphics) may support a maximum of three displays (the laptop screen may be disabled when connected to three monitors).
Audio Specifications:
- Audio: Analog Stereo - 2 Channel Audio
Memory Media Type:
- SD/MMC (Secure Digital/Multimedia Card)
Networking:
- PXE Support: Yes
- MTBF (Mean Time Between Failures): 215,990 hours
Physical Characteristics:
- Color: Black & Space Gray
-
Product Dimensions:
- Height: 1.2 in (3.0 cm)
- Length: 8.3 in (21.0 cm)
- Width: 3.5 in (9.0 cm)
- Weight of Product: 10.6 oz (300.0 g)
- Cable Length: 3.3 ft (1 m)
Power:
- Power Source: AC Adapter Included
- Power Delivery: 100W
- Input Voltage: 100 - 240 AC
- Input Current: 2.5A
- Output Voltage: 20V DC
- Output Current: 8.5A
- Plug Type: CP (OD: 7.4/ID: 5.1/CPD: 0.6)
- Power Consumption (In Watts): 170W
Software Compatibility:
-
OS Compatibility:
- Windows 10, 11, 11 ARM
- Windows 8.1
- Chrome OS 78.x
Special Notes / Requirements:
-
System and Cable Requirements:
- A Windows-based laptop with an available USB-C port (to ensure full adapter functionality, the host USB-C port must support USB-C Power Delivery and DP Alt Mode).
-
Note:
- Ensure your laptop's drivers, firmware, and operating system are up to date prior to using the docking station. For a multi-monitor configuration, the Windows laptop must support MST (Multi-Stream Transport).

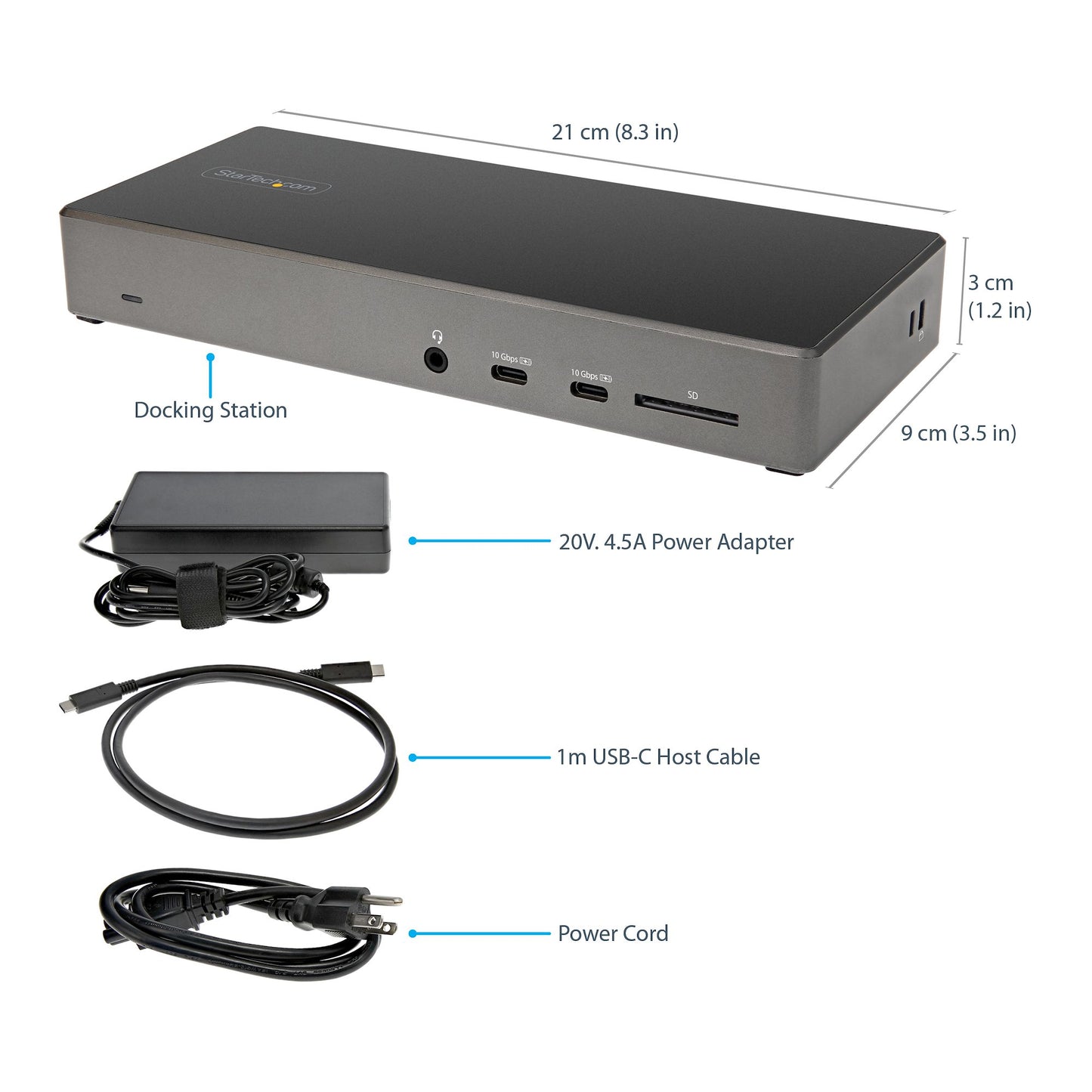

What's in the Box:
- 1 - USB-C Dock
- 2 - Power Cable (NA/JP & ANZ)
- 1 - USB-C Cable (1 m)
- 1 - Quick-Start Guide
- 1 - Power Adapter
