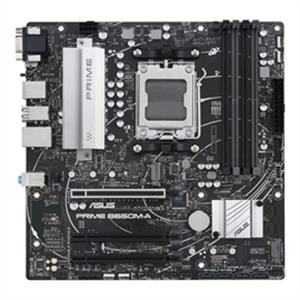

ASUS Motherboard PRIME B650M-A-CSM B650 AMD AM5 Max.128GB DDR5 Micro-ATX
ASUS Motherboard PRIME B650M-A-CSM B650 AMD AM5 Max.128GB DDR5 Micro-ATX
• AMD AM5 Socket: Ready for AMD Ryzen™ 7000 Series Desktop Processors
• Ultrafast Connectivity: M.2 PCIe 5.0, Realtek 2.5Gb Ethernet, USB 3.2 Gen 2 ports, front USB 3.2 Gen 1 Type-C®
• ASUS OptiMem II: Careful routing of traces and vias, plus ground layer optimizations to preserve signal integrity for improved memory overclocking
• Comprehensive Cooling: VRM heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+
• Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware
• ASUS Control Center Express (ACCE) for easier IT endpoint management
PRIME B650M-A-CSM
ASUS Prime series motherboards are expertly engineered to unleash the full potential of AMD Ryzen 7000-series processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME B650M-A-CSM provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features.
ASUS Corporate Stable Model
ASUS Corporate Stable Model (CSM) is a commercial program designed to provide stable and reliable motherboards. Offering up to 36-month product lifecycle support and 6-month end-of-life notice to allow sufficient lead times for your organization to get ready for product transitions. Each purchase of an ASUS CSM motherboard comes with ASUS Control Center Express - server-grade IT management software.
* Lifecycle support, program offering and supply status may vary by region. Please consult your local sales representative for more information.
Detail Specifications
| CPU AMD Socket AM5 for AMD RyzenTM 7000 Series Desktop ProcessorsNote Note: Refer to www.asus.com for CPU support list. |
| Chipset AMD B650 Chipset |
| Memory 4 x DIMM, Max. 128GB, DDR5 5600(OC)/5400(OC)/5200/5000/4800, ECC and Non-ECC, Un-buffered MemoryNote Dual Channel Memory Architecture Supports AMD Extended Profiles for Overclocking (EXPOTM) OptiMem II Note: Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list. Note: Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function. |
| Graphics 1 x DisplayPortNote2 1 x VGA port 1 x HDMI portNote3 Note1: Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications. Note2: Supports max. 8K at 60Hz as specified in DisplayPort 1.4. Note3: Supports 4K at 60Hz as specified in HDMI 2.1. |
| Expansion Slots AMD RyzenTM 7000 Series Desktop Processors 1 x PCIe 4.0 x16 slot (supports x16 mode) AMD B650 Chipset 2 x PCIe 4.0 x16 slots (support x1 mode) Note: Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/). |
| Storage Total supports 2 x M.2 slots and 4 x SATA 6Gb/s portsNote AMD RyzenTM 7000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) AMD B650 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports Note: AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10. |
| Ethernet 1 x Realtek 2.5Gb Ethernet |
| USB Rear USB (Total 8 ports) 2 x USB 3.2 Gen 2 ports (2 x Type-A) 2 x USB 3.2 Gen 1 ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 7 ports) 1 x USB 3.2 Gen 1 connector (supports USB Type-C) 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports |
| Audio Realtek 7.1 Surround Sound High Definition Audio CODECNote - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers Note: A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. |
| Back Panel I/O Ports 2 x USB 3.2 Gen 2 ports (2 x Type-A) 2 x USB 3.2 Gen 1 ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 1 x DisplayPort 1 x VGA port 1 x HDMI port 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks 1 x BIOS FlashBackTM button 1 x PS/2 Keyboard/Mouse combo port |
| Internal I/O Connectors Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 3 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 connector (supports USB Type-C ) 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x Speaker header 1 x SPI TPM header (14-1pin) 1 x 10-1 pin System Panel header |
| Special Features ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage Protection - Safeslot Core+ - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-LED Core - Q-Slot ASUS Thermal Solution - VRM heatsink design ASUS EZ DIY - BIOS FlashBackTM button - BIOS FlashBackTM LED Aura Sync - Aura RGB header - Addressable Gen 2 headers |
| Software Features ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 2+ - Power Saving AI Suite 3 - TurboV EVO - DIGI+ VRM - PC Cleaner ASUS CPU-Z IT Management software supported Norton Anti-virus software (Free Trial version) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode |
| BIOS 256 Mb Flash ROM, UEFI AMI BIOS |
| Manageability WOL by PME, PXE |

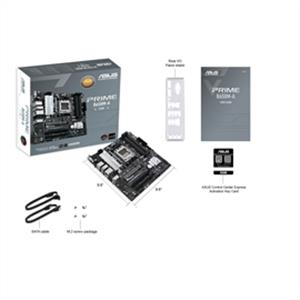

| Accessories Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x I/O Shield 1 x Screw Package for M.2 SSD Documentation 1 x ACC Express Activation Key Card 1 x User guide |
| Operating System Windows 11, Windows 10 64-bit |
| Form Factor mATX Form Factor 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm ) |
| Item Dimension (L inchxW inchxH inch) 11 x 11 x 3 Weight 3.00 lb Warranty Information 1 Years |
