Description
Marketing Information
Micro-ATX B760 business motherboard with enhanced security, reliability and manageability and serviceability
Intel® LGA 1700 socket: Ready for 13th Gen Intel Core™ processors
ASUS CSM program: A stable motherboard supply, end-of-life notifications, and IT software for business motherboards
ASUS Control Center Express: Integrated IT monitoring and management software that simplifies enterprise-level system administration
Enhanced system security: Boot defender with NIST SP800-193 compliance, a self-recovering BIOS, and TPM to safeguard PCs
Consistent and reliable performance: High-quality components and rigorous testing to help ensure durability in harsh environments
Efficient management and customization: An event log and commercial BIOS kit to enable easy maintenance
Better serviceability: Q-LED Core diagnostic display and COM debug header to facilitate building and support processes
Ultrafast connectivity: PCIe 4.0, DDR5, front USB 3.2 Gen 1 Type-C®
Pro
ASUS Pro business motherboards provide enhanced features to smooth your IT operations, including comprehensive system protection, 24/7 stability and reliability and an improved management suite for easier customization. Known as the world's biggest and best-known motherboard brand, ASUS provides world-class after-sales service and guaranteed long-term availability to maximize your investment over the product life cycle and offers a high-quality, TCO-optimized solution for your business computing-needs.
Intel® LGA 1700 socket: Ready for 13th Gen Intel Core™ processors
ASUS CSM program: A stable motherboard supply, end-of-life notifications, and IT software for business motherboards
ASUS Control Center Express: Integrated IT monitoring and management software that simplifies enterprise-level system administration
Enhanced system security: Boot defender with NIST SP800-193 compliance, a self-recovering BIOS, and TPM to safeguard PCs
Consistent and reliable performance: High-quality components and rigorous testing to help ensure durability in harsh environments
Efficient management and customization: An event log and commercial BIOS kit to enable easy maintenance
Better serviceability: Q-LED Core diagnostic display and COM debug header to facilitate building and support processes
Ultrafast connectivity: PCIe 4.0, DDR5, front USB 3.2 Gen 1 Type-C®
Pro
ASUS Pro business motherboards provide enhanced features to smooth your IT operations, including comprehensive system protection, 24/7 stability and reliability and an improved management suite for easier customization. Known as the world's biggest and best-known motherboard brand, ASUS provides world-class after-sales service and guaranteed long-term availability to maximize your investment over the product life cycle and offers a high-quality, TCO-optimized solution for your business computing-needs.
Detail Specifications

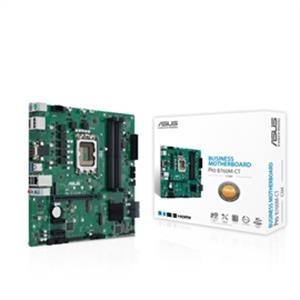

Model Pro B760M-CT-CSM |
CPU Intel Socket LGA1700 for 13th Gen Intel Core Processors and 12th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 Refer to www.asus.com for CPU support list. Intel Turbo Boost Max Technology 3.0 support depends on the CPU types. |
Chipset Intel B760 Chipset |
Memory 4 x DIMM, Max. 192GB, DDR5 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800 Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) Optimem II Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/ Non-ECC, un-buffered DDR5 memory supports On-Die ECC function. |
Graphics 2 x DisplayPort 1 x VGA port 1 x HDMI port Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. Support max. 4K at 60Hz as specified in DisplayPort 1.4. Supports 4K at 60Hz as specified in HDMI 2.1. |
Expansion Slots Intel 13th and 12th Gen Processors 1 x PCIe 4.0/3.0 x16 slot Intel B760 Chipset 2 x PCIe 3.0 x1 slots Note: To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals. |
Storage Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports Intel 13th and 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel B760 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports Intel Rapid Storage Technology supports SATA RAID 0/1/5/10. |
Ethernet 1 x Intel 1Gb Ethernet ASUS LANGuard |
Wireless and Bluetooth M.2 slot only (Key E, CNVi and PCIe) Wi-Fi module is sold separately. |
USB Rear USB (Total 4 ports) 2 x USB 3.2 Gen 1 ports (2 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 7 ports) 1 x USB 3.2 Gen 1 connector (suppports USB Type-C) 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports |
Audio Realtek 7.1 Surround Sound High Definition Audio CODEC - Supports: Jack-detection, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. |
Back Panel I/O Ports 2 x USB 3.2 Gen 1 ports (2 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 2 x DisplayPorts 1 x HDMI port 1 x VGA port 1 x Intel 1Gb Ethernet port 3 x Audio jacks 1 x PS/2 keyboard (purple) port 1 x PS/2 mouse (green) port |
Internal I/O Connectors Fan and Cooling related 1 x 4-pin CPU Fan header 2 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 connector (suppports USB Type-C) 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 1 x Clear CMOS header 1 x Chassis Intrude header 2 x COM Port headers 1 x Front Panel Audio header (AAFP) 1 x COM debug header 1 x LPT header 1 x Mono-out header (with Amp IC) 1 x M.2 slot (Key E) 1 x SMBUS header 1 x Speaker header 1 x 10-1 pin System Panel header |
Special Features ASUS Q-Design - Q-DIMM - Q-LED Core - Q-Slot ASUS EZ DIY - Box Headers Bespoke Motherboard Design and Business Focused Features - ASUS Boot Defender - ASUS Self Recovering BIOS - ASUS Event Log - ASUS Commercial BIOS kit - Anti-Moisture Coating - 24/7 Reliability - Overcurrent Protection Please contact with local FAE for commercial BIOS kit. TPM 2.0 IC onboard |
Software Features ASUS Exclusive Software IT Management software supported - ASUS Control Center Express (ACCE) |
BIOS 128Mb Flash ROM |
Manageability WOL by PME, PXE |
Accessories Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x I/O Shield 1 x Screw package for M.2 SSD 1 x Screw package for M.2 Key E Documentation 1 x ACC Express Activation Key Card 1 x User guide |
Operating System Windows 11, Windows 10 64-bit |
Form Factor mATX Form Factor 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm) |
Item Dimension (L"xW"xH") 11 x 11 x 3 Weight 3 lbs Warranty Information 1 Years |
