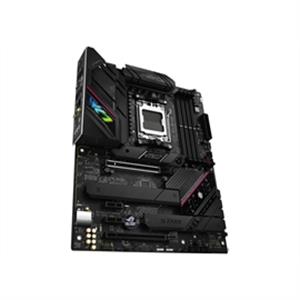

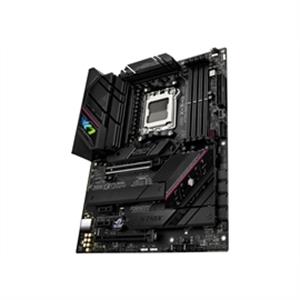

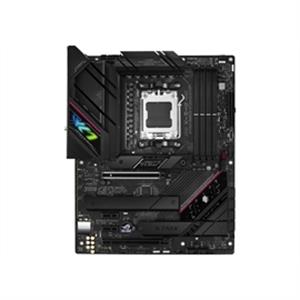

ASUS Motherboard ROG STRIX B650E-F GA WIFI AMD B650 AM5 Max128GB DDR5 ATX

Save 29%
ASUSSKU: PL9-268032
filler

Price:
Sale price$499.99 Regular price$699.99

Description

Marketing Information
ROG STRIX B650E-F GAMING WIFI
This mean machine is the heart of your next hot rod. With the stunning speed of PCIe 5.0 and WiFi 6E, hearty cooling from onboard heasinks, and advanced power design engineered for the latest Ryzen™ processors, the ROG Strix B650E-F leaves its competition in the dust.
DIY-FRIENDLY FEATURES
PCIE® SLOT Q-RELEASE

A physical button unlocks the first PCIe slot’s security latch with one press, greatly simplifying the process of detaching a PCIe card from the motherboard when it’s time to upgrade to a new GPU or other compatible device.
M.2 Q-LATCH
The innovative Q-Latch makes it easy to install or remove an SSD from an M.2 slot. The design employs a simple locking mechanism to secure the drive, eliminating the need for a traditional screw.
BIOS FLASHBACK™
BIOS FlashBack™ is a safe and simple way to update BIOS. Just drop the (UEFI) BIOS file onto a FAT32-formatted USB stick, plug it into the USB BIOS FlashBack port, and press the button. Updates can even be performed without having memory or a CPU installed.
Q-LED
Four onboard LEDs indicate power status and identify problems with CPU, memory, graphics card, or boot device for quick diagnosis.



Detail Specifications
CPU
AMD Socket AM5 for AMD Ryzen 9000, 8000 and 7000 Series Desktop Processors
Refer to www.asus.com for CPU support list.
Chipset
AMD B650
Memory
4 x DIMM, Max. 192GB, DDR5 8000+(OC)/7800(OC)/7600(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC and Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports AMD EXTended Profiles for Overclocking (EXPO)
OptiMem II
Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.
Graphics
1 x DisplayPort
1 x HDMI port
Supports max. 8K at 60Hz as specified in DisplayPort 1.4.
Supports 4K at 60Hz as specified in HDMI 2.1.
Expansion Slots
AMD Ryzen 7000 Series Desktop Processors
1 x PCIe 5.0 x16 slot
AMD B650 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
2 x PCIe 4.0/3.0 x1 slots
PCIe 4.0 x16 slot (supports x4 mode) from AMD B650 Chipset shares bandwidth with M.2_3.
Storage
Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports
AMD Ryzen 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280(supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
AMD B650 Chipset
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s port
AMD RAID Xpert Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10.
M.2_3 slot shares bandwidth with PCIe 4.0 x16 slot (supports x4 mode) When M.2_3 slot is operating in PCIe mode, M.2_3 will be disabled.
Ethernet
1 x Intel 2.5Gb Ethernet
ASUS LANGuard
Wireless and Bluetooth
Wi-Fi 6E
2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
Supports 2.4/5GHz frequency band
Bluetooth v5.2
Wi-Fi 6E 6GHz regulatory may vary between countries, and function will be ready in Windows 11 or later.
USB
Rear USB (Total 12 ports)
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)

3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-C)
4 x USB 3.2 Gen 1 port (4 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
Front USB (Total 7 ports)
1 x USB 3.2 Gen 2 connector (supports USB Type-C)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers supports additional 4 USB 2.0 ports
Audio
ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
- Impedance sense for front and rear headphone outputs
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
- Supports up to 32-Bit/384 kHz playback
Audio Features
- SupremeFX Shielding Technology
- Savitech SV3H712 AMP
- Rear optical S/PDIF out port
- Premium audio capacitors
- Audio cover
Back Panel I/O Ports
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)
3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-C)
4 x USB 3.2 Gen 1 ports (4 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
1 x DisplayPort
1 x HDMI port
1 x Wi-Fi Module
1 x Intel I225-V 2.5Gb Ethernet port
5 x Audio jacks
1 x BIOS FlashBack button
Internal I/O Connectors
Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connector
Storage related
3 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 2 connector (supports USB Type-C)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers supports additional 4 USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x AURA RGB header
1 x Clear CMOS header
1 x CPU Over Voltage jumper
1 x Front Panel Audio header (AAFP)
1 x S/PDIF Out header
1 x 20-3 pin System Panel header with Chassis intrude function
1 x Thermal Sensor header
1 x Thunderboltheader
1 x COM_DEBUGheader
Special Features
Extreme Engine Digi+
- 5K Black Metallic Capacitors
ASUS Q-Design
- M.2 Q-Latch
- PCIe Slot Q-Release
- Q-LED
- Q-DIMM
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack button
- BIOS FlashBack LED
- ProCool
- Pre-mounted I/O shield
- SafeSlot
- SafeDIMM
AURA Sync
- AURA RGB header
- Addressable Gen 2 headers
Software Features
ROG Exclusive Software
- GameFirst VI
- ROG CPU-Z
- Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion
- Sonic Radar III
- DTS Sound Unbound
- Anti-virus software
ASUS Exclusive Software
Armoury Crate
- AIDA64 Extreme (60 days free trial)
- AURA Creator
- AURA Sync
- Fan Xpert 4
- Power Saving
- Two-Way AI Noise Cancellation
AI Suite 3
- TPU
- DIGI+ VRM
- Turbo app
- PC Cleaner
MyAsus
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
FlexKey
BIOS
256 Mb Flash ROM, UEFI AMI BIOS
Manageability
WOL by PME, PXE
Accessories
Cables
2 x SATA 6Gb/s cables
Additional Cooling Kit
1 x Thermal pad for M.2
Miscellaneous
1 x ASUS Wi-Fi moving antennas
1 x Cable ties pack
1 x M.2 Q-Latch package
1 x ROG key chain
1 x ROG Strix stickers
1 x ROG Strix thank you card
2 x M.2 Rubber Packages
Documentation

1 x User guide
Operating System
Windows 11 64-bit
Form Factor
ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Item Dimension (L"xW"xH")
14 x 11 x 3

Weight
5.08 lbs

Warranty Information
1 years
