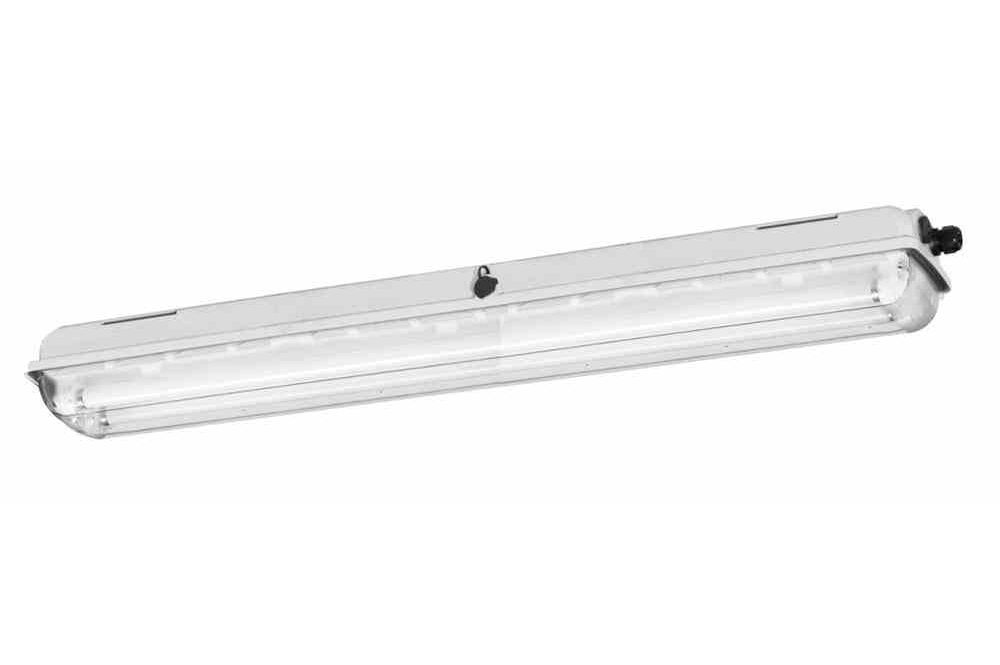

36W Explosion Proof Fluorescent Fixture - (2) 4' 18W Lamps - 220/240V AC - ATEX/IECEx

LARSON ELECTRONICSSKU: PL3-ATEX-HALP-48-2L-T8-2X18W
filler

Price:
Sale price$2,430.00

Description

Specifications / Additional Information
ATEX-HALP-48-2L-T8-2X18W Hazardous Location Lamp Ratings/Approvals
Lamp Type: Fluorescent IECEx PTB 13.0003
Dimensions: 62.4" x 7.2" x 4.9" Ex d e IIC T4 Gb or Ex db eb IIC T4
Weight: 14.9 lbs Ex tb IIIC T80°C Db or Ex tb IIIC T80°C
Voltage: 220-240V AC 50/60 Hz PTB 13 ATEX 2004
DC Voltage: 198-264V DC (Switching On), 176-264V DC (Operation) Ex II 2 G Ex d e IIC T4 Gb or Ex db eb IIC T4
Total Watts: 36W (18W per Lamp) E II 2 D Ex tb IIIC T80°C Db or Ex tb IIIC T80°C
Lamp Life Expectancy: 24,000 Hours Central Locking
Beam Angle: Flood IP66
Ambient Operating Temp Range:-30°C to +50°C
Operating Temp Range: T4 Rated
Housing Material: Polyester and Glass Fiber Housing
Gasket Material: Silicone Toll Free: 1-800-369-6671
Lens Material: Polycarbonate Intl: 1-214-616-6180
Mounting: Ceiling or Wall Fax: 1-903-498-3364
Wiring Hub: (2) M25 Hubs on Side
' Product Overview '
The ATEX-HALP-48-2L-T8-2X18W Explosion Proof Fluorescent Fixture from Larson Electronics is ATEX/IECEx approved for Zones 1 and 2 and 21 and 22. This 36-watt unit is equipped with two, 4-foot lamps that operate on 220-240V AC. The IP66-rated fixture is made out of non-sparking materials that are highly resistant to rough impacts (IK10). This fluorescent lamp can be mounted on ceilings or walls using a pair of stainless steel mounting brackets. The ATEX-HALP-48-2L-T8-2X18W is designed for use in hazardous locations and flammable buildings that require ATEX/IECEx rated fixtures. Consisting of two, 4-foot fluorescent lamps, the cold start unit is compatible with 220-240V AC, while consuming 36 watts (18 watts per lamp) during operation. A flood beam configuration ensures full coverage of the location when the light is in use. The lamp carries a T4 temperature rating. A NC switch provides all-pole disconnection when the unit is opened. This ATEX-rated fluorescent fixture is constructed of non-sparking materials for protection in flammable work sites. The housing on the unit is made out of glass fiber-reinforced polyester resin with polycarbonate lens and silicon foam gaskets. The IP66 unit offers exceptional resistance to hard impacts (IK10), with a threshold of 20 joules. Operators can lock the lamp using a small socket key (M8/wrench size 13). Mounting: The ATEX-HALP-48-2L-T8-2X18W is compatible with wall or ceiling mount installations. Each fixture is equipped with two M25 hubs on either side of the lamp for completing electrial connections. When a stainless steel mounting bracket is attached to the luminary for mounting, it can be swiveled in increments of 15 degrees for accurate targeting. Suggested Applications: Petrochemical facilities, lubrication pits, oil drilling rigs, crew quarters, solvent/cleaning areas, water treatment areas, processing plants, marine loading docks, shipyards, ports and more.
