18W Work Area LED Blasting Light w/ Handle - Inline Transformer - Emergency Backup Battery
18W Work Area LED Blasting Light w/ Handle - Inline Transformer - Emergency Backup Battery
| BLG-LEDBLT-HGL-X24I-XEMG LED Blasting Gun Light | Ratings/Approvals |
| Lamp Type: LED | IP65 Ingress Protection |
| Dimensions: 4.75 "-L  3"-W -  10"-H | Polycarbonate Handle for Increased Handling |
| Weight: - | Quick-Change Lens - Swap w/ Gloves On |
| Voltage: 120-277V AC 50/60 Hz stepped down to 24V DC | Glass or Polycarbonate Lenses |
| Total Watts: 18 | 120-277V AC Universal Voltage |
| Total Lumens: 1530 | Multiple Plug Options |
| Luminous Efficacy: 85 Lm/W | External Battery Backup |
| Lamp Life Expectancy: 50,000 Hours |  |
| Light Color: 5,000K |  |
| CRI: 85 |  |
| Beam Type: 25° Spot or 60° Flood |  |
| Amps: 0.15A @ 120V, 0.075A @ 240V, 0.065A @ 277V, 1.5A @ 12V, 0.75A @ 24V |  |
| Housing Materials: Cast Aluminum |  |
| Quick Swap Lens Materials: 3 Glass (Metal) or 3 Polycarbonate (Garnet) |  |
| Temp Range: -40°C to +85°C |  |
| Typical Case Temperature: ~20°C above ambient temperature |  |
| Mounting: Clamp on Blasting Gun Mount | |
| Wiring: 100" 12/3 SOOW cord, inline transformer, 5` 16/3 SOOW | |
| Cord Cap: 5-15, 6-15, 5-20, 6-20, L5-15, L6-15, L5-20, L6-20, BS1363, Schuko, or Pigtail | |
| Battery Runtime: 90 Mins | |
| *Blasting Gun Not Included |
Buy American Compliant

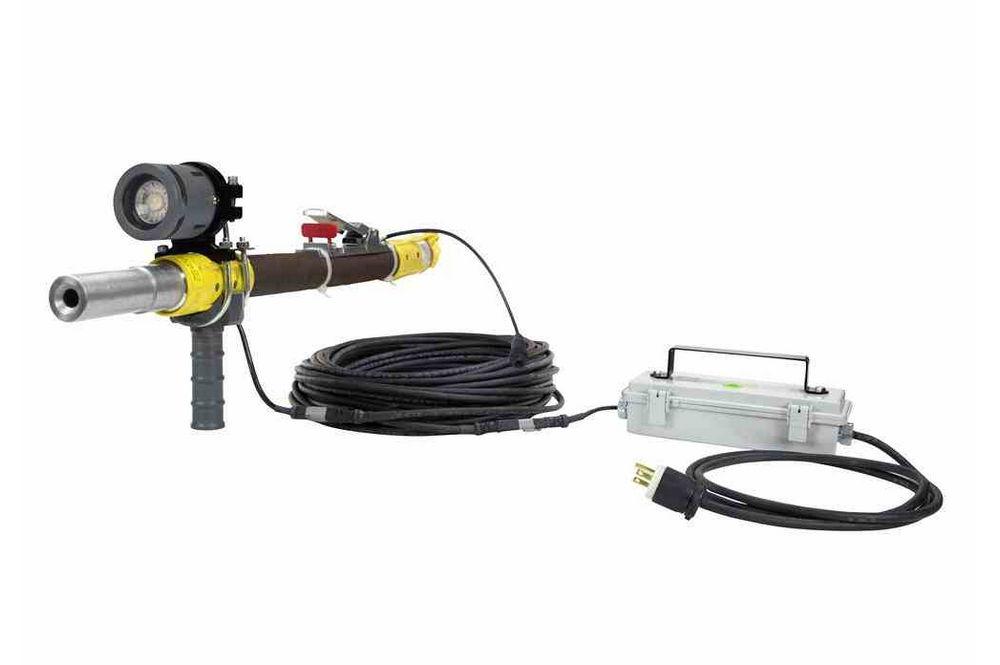

The Larson Electronics BLG-LEDBLT-HGL-X24I-XEMG Work Area Nozzle Mount LED Blasting Gun Light with Handle, Quick-change lens and inline transformer features an 18 watt LED that produces 1,530 lumens of intense LED illumination and is designed for extreme durability in media blasting applications. This powerful LED light is designed to be mounted to any standard blasting gun (Blasting Gun NOT Included with this LED light). This nozzle mount LED blast light operates on standard 120/277V AC 50/60Hz stepped down to 24V DC via an inline transformer, and includes 100' of SOOW between the light and transformer. An external battery provides 90 minutes of emergency power during outages or accidental disconnection.
This nozzle mount LED blasting gun light features a specially designed mounting system which allows the unit to be attached to the end of any standard blasting gun and features a polycarbonate handle to help stabilize the blast gun during operation. This mount includes all necessary mounting hardware and a protective lens cover that can be removed and replaced even when wearing gloves. This protective lens is a simple drop in, drop out configuration behind a twist-on lens frame, allowing operators to twist the lens off and drop in a new one as the lens is worn out by exposure to blasting materials such as coal slag, sand and baking soda. This lens is held in place by the delrin twist-on lens holder. We also offer a slot in the bottom of the lens holder which allows particles to clear when performing lens changes. Each unit comes with three lenses. Additional lenses can be purchased when needed.
A specially designed mounting system and quick change protective shield allows operators to use this unit as a blasting gun mounted light source that will stand up to abusive use. The protective lens is offered in polycarbonate or hardened glass materials. The polycarbonate lenses are for metal blast materials, while the glass lenses are for smaller abrasives.
|
|||||||||||||||
This LED blast gun light is designed to be operated and serviced in the field with gloves on. The quick-change lens design allows operators to quickly and easily swap out lenses without the operator having to remove their gloves. There are no special latches or hinges. Operators simply unscrew the lens holder, tilt the light to allow the lens to drop out, tilt the light back to drop a new lens in, and screw the lens holder back in. The lens holder is machined with large tabs on both sides to allow for operators to grab hold of the unit while wearing protective gloves.
Since this LED light is mounted onto the handle of the blast gun, the operators grip is reduced. To aleviate this, Larson Electronics has added an external handle to provide operators with additional control over the blast gun. This polycarbonate handle is machined with deep grooves to provide grip while wearing protective gloves during operation. Additional and replacement handles can be purchased separately, and can be mounted remote from the blast light.
Voltage: The step-down transformer installed in-line provides the ability to automatically monitor and adjust input current to maintain the correct LED voltage levels regardless of input levels across a specific range. These transformers can operate on current ranging from 90 to 305V AC or 127 to 431V DC without any modifications necessary as a result. This ability to sense and adjust input current also provides protection against voltage spikes and drops that can occur in electrical systems which would otherwise result in burning up or premature LED failure without it. The inline transformer then steps down the input voltage to 24V DC to power the LED light.
External Battery Backup: The LED light comes with an emergency backup feature, which operates for 90 minutes after power is lost. The external power cell is protected by a sturdy encapsulated case. Operators can access an on/off switch on the transformer case, allowing the unit to be plugged in and charged without needing to power on the light.
|
|||||||||||||||
|  | |||||||||||||||
