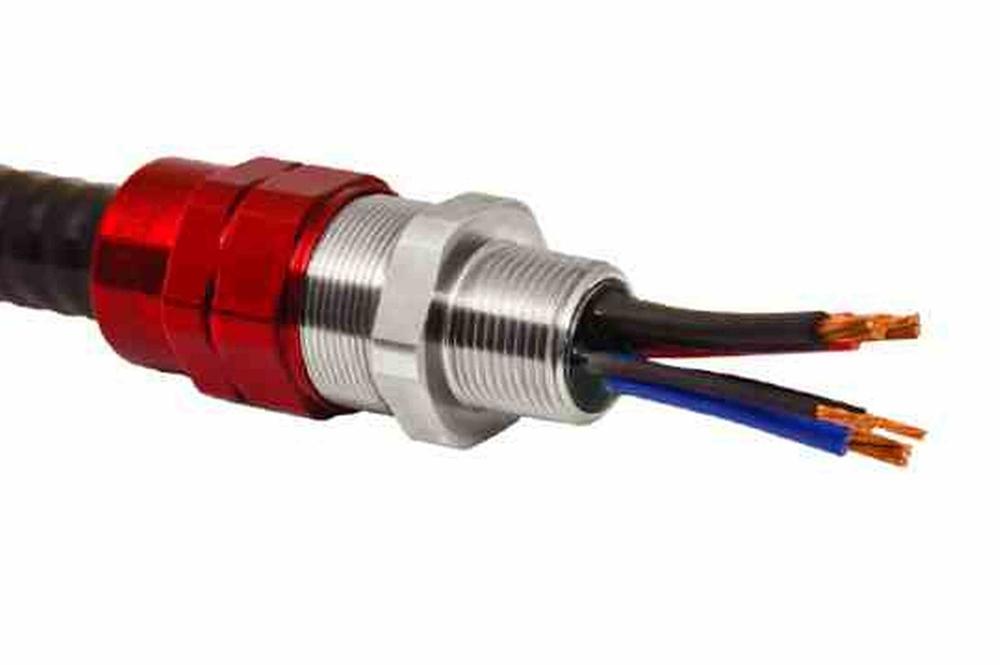

Explosion Proof Cable Gland - 0.60-0.89" Cable OD - Class I, II, III - Nickel Plated Brass - NEMA 4X - IP66 - 3/4" NPT Hub

LARSON ELECTRONICSSKU: PL3-CGB-C1D1-MCHL-NPB-R25-0.75
filler

Price:
Sale price$280.00

Description

Specifications / Additional Information
Explosion Proof Cable Gland - 0.60-0.89" Cable OD - Class I, II, III - Nickel Plated Brass - NEMA 4X - IP66 - 3/4" NPT Hub Cable Gland Ratings
Unit Type: Explosion Proof Cable Gland Class I, II, III Div 1 & 2
Weight: 0.14 lbs Class I, Zone 1 AEx d IIC; AEx e II; AEx ta IIC
Cable: Corrugated & Interlocked Metal Clad Armor (MC) or TECK90, Continuously Welded Metal Clad Armor (MCHL), ACIC-HL, ACWU90-HL, RC90-HL, RA90-HL ATEX, IECEx, RETIE Approved
Entry Thread (Hub): 3/4" NPT cCSAus, EAC, CCOE/PESO (India) Certified
Minimum Thread Length: 0.8" NPT UkrSEPRO
Cable Armor Diameter (Stop In): 0.60" NPT (Min) to 0.65" NPT (Max) Marine Approved
Cable Armor Diameter (Stop Out): 0.65" NPT (Min) to 0.89" NPT (Max) NEMA 4X
Cable Jacket Diameter: 0.69" NPT (Min) to 0.99" NPT (Max) IP66
Max Over Conductors: 0.71" NPT
Across Flats: 1.48" NPT (Max)
Across Corners: 1.63" NPT (Max)
Nominal Protrusion Length: 2.96" NPT
Operating Temp: -60°C to 85°C Toll Free: 1-800-369-6671
Materials: Copper-free nickel plated brass Intl: 1-214-616-6180
Armor Clamping: 360° Stainless Steel Grounding Spring (Non-magnetic)
Seal: Sold Separately
' Product Overview '
Made in the USA The Larson Electronics Explosion Proof Cable Gland - 0.60-0.89" Cable OD - Class I, II, III - Nickel Plated Brass - NEMA 4X - IP66 - 3/4" NPT Hub Explosion Proof Cable Gland provides secure and safe cable connections in combustible facilities. This armored cable gland is constructed of copper-free nickel plated brass and caters to standard 3/4" NPT hubs for connection. The Explosion Proof Cable Gland - 0.60-0.89" Cable OD - Class I, II, III - Nickel Plated Brass - NEMA 4X - IP66 - 3/4" NPT Hub is a heavy duty cable gland for flammable and rugged environments. This armored unit features a standard entry thread of 3/4" NPT and a minimum/maximum cable jacket diameter of 0.69" NPT/0.99" NPT. The ATEX-rated cable gland is constructed of copper-free nickel plated brass. The accessory, which contains a 360 ° grounding spring (non-magnetic), is waterproof (IP66) and designed for use in environments ranging between -60°C to 85°C. A liquid pour sealing system is used to seal the accessory. The sealing compound is not included with the cable gland (sold separately). Applications: Mechanical cable retention, cable connections, cable fittings, explosive work sites, hazardous locations, instrumentation, telecommunication, cable management and more.
