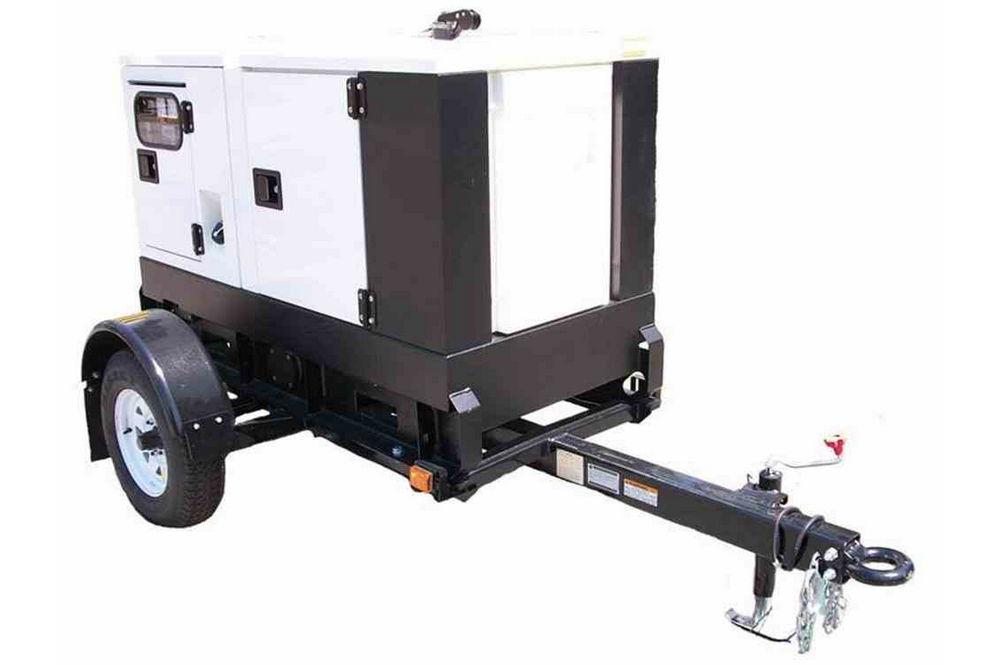

Towable 72 kW/90 kVA Portable Generator – 120/208V 3PH – 66 Gallon Fuel Capacity - Trailer Mount

LARSON ELECTRONICSSKU: PL3-DPG-72KW-SATM-3P-208Y.120-WCM
filler

Price:
Sale price$227,912.00

Description

Specifications / Additional Information
72 kW/90 kVA Portable Generator – 120/208V 3PH – 66 Gallon Diesel Fuel Capacity Ratings/Approvals
Engine: John Deere 4045HF285 Tier 3 Flex
Rated Output: 143 HP @ 1,800 RPM Water Cooled Diesel Engine
Cylinders: 4 Deep Sea Control Panel
Displacement: 4.5 L Weatherproof Enclosure
Fuel Tank Capacity: 66 Gal
Fuel Consumption @ 75% Load: 6.52 Gal/Hr
Runtime @ 75% Load: 10.12 Hrs
Engine Control: Electronic
Voltage: 120/208V 3PH 60 Hz Low Wye
Rated Power: 72 kW/90 kVA
Alternator: Stamford
Battery: Included w/ 12V Charger
Mount: Trailer Mount - Single Axle
Dimensions: (Generator Only): 110" x 43" x 65"
Weight (Dry, Generator Only): 4,047 lbs
' Product Overview '
Made in the USA The Larson Electronics DPG-72KW-SATM-3P-208Y.120-WCM portable generator is a diesel fuel type unit with a powerful 1,800 rpm, four-cylinder John Deere 4045HF285 engine. This unit supports 120/208V three-phase voltage. A Deep Sea Control Panel located on the side of the generator allows operators to monitor power usage in real-time. The portable generator is secured on a trailer mount for seamless transportation and deployment. Features: The DPG-72KW-SATM-3P-208Y.120-WCM comes with four cylinders and is capable of generating 143 horsepower at 1,800 rpm. On standby, the unit generates 80 kW/100 kVA and 72 kW/90 kVA during prime use. A heavy duty, Stamford alternator supports this generator during operation. It features 120/208V three-phase 60Hz low wye voltage compatibility. With a fuel load of 75 percent, this unit offers 10.12 hours of runtime at 6.52 gallons per hour (66-gallon diesel fuel capacity). The single axle trailer-mounted unit features a weatherproof enclosure with a white, powder finish coating for protection against foreign contaminants in the environment. This Tier 3 Flex generator includes an externally mounted emergency stop. For real-time monitoring, operators may utilize the generator’s Deep Sea Control Panel, which displays operational information and supports USB connectivity, a 4-line LCD screen and a configurable event log. At a distance of 23 feet and 75 percent load, this unit emits 69 dbA of sound, which is equivalent to the noise level of a compact hair dryer. Applications: This portable generator is suitable for use in remote locations, such as temporary camps, construction sites, military bases and areas without reliable access to the grid. It can be utilized to power a wide range of heavy duty tools and equipment, including laptops, portable machines and mobile devices. The unit`s robust recharging options offer flexibility in environments where access to reliable power sources are severely limited.
