Description
Made in the USA

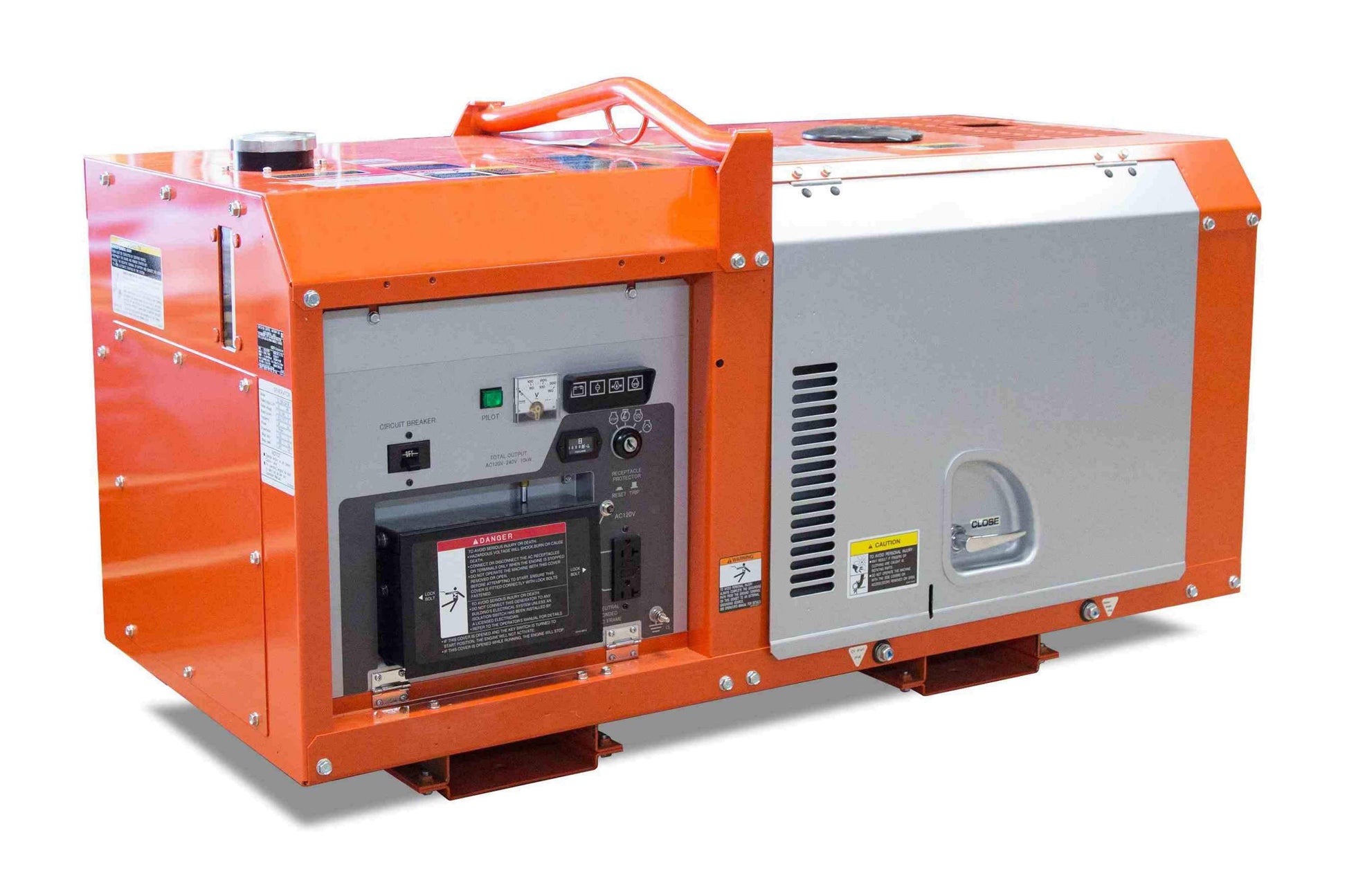

The DPG-9KW-3P-380Y.220-150L-CMLK-KT-M1 from Larson Electronics is an 9kW Diesel Generator that can be trailer mounted or used as a replacement generator for Larson Electronics` 8000W Megatower gensets. This generator has a 3 cylinder, 4 stroke Kubota diesel engine and can produce 9kW while supporting 380Y/220V. The portable generator offers reliable and safe power in remote locations, such as construction sites, mining locations, military bases, emergency camps and areas without adequate access to the grid.
The DPG-9KW-3P-380Y.220-150L-CMLK-KT-M1 consists of a 9kW prime (8kW continuous) generator with a 3 cylinder, 4 stroke Kubota engine that provides standalone power for connected devices and systems. Equipped with a 12V 36aH battery charged by the alternator on the engine, this generator has a 150-liter tank (39.62 gallons). The alternator offers 380Y/220, 50 hz 3-phase: 380V (L-L) 3 phase and 220V (L-N) 1 phase. Auto shutdown with an audible alarm is activated when sensing over voltage, over current, overload, low/high oil pressure and high oil temperature. This MB green generator is protected by fire retardant interior insulation.
This unit comes with five sets of 25-meter (82.01') camlock output cable connectors for the following connections: one per phase, one neutral and one ground. Lifting hooks on the enclosure enables seamless transportation. This generator can be secured to a trailer bed, back of truck or ground.
Applications:
This portable generator is suitable for use in remote locations, such as temporary camps, construction sites, military bases and areas without reliable access to the grid. It can be utilized to power a wide range of heavy duty tools and equipment, including laptops, portable machines and mobile devices. The unit`s robust recharging options offer flexibility in environments where access to reliable power sources are severely limited.
Contact info@purilite.ca for more information about our custom options tailored to meet your specific industry needs.
Specifications
Dimensions: -
Weight: -
Engine: Kubota, 3 Cylinder, 4 Stroke
Fuel Type: Diesel
Starting System: 12V Auto Start
Battery: 12V 36aH (Charged by Alternator on Engine)
Fuel Tank: 150 Liters (39.62 Gallons)
Fuel Consumption (L/hr): 1.17 L/hr (25% Load), 1.85 L/hr (50% Load), 3.02 L/hr (100% Load); 0.31 G/hr (25% Load), 0.49 G/hr (50% Load), 0.8 G/hr (100% Load)
Jump Start: Yes
Alternator: 380Y/220 50 hz 3 phase; Â 380V (L-L) 3 phase, 220V (L-N) 1 phase
Power Factor: >0.8
Sound Level: < 90 dbÂ
Auto Shut Down w/ Audible Alarm: Over Voltage, Over Current, Overload, Low/High Oil Pressure, High Oil Temp
Runtime: -
Insulation: Fire Retardant Insulation
Materials: -
Lifting Hooks: Included
Camlock Output Connectors: (5) 25 Meters per Cord - 82.01' [One per Phase, One Neutral and One Ground)
The DPG-9KW-3P-380Y.220-150L-CMLK-KT-M1 from Larson Electronics is an 9kW Diesel Generator that can be trailer mounted or used as a replacement generator for Larson Electronics` 8000W Megatower gensets. This generator has a 3 cylinder, 4 stroke Kubota diesel engine and can produce 9kW while supporting 380Y/220V. The portable generator offers reliable and safe power in remote locations, such as construction sites, mining locations, military bases, emergency camps and areas without adequate access to the grid.
The DPG-9KW-3P-380Y.220-150L-CMLK-KT-M1 consists of a 9kW prime (8kW continuous) generator with a 3 cylinder, 4 stroke Kubota engine that provides standalone power for connected devices and systems. Equipped with a 12V 36aH battery charged by the alternator on the engine, this generator has a 150-liter tank (39.62 gallons). The alternator offers 380Y/220, 50 hz 3-phase: 380V (L-L) 3 phase and 220V (L-N) 1 phase. Auto shutdown with an audible alarm is activated when sensing over voltage, over current, overload, low/high oil pressure and high oil temperature. This MB green generator is protected by fire retardant interior insulation.
This unit comes with five sets of 25-meter (82.01') camlock output cable connectors for the following connections: one per phase, one neutral and one ground. Lifting hooks on the enclosure enables seamless transportation. This generator can be secured to a trailer bed, back of truck or ground.
Applications:
This portable generator is suitable for use in remote locations, such as temporary camps, construction sites, military bases and areas without reliable access to the grid. It can be utilized to power a wide range of heavy duty tools and equipment, including laptops, portable machines and mobile devices. The unit`s robust recharging options offer flexibility in environments where access to reliable power sources are severely limited.
Contact info@purilite.ca for more information about our custom options tailored to meet your specific industry needs.
Specifications
Dimensions: -
Weight: -
Engine: Kubota, 3 Cylinder, 4 Stroke
Fuel Type: Diesel
Starting System: 12V Auto Start
Battery: 12V 36aH (Charged by Alternator on Engine)
Fuel Tank: 150 Liters (39.62 Gallons)
Fuel Consumption (L/hr): 1.17 L/hr (25% Load), 1.85 L/hr (50% Load), 3.02 L/hr (100% Load); 0.31 G/hr (25% Load), 0.49 G/hr (50% Load), 0.8 G/hr (100% Load)
Jump Start: Yes
Alternator: 380Y/220 50 hz 3 phase; Â 380V (L-L) 3 phase, 220V (L-N) 1 phase
Power Factor: >0.8
Sound Level: < 90 dbÂ
Auto Shut Down w/ Audible Alarm: Over Voltage, Over Current, Overload, Low/High Oil Pressure, High Oil Temp
Runtime: -
Insulation: Fire Retardant Insulation
Materials: -
Lifting Hooks: Included
Camlock Output Connectors: (5) 25 Meters per Cord - 82.01' [One per Phase, One Neutral and One Ground)
