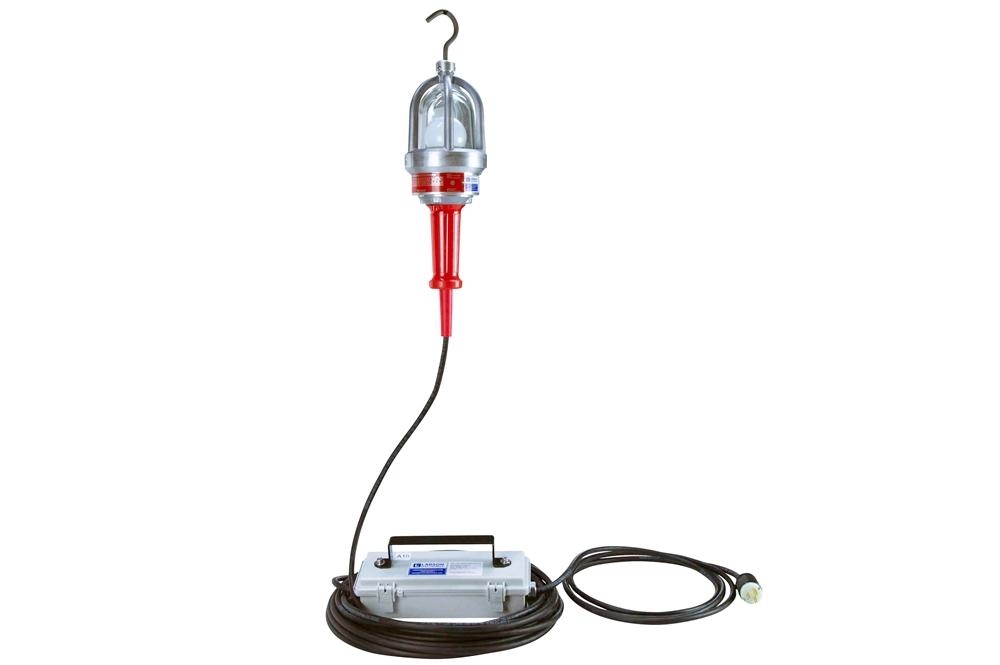

Explosion Proof LED Drop Light (Hand Lamp) with inline transformer - 230VAC to 24VDC

LARSON ELECTRONICSSKU: PL3-EHL-LED-230X24LV-100
filler

Price:
Sale price$2,968.00

Description

Specifications / Additional Information
EHL-LED-230X24LV-100 Ratings/Approvals
Listing: United States Class I, Division 1 & 2, Groups C, D
Lamp Type:  A19 LED Bulb Class II, Division 1 & 2, Groups F, G
Dimensions: 16.5"L x 5"Dia Class I, Zone 1, Group IIB
Total Weight: 11.9 lbs Listed to UL 844
Weight (Lamp Only): 5 lbs Listed to CSA 22.2 No. 137
Voltage: 240 VAC stepped down to 24 VAC or VDC Listed for United States
Total Watts: 10 watts Temperature Rating T3B
Lumens: 1050
Luminous Efficacy: 105 Lm/W
Lamp Life: 50,000 Hrs
Color Temperature: 5600K
Color Rendering Index: >80 CRI
Beam Angle: Omni Directional
Power Efficiency: >90%
Power Factor: >0.9
Ambient Operating Temp Range:-50° C to +65°C
Mounting: Aluminum Hook
Wiring: 100` 12/3 SOOW cord from Transformer to Light. 10` 16/3 Input
3 year warranty replacement on this LED light. After 30 days, the customer ships the failed LED light and/or LED bulb to Larson Electronics at their expense. If the failure is a manufacturer defect, we will ship a new replacement to the customer. If failure occurs within 30 days of receipt, Larson Electronics will provide a return label via email to the customer. When the failed light is returned, Larson Electronics will ship a new replacement.

' Product Overview '
Made in the USA The Larson Electronics EHL-LED-230X24LV-100  Explosion Proof LED Hand Lamp is UL Listed Class 1 Division 1 Groups C and D - and is ideal for general work activities in hazardous locations requiring explosion proof protection. This 10 watt explosion proof hand lamp from Laron Electronics produces 1050 lumens of bright white light and comes complete with 100 feet of explosion proof cord. The EHL-LED-230X24LV-100 drop light has no ballast and the housing is constructed of non-sparking aluminum with a rubber bumper guard designed to provide an effective lighting solution for operators requiring a versatile source of illumination. This hazardous location LED hand lamp is Class 1, Division 1 approved and is ideal for hazardous work areas where a ready source of easily managed lighting is desired.
Dark 40` Container   Illuminated with EHL-LED-230X24LV-300
Click Photos to Enlarge   Click Photos to Enlarge
Lamp: The 10-watt LED lamp used in this unit produces nearly 3 times the illumination of incandescent lamps as measured in foot candles, at less than 1/10th of the electricity usage and without the associated heat. This LED drop light runs at operating temperatures of 55° F, greatly reducing the chances of accidents or burns commonly associated with incandescent drop lights. This lamp has no ballast, which reduces lamp weight, a steel globe guard, and a stainless steel hook for easy overhead mounting. The solid state LED bulb has no filament, making it resistant to damage from impacts and dropping. This hand lamp has a high efficiency LED bulb that requires no ballast, so the operator doesn`t need to drag the ballast housing around. This can be particularly annoying when the ballast becomes entangled in the cord. Unlike gas burning and arc type lamps that have glass bulbs, LEDs have no filaments or fragile housings to break during operation. Instead of heating a small filament or using a combination of gases to produce light, light emitting diodes (LEDs) use semi-conductive materials that illuminate when electric current applied and emitting light. With LED lights, there is no warm up time or cool down time before re-striking and provide instant illumination when powered on, adding to the reliability of LED technology. By nature, LED light sources run significantly cooler than traditional lamps, reducing the chance of accidental burns and increased temperatures due to heat emissions. This solid state design of light emitting diodes provides a more reliable, stable, durable, and energy efficient light source over traditional lighting.
Click Photos to Enlarge
5-15 Straight Blade Plug 15 Amp / 125V Rated L5-15 Twist Lock Plug 15 Amp / 125V Rated L6-15 Twist Lock Plug 15 Amp / 250V Rated
UK BS1363 Straight Blade Plug 13 Amp / 250V Rated / Internal Fuse Intl Schuko 2-Pin Plug 16 Amp / 250V Rated / Grounded Flying Leads / Pigtail Wires
Wiring and Plug: This explosion proof LED hand lamp is equipped with 100` of 12/3 chemical and abrasion resistant SOOW cord leading up to the encapsulated step down transformer, and 10` of 12/3 SOOW cable on the input side of the transformer that is fitted with an industrial grade cord cap for easy connection to common wall outlets. Plug options include standard 5-15 15 amp straight blade plug for 110V wall outlets with ground, standard 6-15 15 amp straight blade plug for 220-240V wall outlets with ground, NEMA L5-15 15 amp twist lock plug for 125V twist lock outlets, NEMA L6-15 15 amp twist lock plug for 240V twist lock outlets, British BS1363 13 amp fused 3-blade plug for United Kingdom outlets, or a two pin 16 amp rated Schuko plug with ground contact and socket for European outlets up to 250V. Alternatively, we can provide flying leads with no plug for hard wire applications or for operators who prefer to wire in user provided cord caps. Please choose pigtail option below for flying leads with no plug. PLEASE NOTE: The cord cap on this unit is not class rated and must be plugged in outside of the classified hazardous location. Larson Electronics can equip this light with an explosion proof cord cap for complete class rated protection at an additional fee. Cord cap options include straight blade plugs and pin/sleeve style cord caps.
Made in USA Quality Lamp Features
1. Chemical and abrasive resistant cord. 2. Explosion Proof. 3. 10 Watt 1050 Lumen LED Lamp. 4. Rugged fabricated steel and cast aluminum construction. 5. Red and Gray paint finish. 6. Class1 Div1 Class 2 Div1 7. 120-277 Volt Operation 8. SOOW cable. 9. Aluminum Hook for Convenient Placement. 10 watt LED light produces 1050 lumens Non-sparking aluminum housing 50,000 hour LED Lamp Molded rubber bumper guard Annealed glass tube shields prevent shattering Integrated lamp shock absorbers prevent drop damage Swivel hook for hanging and hands free operation Explosion proof cord
