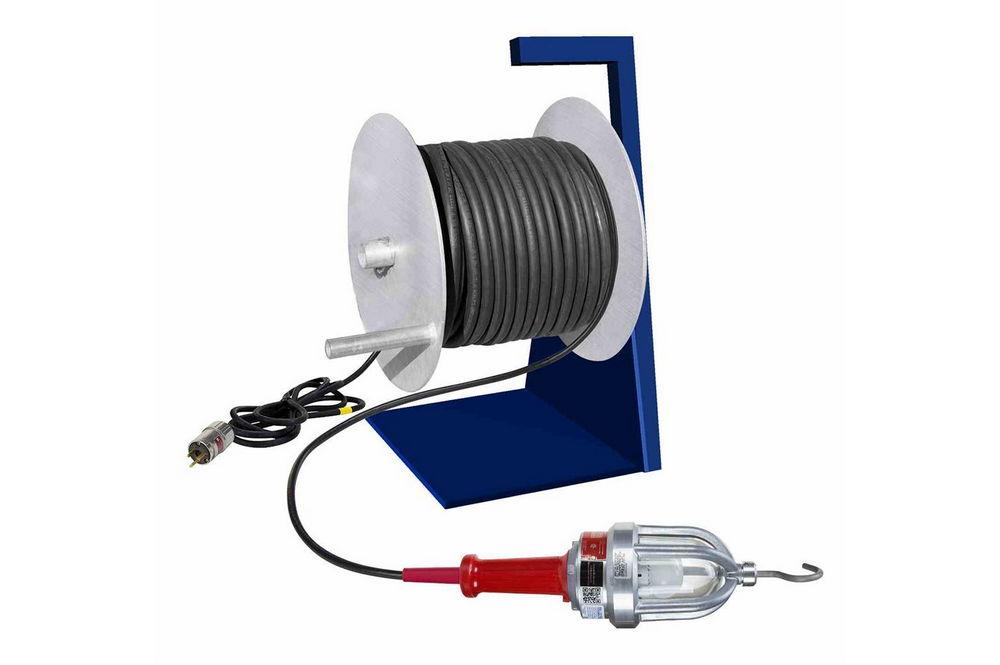

10W Explosion Proof LED Drop Light & Reel - C1D1, C2D1 - 120-277V AC - 100 Meter SOOW Cord -EXP plug

LARSON ELECTRONICSSKU: PL3-EHL-LED-7W-LER-100M-16.3
filler

Price:
Sale price$6,430.00

Description

Specifications / Additional Information
EHL-LED-7W-LER-100M-16.3 Explosion Proof LED Handlamp w/ EXP Reel Features/Ratings
Lamp Type: LED Class I, Div 1 & 2, Groups C,D
Handlamp Dimensions: 16.5"-L x 5"-Dia Class 1, Zone 1, Group IIB
Handlamp Weight: 5.5 lbs Class II, Div 1 & 2, Groups F,G
Voltage: 120-277V AC NEMA 4X
Total Watts: 10W
Total Lumens: 1,050
Luminous Efficacy: 105 Lm/W
Lamp Life: 50,000+ Hours
Color Temp: 6,000K
Color Rendering Index: >75
Lighting Configuration: 360° Flood
Power Efficiency: 90%
Power Factor: >0.95
Mounting: Aluminum Hook
Wiring: 328` 16/3 SOOW Cord on EXP Reel
Explosion Proof Reel: 5` Whip w/ EXP Cord Cap
Cord Cap Options: 5-15P, 5-20P, 6-20P

' Product Overview '
Made in the USA The Larson Electronics EHL-LED-7W-LER-100M-16.3 Explosion Proof LED Drop Light & Reel offers powerful illumination in Class I, Division 1 & 2/Class II, Division 1 & 2 environments. Equipped with an explosion proof cord reel and a 328` 16/3 SOOW cord, this 10-watt LED handlamp operates on 120-277V AC. Operators may mount the unit using an aluminum hook located at the top of the drop light. ***PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO THIS HAZARDOUS LOCATION LIGHT FIXTURE*** The EHL-LED-7W-LER-100M-16.3 is a temporary lighting solution for combustible facilities. This 10-watt LED drop light, which comes with an explosion proof cord reel, projects 1,050 lumens of light, which is twice the lumens per watt output of a 100 watt incandescent bulb. This unit is rated Class I, Division 1 & 2/Class II, Division 1 & 2 and offers compatibility with 120-277V AC. The LED drop light is designed for portable mounting, via an aluminum hook, on poles, chains, racks and other openings. The light produced by this LED unit has a 6,000k color temperature, which is much sharper and whiter than the light produced by incandescent lamps. The light produced by this lamp is ideal for close work and inspection activities where good contrast and true color representation is needed. The LED lamp in this unit runs much cooler than incandescent or fluorescent lamps, resulting in a lamp housing that remains cool to the touch and eliminates the accidental burns often encountered with incandescent drop lights.
100 Watt Incandescent Bulb With the EXP-LED-7W-100
Click Photos to Enlarge Click Photos to Enlarge Click Photos to Enlarge
LED Benefits: Unlike gas burning and arc type lamps that have glass bulbs, LEDs have no filaments or fragile housings to break during operation. Instead of heating a small filament or using a combination of gases to produce light, light emitting diodes (LEDs) use semi-conductive materials that illuminate when electric current applied and emitting light. With LED lights, there is no warm up time or cool down time before re-striking and provide instant illumination when powered on, adding to the reliability of LED technology. By nature, LED light sources run significantly cooler than traditional lamps, reducing the chance of accidental burns and increased temperatures due to heat emissions. This solid state design of light emitting diodes provides a more reliable, stable, durable, and energy efficient light source over traditional lighting. Explosion Proof Cord Reel: The EHL-LED-7W-LER-100M-16.3 is equipped with a manual-crank operation cord reel for hazardous locations and combustible work sites. This unit provides 20 amps of continual service. This component is constructed of copper-free aluminum with stainless steel hardware.
Click Photos to Enlarge
5-15 Straight Blade Plug 5-20 Straight Blade Plug 6-20 Straight Blade Plug
Wiring & Plug: The EHL-LED-7W-LER-100M-16.3 is equipped with 328` of 16/3 chemical and abrasion resistant SOOW cord for extending power connections. This cord is managed by the explosion proof reel, which contains a 5` whip that is fitted with an explosion proof cord cap for easy connection to explosion proof outlets. Plug options include a 5-15 15 amp straight blade plug for use with 120V explosion proof outlets, a 5-20 20 amp straight blade plug for use with 120V explosion proof outlets, or a 6-20 20 amp straight blade plug for use with 220-240V explosion proof outlets. During use, the end of the explosion proof reel plug must be inserted into power only after the reel has been unwound. **PLEASE NOTE** voltage ratings on plugs and outlets are MAXIMUM voltage. For low voltage applications, proper voltage must be applied to the outlet or damage to the security camera will occur.
Stringer Energy Consumption Comparison
Incandescent CFL LED
Wattage 100 watts 26 watts 10 watts
Amp Draw @ 120V AC 0.84 amps 0.22 amps 0.08 amps
Amp Draw @ 277V AC 0.36 amps 0.10 amps 0.04 amps
Amp Draw @ 12V AC 8.34 amps 2.17 amps 0.83 amps
Amp Draw @ 24V AC 4.17 amps 1.09 amps 0.42 amps
Lamp Life Expectancy 1,500 hours 8,000 hours 50,000 hours
Color Temperature 2800K 4300K 6000K
Operation cost per year (8hs/day @ 11c/kWh) $32.12 $8.35 $3.21
Applications: Portable lighting, inspections, maintenance, plant repair, combustible work sites and more.
