Explosion Proof Extension Cord - 40' 12/3 SOOW Cord - 20 Amp Service

LARSON ELECTRONICSSKU: PL3-EPEXC-40-12.3-20A
filler

Price:
Sale price$2,658.00

Description

Specifications / Additional Information
EPEXC-40-12.3-20A Explosion Proof Extension Cord Plug / Outlet Certifications
Amp Rating: 20 Amp Continuous Service Class 1 Div 1 Groups C and D
Dimensions: Cord length-40 Feet  Plug-2.78"-L 1.75"-W Class 2 Div 1 Groups F and G
Configuration: 2 Pole 3 Wire
Suitable Plug Cable Diameter: .538 to .639
Wiring: 40` 12/3 SOOW Cable Terminated w/ (1) 5-20 Explosion Proof Straight Blade Plug or(1) 6-20 Explosion Proof Plug (5-20P or 6-20P)
Voltage: 125 Volts or 250 Volts

Receptacle Specs:1 Inline Receptable
Configuration: 2 Pole 3 Wire
Materials: Copper Free Aluminum Toll Free: 1-800-369-6671
Dimensions: 3"-W X 5.69"-D X6.13"-H Intl: 1-214-616-6180
Mating Plugs: ****, **** Fax: 1-903-498-3364
Finish: Epoxy Powder Coat E-mail:
' Product Overview '

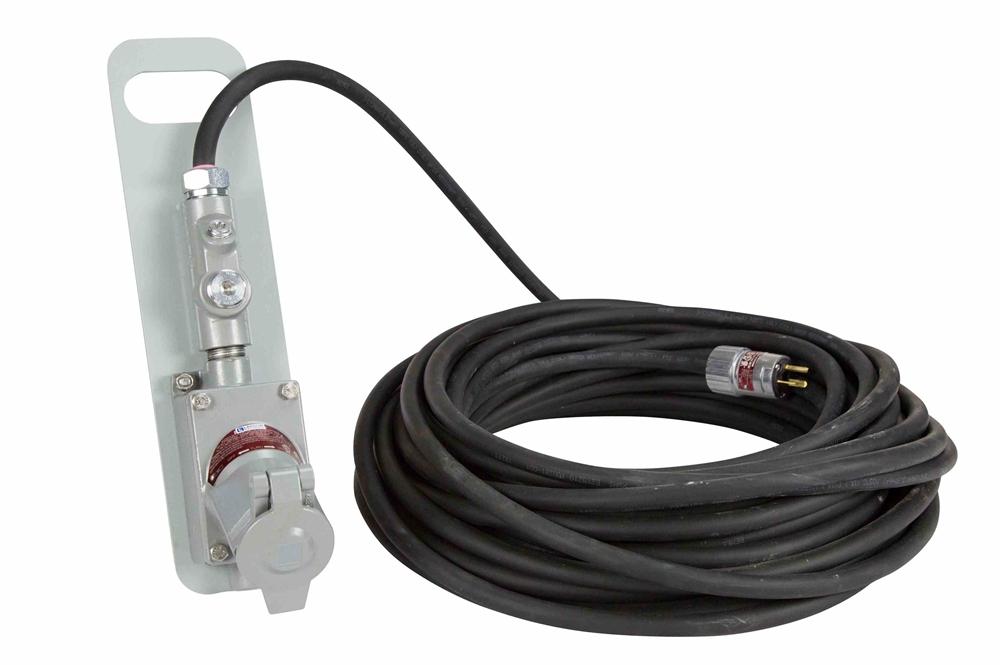

Made in the USA The Larson Electronics EPEXC-40-12.3-20A 40` Explosion Proof extension cord allows operators to safely extend the range of their explosion proof light or equipment cords beyond the boundaries of the hazardous work area. These units are constructed of 40 feet of 12/3 SOOW explosion proof cord rated at 20 amps of continuous service. The cord is chemical and abrasion resistant and comes with an explosion proof, 20 amp receptacle installed on one end and a 20A explosion proof plug installed on the other end. The plug on this cord can only be used in T style outlets and will not work in standard electrical outlets. The plugs on these units are of a twist lock design. In order for a secure and working connection to take place, the operator must insert the plug and twist until it locks into place. This ensures a safe seal is made before any sparks from electrical contact can take place. To ensure the highest safety, operators should make connections outside of the hazardous area.
Click Photos to Enlarge
These explosion proof extension cords are preconfigured in 125V (left) or 250V (right). Each unit is equipped with a 20 amp explosion proof cord cap and rated for 20 amps of continual service. The outlets are a twistlock design. The deep recessed contacts in the receptacle housing prevents ordinary and wet location plugs from activating the explosion proof outlets.
125V 5-20P Explosion Proof Straight Blade Plug 250V 6-20P Explosion Proof Straight Blade Plug
125V 5-15/20 Explosion Proof Outlet Outlet accepts 15A and 20A Explosion Proof Plugs Outlet accepts 6-15P and 6-20P Explosion Proof Plugs
We offer this unit in a 125V or 250V configuration. Each receptacle`s contacts are deep recessed to avoid accidental contact and will accept standard non-explosion proof plugs that are NEMA 5-20R, or 6-20R compatible although explosion proof plugs must be used to preserve explosion proof approval in hazardous environments. Ordinary location plugs will NOT activate this cord`s explosion proof receptacles. Inter-Compatibility: These cords use T style plugs and will work with non-explosion proof standard receptacles and plugs (NEMA 5-15R, 5-20R, or 6-20R) but will not work with standard 120V wall outlets. The included plugs and receptacle are cross-interchangeable with Crouse Hind part# ENP5201 plugs and receptacles and Hubble-Killiark part# UGP-20231 ACCEPTOR® plugs and receptacles. Any equipment requiring these C-H or H-B plugs should work with these cords. Due to possible manufacturer changes we cannot guarantee interchangeability although we have made every effort to ensure cross compatibility correctness. Suggested Applications: Manufacturing, Industrial, Warehouse, Lighting, Explosion Proof Light Fixtures, Grinders, Wet areas or Locations Where Combustible Dust is Present.
