Explosion Proof Electric Fan Blower Ventilator - 3 Phase - 208V - C1D1 - 1/3 HP Engine - Fan Only

Explosion Proof Electric Fan Blower Ventilator - 3 Phase - 208V - C1D1 - 1/3 HP Engine - Fan Only

常规价格 $7,576.00 CAD
常规价格 促销价 $7,576.00 CAD
促销 售罄
结账时计算的运费
Specifications / Additional Information
EPF-10P.3-3PH-208V-NFK Explosion Proof Inline Axial Fan UL and C-UL Listed
Voltage: 208 VAC Class I, Div. 1, Groups C and D
Startup Amps : 1.59 (Max at Startup) Class II, Div. 1, Groups E, F, G
Constant Amps : 1.27 T4 Temp rating -30C to 160C
Motor: 1/3 Horsepower Meets United States and Canadian Safety Ratings
CFM Delivery : 1390
Motor Duty Cycle: Continuous
Noise Level: 72 dbA @ 3ft
Fan Type: Inline Axial Fan
Dimensions: 16€W x 16.75€H x 12.5€D Toll Free: 1-800-369-6671
Weight: 33 lbs Intl: 1-214-616-6180
Wiring: 10 Foot 16/4 SOOW Cord w/ 3P4W Pin Sleeve Cord Cap Fax: 1-903-498-3364
Protection: Dual Lug Ground Body/Automatic Reset Thermal Overload
' Product Overview '

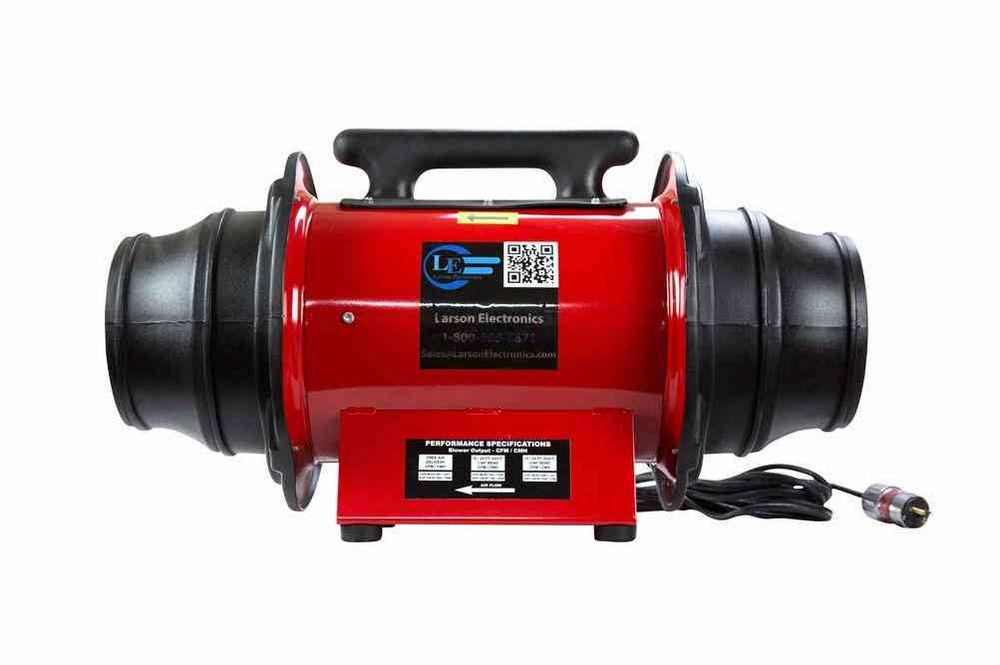

Made in Texas The Larson Electronics EPF-10P.3-3PH-208V-NFK Explosion Proof Electric Inline Axial Fan Class 1, Division 1 and Class 2, Division 1 listed and safely and effectively redirects stale air from hazardous location areas. This fan is designed for portability, and can be linked in series when larger lengths of conductive duct are needed. At start up, the motor within the portable explosion proof fan will draw 1.59 amps. After startup and the fan is at operational speed, the motor will draw a constant 1.27 amps. When operating multiple units on a single circuit, it is best to turn one fan on at a time to lower total amperage spike introduced to the circuit This explosion proof fan delivers high-performance airflow with a 1,390 overall CFM rating and 973 CFM when fitted with a 25ft. duct and a 90 degree bend. The 1/3 horsepower electric motor runs from standard 208 VAC three-phase at 60Hz and pulls 1.27 amps. Added safety features include a prewired explosion proof switch, dual grounding lugs on the steel housing, and 10 feet of 16/4 SOOW cord fitted with an explosion proof 3-pole 4-wire pin sleeve cord cap. Meets United States and Canadian safety ratings for Class 1, Division 1, Groups C and D & Class II Division 1, Groups E, F and G.
Click Photo to Enlarge
This explosion proof fan is designed for portability and durability with a light weight compact body constructed of powder coated steel and a non-sparking aluminum blower wheel. Rubber coated base feet and an integral carry handle provide easy transport and secure placement when set down on a flat surface. This unit is available with either an 8 inch or 10 inch intake and exhaust flange, and includes a built in automatic reset thermal overload for added protection. Ambient temperature for the fan ranges from -20 degrees to 180 degrees Fahrenheit. Note on Explosion Proof Fans: Can be used as an intake and an exhaust fan.
INCLUDES: 1. Hazardous location ventilation fan (blower) 2. Intake or Exhaust Fan 3. Can be used inline 4. Universal mount Features:
  •  1/3 HP electric motor, 208 VAC, 1.59 amp
  •  Explosion-proof switch installed and wired
  •  8 or 10 inch intake and exhaust flange
  •  1390 cfm free air delivery
  •  973 cfm when a 25ft. duct and a 90 degree bend are   present while in use.
  •  72 dbA @ 3ft.
  •  Approved for Class I, Div. 1, Groups C and D and   Class II, Div. 1, Groups E, F, G
  •  Aluminum non-sparking blower wheel
  •  Dual grounding lugs installed on steel housing
  •  All Steel, powder coated red with rubber base feet
  •  Automatic reset thermal overload
  •  Carry handle frame
  •  Pre-Wired With 10 Ft. 16/4 SOOW Cord
  •  Pre-wired with an explosion proof 3-pole 4-wire pin   sleeve cord cap
