Explosion Proof Electric Fan/Blower - C1D1 - 1/3 HP Engine - Fan Only- 50' SOOW w/ EPP Cord Cap

LARSON ELECTRONICSSKU: PL3-EPF-10P.3-NFK-50C
filler

Price:
Sale price$5,250.00

Description

Specifications / Additional Information
EPF-10P.3-NFK-50C Explosion Proof Inline Axial Fan UL and C-UL Listed
Air Consumption: 38 CFM Class I, Div. 1, Groups C and D
Voltage: 115V AC Class II, Div. 1, Groups E, F, G
Amps: 12.6 T4 Temp rating -30°C to 160°C
Motor: 1/3 Horsepower Meets United States and Canadian Safety Ratings
CFM Delivery: 1390
Noise Level: 72 dbA @ 3ft
Fan Type: Inline Axial Fan
Size: 16"W x 16.75"H x 12.5"D Toll Free: 1-800-369-6671
Wiring: 50` of SOOW Cord w/ Explosion Proof Cord Cap Intl: 1-214-616-6180
Cord Cap Options: 5-15P, 5-20P, 6-20P Fax: 1-903-498-3364
Protection: Dual Lug Ground Body/Automatic Reset Thermal Overload
' Product Overview '

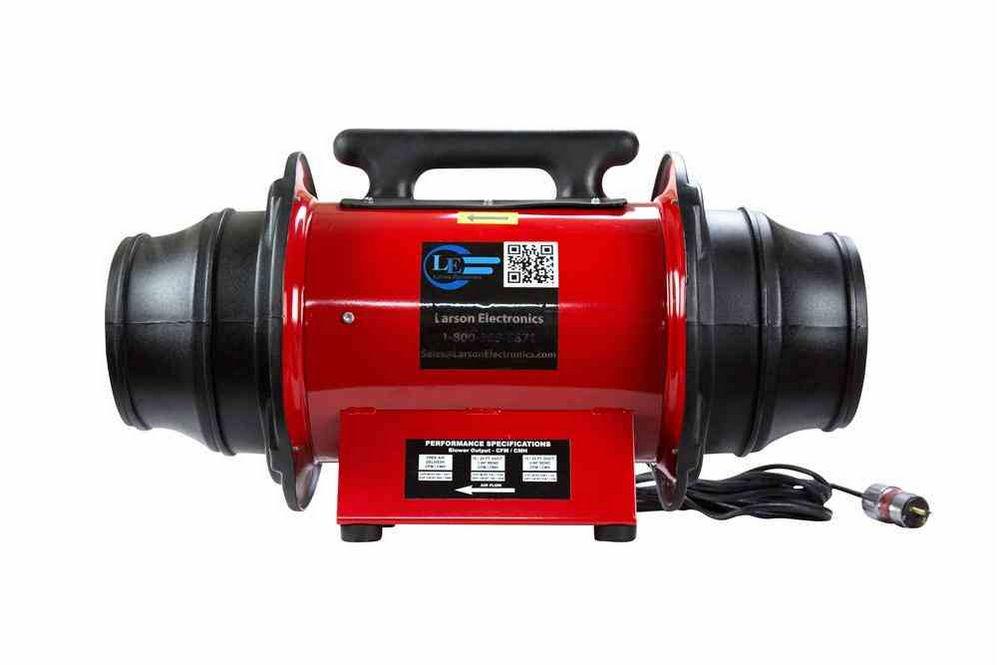

Made in Texas The EPF-10P.3-NFK-50C from Larson Electronics is an Explosion Proof Electric Inline Axial Fan that is Class I Division 1 and Class II Division 1 listed and safely and effectively redirects stale air from hazardous location areas. This fan is designed for portability and can be linked in series when larger lengths of conductive duct are needed. The EPF-10P.3-NFK-50C is equipped with 50 feet of SOOW cable and an explosion proof cord cap. This explosion proof fan delivers high-performance airflow with a 1,390 overall CFM rating and 973 CFM when fitted with a 25ft. duct and a 90 degree bend. The 1/3 horsepower electric motor runs from standard 115V AC and pulls 12.6 amps. Added safety features include a prewired explosion proof switch, dual grounding lugs on the steel housing, and 50 feet of SOOW cord fitted with a choice of explosion proof cord cap. Please make your cord cap selection below when ordering. Meets United States and Canadian safety ratings for Class I Division 1, Groups C and D & Class II Division 1, Groups E, F and G.
Click Photo to Enlarge
This explosion proof fan is designed for portability and durability with a light weight compact body constructed of powder coated steel and a non-sparking aluminum blower wheel. Rubber coated base feet and an integral carry handle provide easy transport and secure placement when set down on a flat surface. This unit is available with either an 8 inch or 10 inch intake and exhaust flange, and includes a built in automatic reset thermal overload for added protection. Ambient temperature for the fan ranges from -20 degrees to 180 degrees Fahrenheit. Note on Explosion Proof Fans: Can be used as an intake and an exhaust fan.
Click Photos to Enlarge
5-15 Straight Blade Plug 5-20 Straight Blade Plug 6-20 Straight Blade Plug
Wiring & Plug: This explosion proof flood light is equipped with 50 feet of chemical and abrasion resistant SOOW cord that is fitted with an explosion proof cord cap for easy connection to explosion proof outlets. Plug options include a 5-15 15 amp straight blade plug for use with 120V explosion proof outlets, a 5-20 20 amp straight blade plug for use with 120V explosion proof outlets, or a 6-20 20 amp straight blade plug for use with 220-240V explosion proof outlets. **PLEASE NOTE** voltage ratings on plugs and outlets are MAXIMUM voltage. For low voltage applications, proper voltage must be applied to the outlet or damage to the light fixture will occur.
INCLUDES: 1. Hazardous location ventilation fan (blower) 2. Intake or Exhaust Fan 3. Can be used inline 4. Universal mount Features:
  •  1/3 HP electric motor, 115 VAC, 12.6 amp
  •  Explosion-proof switch installed and wired
  •  8 or 10 inch intake and exhaust flange
  •  1390 cfm free air delivery
  •  973 cfm when a 25ft. duct and a 90 degree bend are       present while in use.
  •  72 dbA @ 3ft.
  •  Approved for Class I, Div. 1, Groups C and D and Class   II, Div. 1, Groups E, F, G
  •  Aluminum non-sparking blower wheel
  •  Dual grounding lugs installed on steel housing
  •  All Steel, powder coated red with rubber base feet
  •  Automatic reset thermal overload
  •  Carry handle frame
  •  Equipped with a 50` SOOW cord terminated in an         explosion proof cord cap.
