24" Electric Explosion Proof Fan - 7980 CFM - 24 inch - Extended Wall Mount - C1D1 & C2D1
24" Electric Explosion Proof Fan - 7980 CFM - 24 inch - Extended Wall Mount - C1D1 & C2D1
| EPF-24-EBM Explosion Proof Fan/Blower | Ratings/Approvals: |
| Dimensions: 24"Dia x 15"D | Class I, Divisions 1 & 2, Groups C, D |
| Weight: 61 lb | Class II, Divisions 1 & 2, Groups E, F, G |
| Motor: 0.25 Horsepower | T3B Temp Rating |
| Voltage: 115/230 V AC | |
| Ambient Temperature: 40°C (104°F) | |
| Ambient Temperature Rating: 10°C to 40°C | |
| Motor Insulation: Class B | |
| Sound Level: 75db @ 3ft | Special Orders - Requirements |
| Start-up Amps: 9.8 A @ 115 V - 4.9 A @ 230 V | |
| Fan Type: Circular Fan | Toll Free:Â 1-800-369-6671 |
| CFM Delivery: 7,980 | Intl:Â 1-214-616-6180 |
| Wiring: 3/4" Hub | Fax:Â 1-903-498-3364 |
| Mounting: Steel Extended Wall Mount w/ 12" Safety Cable |

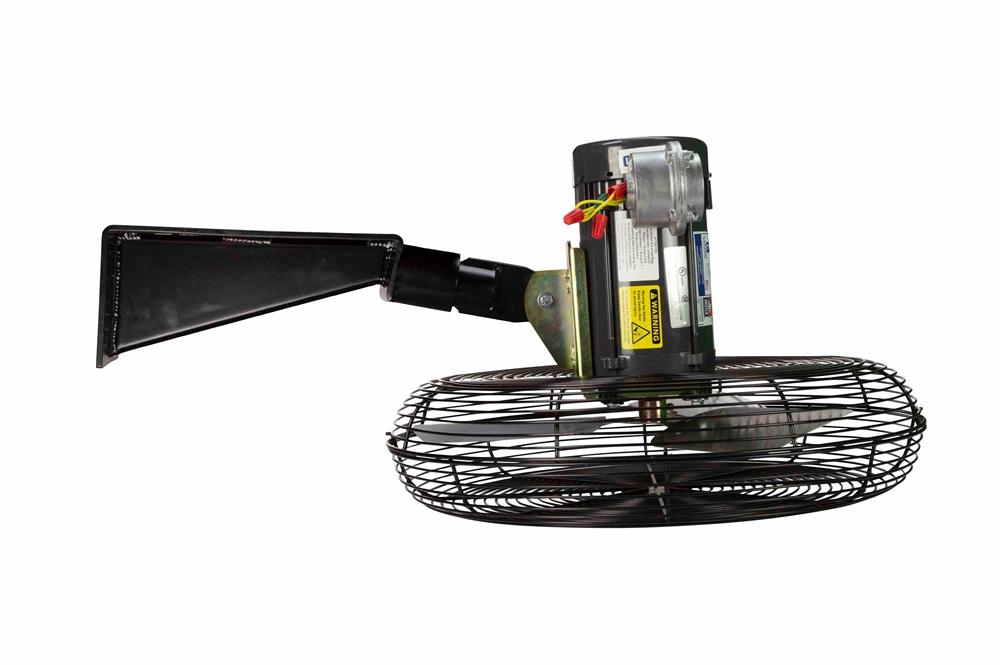

| Made in the USA The EPF-24-EBM from Larson Electronics is an Explosion Proof Circular Fan that redirects and circulates air within hazardous locations. This explosion proof fan meets UL standards for hazardous areas and provides a high 7,980 CFM output for effective airflow in larger spaces. The extended arm wall mount that allows the fan to direct the air flow towards the ground. *PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO THIS PRODUCT* This electric explosion proof circular fan is suitable for confined spaces and is approved for use within Class I Divisions 1 & 2 and Class II Divisions 1 & 2 hazardous locations. This fan features a high efficiency 1/4 HP motor which is fully encapsulated and a precision balanced, non sparking aluminum blade assembly for high output and protection against accidental ignitions. This fan has 24" propeller diameter and produces over 7,980 CFM of air output for excellent circulation of air in large areas. The EPF-24-EBM has an ambient temperature rating of 10°C to 40°C. This fan is rated for single phase 115/230 V AC, 60 Hz and operates at 1,725 RPM. A cast aluminum junction box houses the fan motor and allows for electrical connections to the fan. The EPF-24-EBM is equipped with an extended wall mount arm that is constructed from steel for strength and durability. A 12" stainless steel safety cable is included. |
