36" Explosion Proof Cabinet Fan - 1/2 HP - 115V/230V - Class I, Group D & Class II, Groups F, G | Ratings/Features: |
Type: Industrial Cabinet Fan | NRTL Listed for United States |
Propeller Dimensions: 36" Diameter | Class I, Divisions 1 & 2, Group D |
Propeller Material: Spark-Resistant Cast Aluminum | Class II, Divisions 1 & 2, Groups F & G |
Weight: 250 lb | Spark-Resistant Propeller |
Voltage: Multi-Voltage 115V/230 V AC Single Phase | Surface Mount Trunnion Bracket |
Motor: 1/2 HP Fully Enclosed Explosion Proof | |
RPMs: 415 | Â |
CFM: 8143 (0" S/P), 4044 (1/8" SP), 2814 (1/4" S/P) | Special Orders - Requirements |
Cabinet Size: 42.5" x 42.5" x 25" | |
Max Sound Levels @ 5`: 9.5 (sones), 61.20 (db) | |
Wiring: Hard-Wire | |
Mounting: Surface Mount - Vertically Adjustable Trunnion Bracket - Galvanized Steel |
function MM_openBrWindow(theURL,winName,features) { //v2.0
window.open(theURL,winName,features);
}

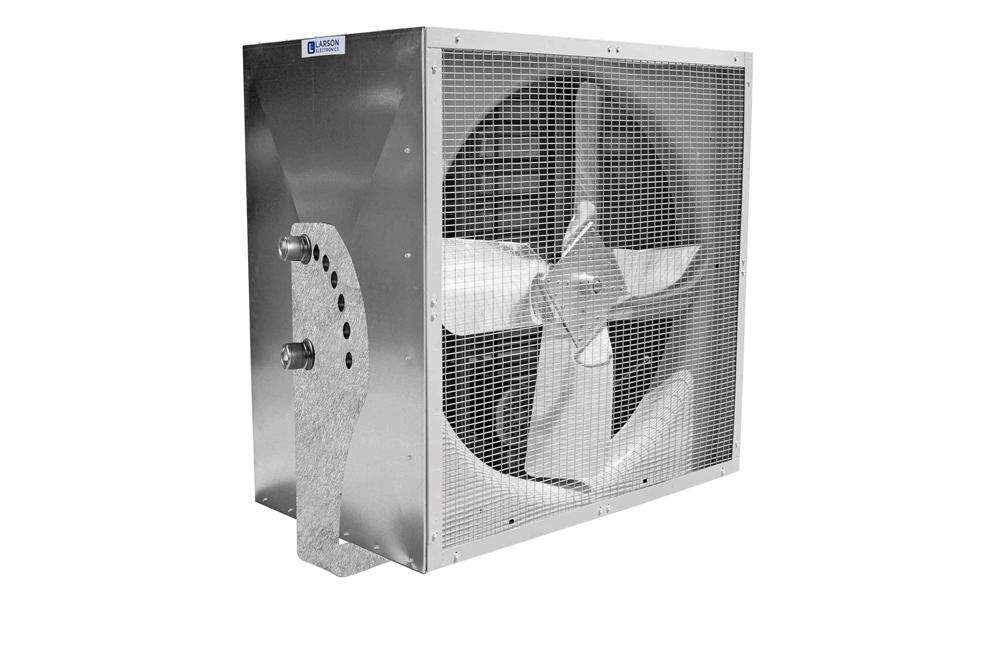

Made in the USA The EPF-CBF-36-0.5HP-TRN from Larson Electronics is an Explosion Proof Industrial Cabinet Fan w/ Surface Mount Trunnion Bracket that operates on 115V/230 V AC multi-voltages. This explosion proof industrial fan features a 36" diameter spark resistant cast aluminum blade for superior ventilation and air movement. The EPF-CBF-36-0.5HP-TRN is powered by a fully enclosed and explosion proof 1/2 horsepower motor. This unit may be used to meet cooling requirements for electronic cabinets, motor control cabinets, fume hoods, air filtration systems and heat exchangers. The EPF-CBF-36-0.5HP-TRN is equipped with a trunnion braket designed for surface mounting. *PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO THIS PRODUCT* The EPF-CBF-36-0.5HP-TRN explosion proof fan is rated for Class I Group D and Class II Groups F & G hazardous environments. The 36" diameter propeller on this explosion proof cabinet fan is constructed from cast aluminum to resist sparking further increasing the safety of the hazardous environment in which the fan is being utilized. This single phase explosion proof industrial fan has a 1/2 horsepower fully enclosed motor. Voltage: The EPF-CBF-36-0.5HP-TRN explosion proof ventilation fan can operate on 115V/230V AC multi-voltages. Wiring: The EPF-CBF-36-0.5HP-TRN features a trunnion bracket that allows it to be mounted on flat surfaces. The bracket is constructed from galvanized steel and allows the fan to be pivoted vertically up and down in order to adjust the direction of the airflow. Due to the weight of the EPF-CBF-36-0.5HP-TRN, it must be mounted on flat surfaces that can support 250+ lb such as reinforced walls, i-beams, etc. Mounting: The EPF-CBF-36-0.5HP-TRN is a hard-wired ventilation fan that should be installed according to national, state and local eletrical and mechanical codes. Applications: Class I Group D and Class II Groups F & G hazardous areas that require ventilation including but not limited to the following: clean rooms, marijuana extraction rooms, laboratory hoods, oil refineries, grain mills, chemical plants, welding shops, chemical storage areas and battery changing areas. |
