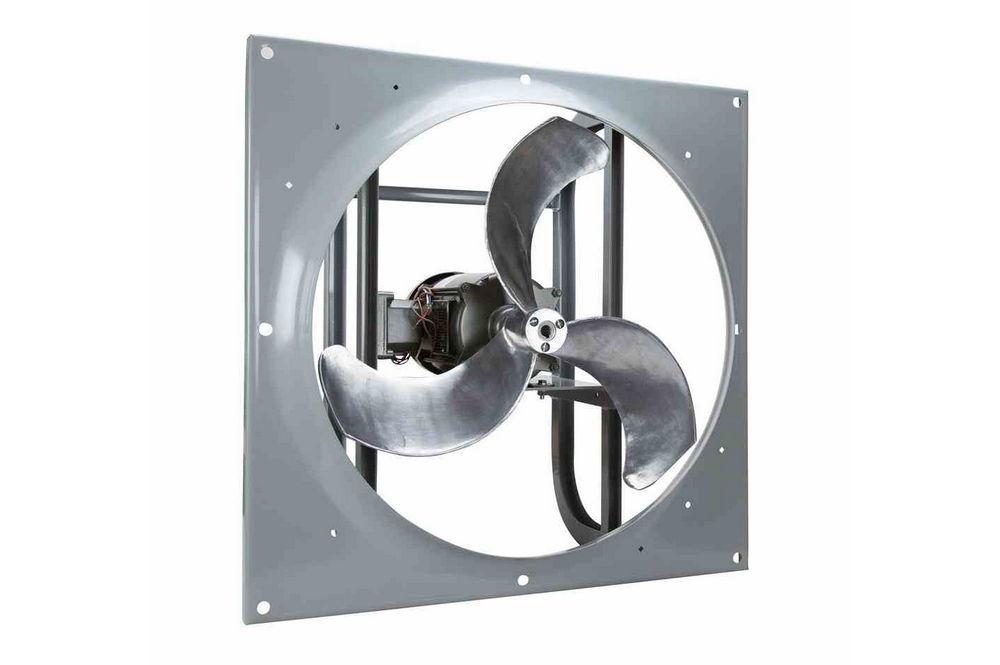

16" Explosion Proof Fan - 2800 CFM - 1/4 HP - 230-460V 3PH - Class 1 Group D, Class 2 Groups F/G
16" Explosion Proof Fan - 2800 CFM - 1/4 HP - 230-460V 3PH - Class 1 Group D, Class 2 Groups F/G
| EPF-HPSM-16-0.25HP-3P Explosion Proof Industrial Fan | Ratings/Features: |
| Type: Explosion Proof Exhaust Fan | Listed for United States and Canada |
| Dimensions: 22" x 13.25" x 15" | Class I, Divisions 1&2 Group D |
| Propeller Dimensions: 16" Diameter | Class II, Divisions 1&2 Groups F,G |
| Weight: 60 lbs | Â |
| Voltage: 230/460V | Â |
| Phase: 3 Phase | Â |
| Frequency: 60 Hz | Â |
| Horsepower: 1/4 | Â |
| CFM: 2,800 | Â |
| RPM: 1,725 | |
| Drive Type: Direct | |
| Speed Settings: 1 | |
| Materials: Steel, Cast Aluminum Spark Resistant Blades | Intl:Â 1-214-616-6180 |
| Mount: Panel/Wall Box/Surface | |
| Wiring: Hard Wire |
| The EPF-HPSM-16-0.25HP-3P from Larson Electronics is an Explosion Proof Fan that operates on three-phase 230-460V AC 60 Hz. This unit contains a 16" diameter spark-resistant cast aluminum blade that moves air at a rate of up to 2,800 cubic feet per minute (CFM) for superior ventilation and air movement. The EPF-HPSM-16-0.25HP-3P is powered by an explosion proof 1/4 horsepower motor. *PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO THIS PRODUCT* The EPF-HPSM-16-0.25HP-3P is rated for Class I, Group D and Class II, Groups F & G hazardous environments. This three-phase explosion proof unit is powered by a 1/4 HP motor that can spin the propeller at a rate of 1,725 RPM and provides up to 2,800 CFM. The direct-drive steel fan features one speed setting and a 16" diameter propeller that is constructed of spark-resistant cast aluminum. Voltage: The industrial fan is multi-voltage capable and can operate on voltages ranging from three-phase 230-460V AC, 60 Hz. Wiring: The EPF-HPSM-16-0.25HP-3P is a hard-wired fan that should be installed according to national, state and local electrical and mechanical codes. Mounting: This explosion proof exhaust fan is compatible with panel, wall box or surface mounting applications. The unit is designed to fit inside conventional frames during installation. Air flow should pass through the back of the fan. Applications: Class I Group D and Class II Groups F & G hazardous areas that require ventilation including but not limited to the following: clean rooms, marijuana extraction rooms, laboratory hoods, oil refineries, grain mills, chemical plants, welding shops, chemical storage areas and battery changing areas. |
