24" Explosion Proof Fan - 7820 CFM - 1 HP - 115-230V - Class 1 Group D & Class 2 Groups F & G Rated

LARSON ELECTRONICSSKU: PL3-EPF-HPSM-24-1HP
filler

Price:
Sale price$6,080.00

Description

Specifications / Additional Information
EPF-HPSM-24-1HP Explosion Proof High Volume Ventilation Fan Ratings/Features:
Type: High Pressure High Volume Ventilation Fan Listed for United States
Propeller Dimensions: 24" Diameter Class I, Divisions 1 & 2, Group D
Propeller Material: Spark-Resistant Cast Aluminum Class II, Divisions 1 & 2, Groups F & G
Weight: 47 lbs Spark-Resistant Propeller
Voltage: Multi-Voltage - 115-230V AC Up To 7820 CFM Air Movement
Motor: 1 HP Fully Enclosed Explosion Proof Rated for Hazardous Environments
Full Load Amps: 13A @ 115V, 6.5A @ 230V Made in the USA
Rotations Per Minutes (RPM): 1750
Peak CFM (@ 0" SP): 7820
Max Sound Levels @ 5`: 35.4 (sones), 79.67 (db)
Wiring: Hard-Wire Toll Free: 1-800-369-6671
Mounting: Permanent Mount Intl: 1-214-616-6180
  Fax: 1-903-498-3364
  E-mail:
' Product Overview '

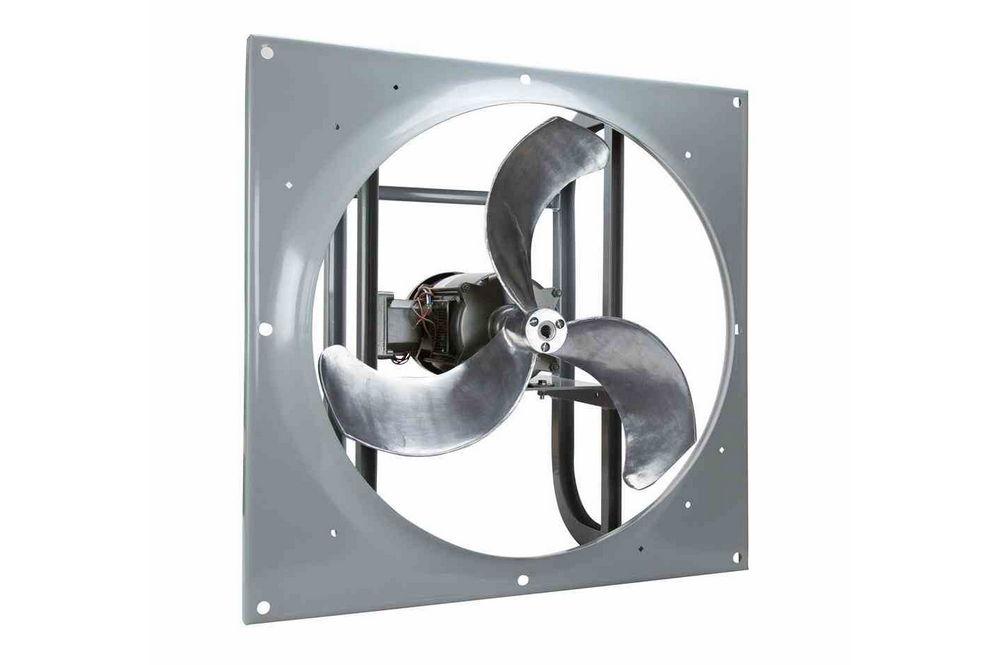

Made in the USA The EPF-HPSM-24-1HP from Larson Electronics is a high pressure, high volume explosion proof ventilation fan that operates on 115-230V AC voltage. This high volume explosion proof ventilation fan features a 24" diameter spark resistant cast aluminum blade that moves air at a rate of up to 7820 cubic feet per minute (CFM) for superior ventilation and air movement. The EPF-HPSM-24-1HP is powered by a fully enclosed and explosion proof 1 horsepower motor. *PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO THIS PRODUCT* The EPF-HPSM-24-1HP explosion proof fan is rated for Class I Group D and Class II Groups F & G hazardous environments. The 24" diameter propeller on this explosion proof high pressure ventilation fan is constructed from cast aluminum to resist sparking further increasing the safety of the hazardous environment in which the fan is being utilized. This single phase explosion proof ventilation fan has a 1 horsepower fully enclosed motor that can spin the propeller at a rate of 1750 RPM. Voltage: The EPF-HPSM-24-1HP explosion proof ventilation fan is multi-voltage capable and can operate on voltages ranging from 115-230V AC. Wiring: The EPF-HPSM-24-1HP is a hard-wired ventilation fan that should be installed according to national, state and local electrical and mechanical codes. Applications: Class I Group D and Class II Groups F & G hazardous areas that require ventilation including but not limited to the following: clean rooms, marijuana extraction rooms, laboratory hoods, oil refineries, grain mills, chemical plants, welding shops, chemical storage areas and battery changing areas.
Made in USA Quality CFM Static Pressure (SP) Ratings
1. Fully enclosed explosion proof 1 HP motor. 2. Spark-resistant cast aluminum 24" diameter propeller. 3. Class I Group D and Class II Groups F & G rated. 4. Multi-voltage capable. 5. Moves up to 7820 cubic feet of air per minute. 6. Fully assembled and ready to install 0" SP - 7820 CFM 2. 1/8" SP - 7690 CFM 3. 1/4" SP - 7450 CFM 4. 3/8" SP - 7070 CFM 5. 1/2" SP - 6450 CFM
