24" Explosion Proof High Velocity Rollback Fan - 6500 CFM - 1/2 HP - 115/230V - C1D1 - C2D1

LARSON ELECTRONICSSKU: PL3-EPF-RSPF-24-0.5HP-100
filler

Price:
Sale price$12,710.00

Description

Specifications / Additional Information
EPF-RSPF-24-0.5HP-100 Explosion Proof Rollback Direct Drive Fan Ratings/Features:
Type: Direct Drive Fan Class I, Division 1 & 2, Group D
Propeller Dimensions: 24" Diameter Class II, Division 1 & 2, Groups F & G
Propeller Material: Non-Sparking Cast Aluminum Non-Sparking Propeller
Weight: 120 lbs Up To 6500 CFM Air Movement
Voltage: 115 or 230V AC Rated for Hazardous Environments
Motor: 1/2 HP Fully Enclosed Explosion Proof Made in the USA
Rotations Per Minutes (RPM): 1725
Peak CFM: 6500
Decibels @ 10`: 80 Toll Free: 1-800-369-6671
Mounting: Rollback Stand Intl:  1-214-616-6180
Wiring: 100` 16/3 SOOW Cable Fax:  1-903-498-3364
Cord Cap: 5-15P, 5-20P, 6-20P - Explosion Proof E-mail:
' Product Overview '

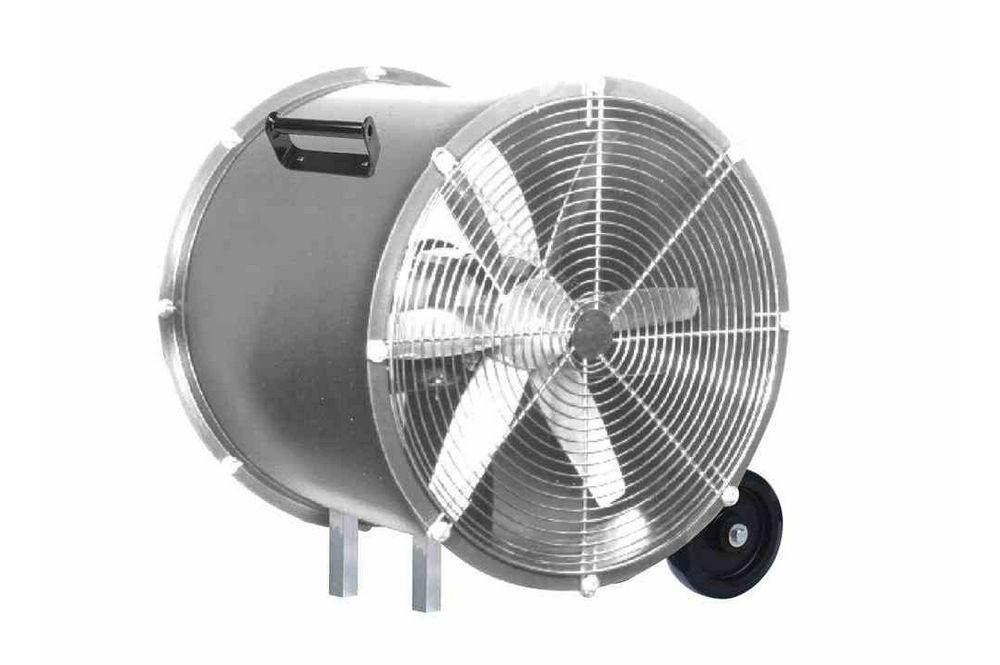

Made in the USA The EPF-RSPF-24-0.5HP-100 from Larson Electronics is a high pressure, high volume explosion proof ventilation fan that operates on 115 or 230V AC. This high volume explosion proof direct drive fan features a 24" diameter non-sparking cast aluminum blade that moves air at a rate of up to 6500 cubic feet per minute (CFM) for superior ventilation and air movement. The EPF-RSPF-24-0.5HP-100 is powered by a fully enclosed and explosion proof 1/2 horsepower motor and features a rollback stand and handle for ease of transportation and workspace maneuverability. The EPF-RSPF-24-0.5HP-100 explosion proof direct drive fan is rated for Class I Group D and Class II Groups F & G hazardous environments. The 24" diameter propeller on this explosion proof direct drive fan is constructed from cast aluminum to resist sparking further increasing the safety of the hazardous environment in which the fan is being utilized. This single phase explosion proof direct drive fan has a 1/2 horsepower fully enclosed motor that can spin the propeller at a rate of 1725 RPM. Voltage: The EPF-RSPF-24-0.5HP-100 explosion proof ventilation fan operates on 115/230V AC. Wiring: The EPF-RSPF-24-0.5HP-100 comes equipped with 100` of 16/3 SOOW cable that is terminated in an explosion proof plug, available in 5-15P, 5-20P, or 6-20P. Stand/Mounting: The EPF-RSPF-24-0.5HP-100 explosion proof direct drive fan comes with a durable rollback stand that includes two wheels and a handle for easy transportation and movement around the workspace. The drum has front and rear propeller guards that meet OHSA standards. The EPF-RSPF-24-0.5HP-100 can be either portable or stationary mounted. Applications: Class I Group D and Class II Groups F & G hazardous areas that require ventilation including but not limited to the following: clean rooms, marijuana extraction rooms, laboratory hoods, oil refineries, grain mills, chemical plants, welding shops, chemical storage areas and battery changing areas.
Click Photos to Enlarge
5-15 Straight Blade Plug 5-20 Straight Blade Plug 6-20 Straight Blade Plug
Wiring & Plug: This explosion proof flood light is equipped with 100 foot of 16/3 chemical and abrasion resistant SOOW cord that is fitted with an explosion proof cord cap for easy connection to explosion proof outlets. Plug options include a 5-15 15 amp straight blade plug for use with 120V explosion proof outlets, a 5-20 20 amp straight blade plug for use with 120V explosion proof outlets, or a 6-20 20 amp straight blade plug for use with 220-240V explosion proof outlets. **PLEASE NOTE** voltage ratings on plugs and outlets are MAXIMUM voltage. For low voltage applications, proper voltage must be applied to the outlet or damage to the light fixture will occur.
Made in USA Quality
1. Fully enclosed explosion proof 1/2 HP motor. 2. Non-sparking cast aluminum 24" diameter propeller. 3. Class I Group D and Class II Groups F & G rated. 4. Multi-voltage capable. 5. Moves up to 6500 cubic feet of air per minute. 6. Fully assembled and ready to install. 7. Rollback stand with wheels and handle for ease of movement. 8. 100` of 16/3 SOOW Cable. 9. Explosion proof plug options 5-15P, 5-20P, or 6-20P
