24" Electric Explosion Proof Fan on Stand - 7980 CFM - Pedestal Mount - 15' 10/3 SOOW Cord - C1D1
24" Electric Explosion Proof Fan on Stand - 7980 CFM - Pedestal Mount - 15' 10/3 SOOW Cord - C1D1
| EPF-SM-24-10.3-15C Hazardous Location Fan | Ratings |
| Unit Type: Hazardous Location Fan (Circular Pedestal) | Class I, Division 1 |
| Dimensions: 24" (Blade Diameter) | Class II, Division 1 |
| Weight: 78 lbs | Direct Drive |
| Voltage: 115V or 208-230V | Thermal Protection |
| Start-up Amps: 9.8A @ 115V, 4.9A @ 208-230V | Made in the USA |
| Motor: 0.50 Horsepower | |
| Phase: 1 | |
| Rotations Per Minute (RPM): 1,725 | |
| Blade Pitch: 14 Degrees | |
| CFM Delivery: 7,980 | |
| Blade Material: Aluminum | |
| Fan Material/Finish: Powder Coated Steel | Toll Free:Â 1-800-369-6671 |
| Wiring: 15` 10/3 SOOW Cable with Explosion Proof Plug | Intl:Â 1-214-616-6180 |
| Cord Cap: 5-15P (115V), 5-20P (115V), 6-20P (208-230V) | Fax:Â 1-903-498-3364 |
| Blade/Fan Color: Metallic/Black | E-mail:Â |
Made in Texas

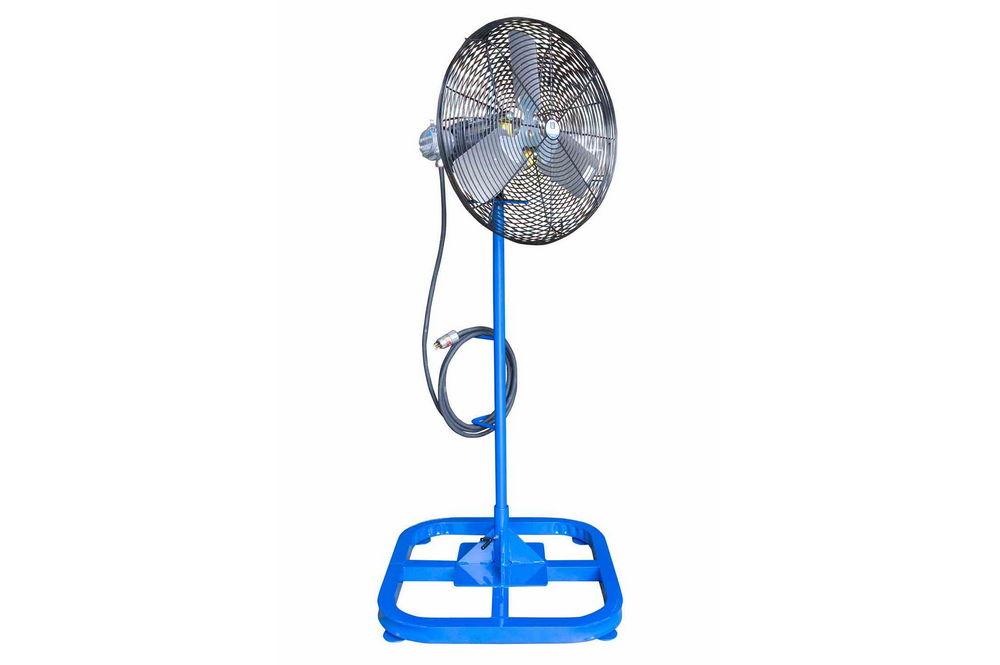

The EPF-SM-24-10.3-15C from Larson Electronics is a Hazardous Location Fan that is designed as a spot cooling fan for use in hazardous atmospheres. This Class I Division 1, Class II Division 1 fan is rated for use in atmospheres that include flammable or explosive vapors, gas, or dusts. Three aluminum fan blades angled at 14 degrees (pitch) offer direct cooling in hazardous locations. The EPF-SM-24-10.3-15C 24" circulation fan comes with a 15` 10/3 SOOW cable and an explosion proof plug for connection to power sources.
*PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO THIS PRODUCT*
This hazardous location fan is equipped with a robust design that is intended to minimize ignition or explosion in the applicable hazardous environment. It is important to note that no fan can be completely explosion proof. However, the EPF-SM-24-10.3-15C hazardous location fan has all the design elements that minimize that risk including aluminum blades and a thermally protected, maintenance-free 1/2 HP motor.
This hazardous location pedestal fan has a 24" diameter and generates over 7,980 CFM of air output for efficient spot cooling. The EPF-SM-24-10.3-15C fan is available in 115V operating at 9.8 amps or 208-230V operating at 4.9 amps. The powder coated steel fan guards offer corrosion resistance and a high degree of durability while the heavy-duty pedestal stand offers a sturdy base. This explosion proof fan weighs 78 pounds, spins at 1,725 RPM and is equipped with 15` of 10/3 SOOW cable and explosion proof plug.
Cord Options: The Larson Electronics EPF-SM-24-10.3-15C hazardous location fan is outfitted with 15` of 10/3 SOOW cable and an explosion proof plug. The 115V model is available with a 5-15 or 5-20 explosion proof plug while the 208-230V model has a 6-20 explosion proof plug.
|
|||||||||
