24" Electric Explosion Proof Fan on Stand - Swivel Casters - 7980 CFM - 24 inch - Pedestal Mount - 5

LARSON ELECTRONICSSKU: PL3-EPF-SM-24-WC
filler

Price:
Sale price$4,686.00

Description

Specifications / Additional Information
EPF-SM-24-WC Hazardous Location Fan Ratings
Unit Type: Hazardous Location Fan (Circular Pedestal) Class I, Division 1
Dimensions: 24" (Blade Diameter) Class II, Division 1
Weight: 78 lbs Direct Drive
Voltage: 115V or 208-230V Thermal Protection
Start-up Amps: 9.8A @ 115V, 4.9A @ 208-230V Four Anti-Static Swivel Casters
Motor: 0.50 Horsepower
Phase: 1
Rotations Per Minute (RPM): 1,725
Blade Pitch: 14 Degrees
CFM Delivery: 7,980
Blade Material: Aluminum
Fan Material/Finish: Powder Coated Steel Toll Free: 1-800-369-6671
Wiring: 50` 16/3 Cable with Explosion Proof Plug Intl: 1-214-616-6180
Cord Cap: 5-15P (115V), 5-20P (115V), 6-20P (208-230V) Fax: 1-903-498-3364
Blade/Fan Color: Metallic/Black E-mail:
' Product Overview '

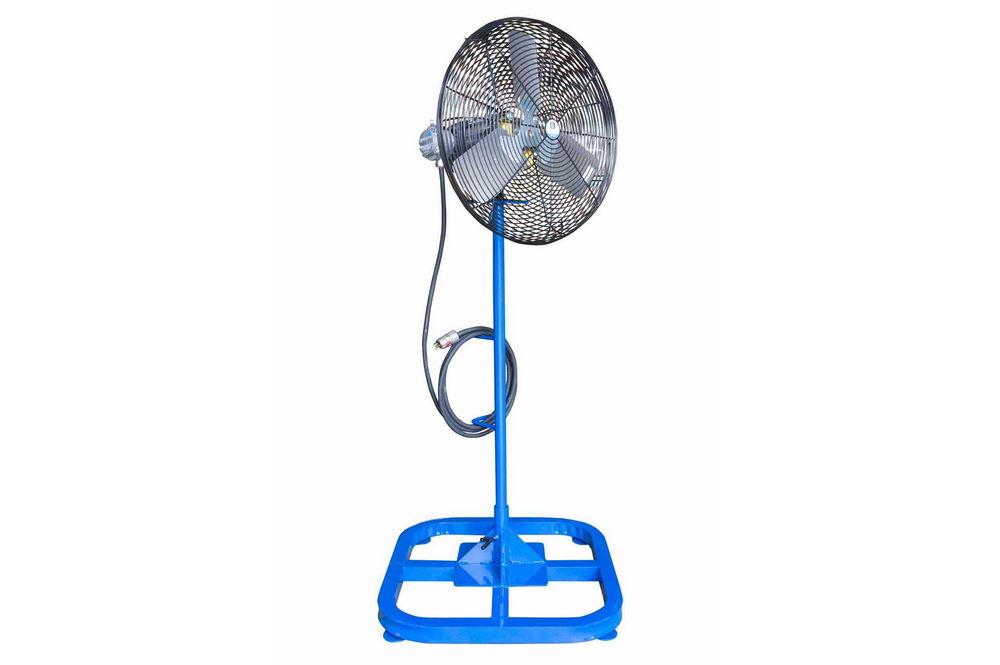

Made in Texas The Larson Electronics EPF-SM-24-WC hazardous location fan with swivel casters is designed as a portable spot cooling fan for use in hazardous atmospheres. This Class I Division 1, Class II Division 1 fan is rated for use in atmospheres that include flammable or explosive vapors, gas, or dusts. Three aluminum fan blades angled at 14 degrees (pitch) offer direct cooling in hazardous locations. The EPF-SM-24-WC 24" circulation fan comes with a 50` 16/3 SOOW cable and an explosion proof plug for connection to power sources. *PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO THIS PRODUCT* This hazardous location fan is equipped with a robust design that is intended to minimize ignition or explosion in the applicable hazardous environment. It is important to note that no fan can be completely explosion proof. However, the EPF-SM-24-WC hazardous location fan has all the design elements that minimize that risk including aluminum blades and a thermally protected, maintenance free 1/2 HP motor. This fan features two swivel casters in the front and two stationary casters in the back made with anti-static stainless steel hardware for seemless wheeling around the workplace. This hazardous location pedestal fan has a 24" diameter and generates over 7,980 CFM of air output for efficient spot cooling. The EPF-SM-24-WC fan is available in 115V operating at 9.8 amps or 208-230V operating at 4.9 amps. The powder coated steel fan guards offer corrosion resistance and a high degree of durability while the heavy-duty pedestal stand offers a sturdy base. The explosion proof fan weighs 78 pounds, spins at 1,725 RPM and is equipped with 50` of 16/3 SOOW cable and explosion proof plug. Cord Options: The Larson Electronics EPF-SM-24-WC hazardous location fan is outfitted with 50` of 16/3 SOOW cable and an explosion proof plug. The 115V model is available with a 5-15 or 5-20 explosion proof plug while the 208-230V model has a 6-20 explosion proof plug.
Click Photos to Enlarge
5-15 Straight Blade Plug 5-20 Straight Blade Plug 6-20 Straight Blade Plug
Wiring & Plug: This hazardous location fan is equipped with 50 feet of 16/3 chemical and abrasion resistant SOOW cord that is fitted with an explosion proof cord cap for easy connection to explosion proof outlets. Plug options include a 5-15 15 amp straight blade plug for use with 120V explosion proof outlets, a 5-20 20 amp straight blade plug for use with 120V explosion proof outlets, or a 6-20 20 amp straight blade plug for use with 220-240V explosion proof outlets. Applications: Hazardous locations, industrial sites, oil and gas facilities, processing plants, construction, aerospace facilities, indoor/outdoor cooling systems and more.
