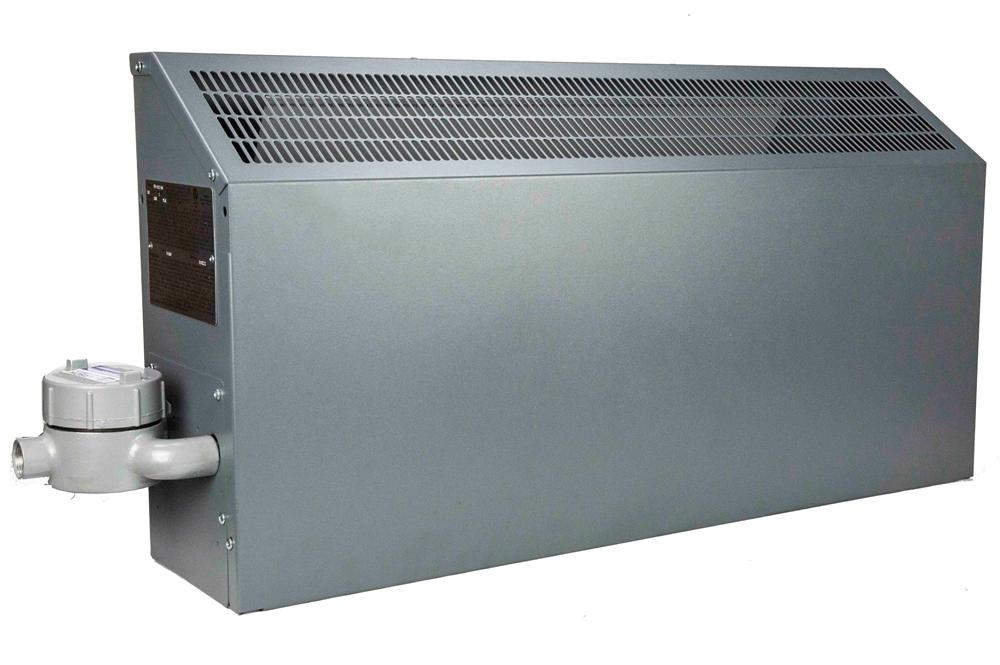

3600W Explosion Proof Convection Heater - Wall Convector - C1D1/2 - 208V 3PH - T2A - Wall Mount

LARSON ELECTRONICSSKU: PL3-EPH-CH-WM-T2A-3.6KW-208V.3P
filler

Price:
Sale price$6,404.00

Description

Specifications / Additional Information
EPH-CH-WM-T2A-3.6KW-208V.3P Wall Convector Ratings/Features
Unit Type: Hazardous Location Convection Heater Class I, Division 1 & 2 Groups B,C,D
Dimensions: 34" x 18" x 9" NEMA 4
Weight: 54 lbs Wall Mount
Voltage: 208V AC
Phase: 3PH
Watts: 3,600W
BTUs: 12,286
Amps: 10A
Airflow: Bottom In - Top Out
Temperature Rating: T2A
Max Ambient Temp: 104°F (40°C)
Materials: Heavy-duty 16 Gauge Steel, SS Cartridge, Aluminum-finned Copper Sheath
Finish: Epoxy Textured Powder Coated Finish
Mount: Wall Mounting Brackets
Minimum Clearance: 9" (Bottom of Heater to Floor)
Color: Gray
' Product Overview '
The Larson Electronics EPH-CH-WM-T2A-3.6KW-208V.3P Hazardous Location Convection Heater offers proactive heating using the natural movement of air in Class I, Divisions 1 & 2 facilities. This 3,600-watt convection heater is designed for three-phase 208V. Operators can mount the NEMA 4-rated unit on walls, with 9" minimum clearance (from the bottom of the heater to the floor). The EPH-CH-WM-T2A-3.6KW-208V.3P is suitable for maintaining adequate airflow and temperatures in Class I, Divisions 1 & 2 work sites. This 3,600-watt wall convector operates on three-phase 208V. During operation, the 10-amp rated unit leverages a standard bottom in, top out air flow configuration. This T2A temperature-rated heater features a slim design for installations in tight spaces. ***Note: This wall convector should not be operated in ambient room temperatures above 104°F (40°C).*** This hazardous location convection heater is constructed of 16 gauge steel with an epoxy textured powder coated finish. For protection in indoor and outdoor work sites, the unit is housed in a NEMA 4 enclosure. Mounting: The EPH-CH-WM-T2A-3.6KW-208V.3P is designed to be mounted on walls via included wall brackets. A 9" minimum clearance, measuring from the bottom of the unit to the floor, must be observed to ensure proper operation. Applications: Manufacturing plants, chemical processing, oil and gas, refineries, industrial control rooms, airflow systems, heat circulation, ambient temperature management, heat exchanger and more.
