20000W Explosion Proof Heater - Fan Forced Heater - 600V 3PH - Skid/cart Mount
20000W Explosion Proof Heater - Fan Forced Heater - 600V 3PH - Skid/cart Mount
| EPH-FH-CD-T3B-20KW-600V.3P Hazardous Location Fan | Ratings/Features |
| Unit Type: Portable Hazardous Location Forced Fan Heater | Class I, Div 1 & 2 Groups C, D |
| Dimensions: 22.5" x 17.75" x 21" (Fan w/o Cart) | Class II, Div 1 & 2 Groups E, F, G |
| Weight: 350 lbs | NEMA 7 |
| Motor Voltage: 600V AC | Manual Reset |
| Control Voltage: 24V | Skid/cart Mount |
| Phase: 3PH | Anti-static Wheels |
| Watts: 20,000W | Forklift Pockets |
| BTUs: 68,300 | |
| Amps: 20 | |
| CFM: 2450 | |
| Air Throw: 43` | |
| Standard Components: Disconnect Switch, Pilot Light, Thermostat, Male/female Plug | |
| Temperature Rating/Rise: T3B/26.2°F | |
| Materials: Aluminum, Stainless Steel | |
| Finish: Powder Coated Epoxy Paint Finish | |
| Mount: Skid/cart Mount w/ Forklift Pockets, Anti-static Wheels | |
| Cord Cap: Pin/sleeve | |
| Color: Gray | |

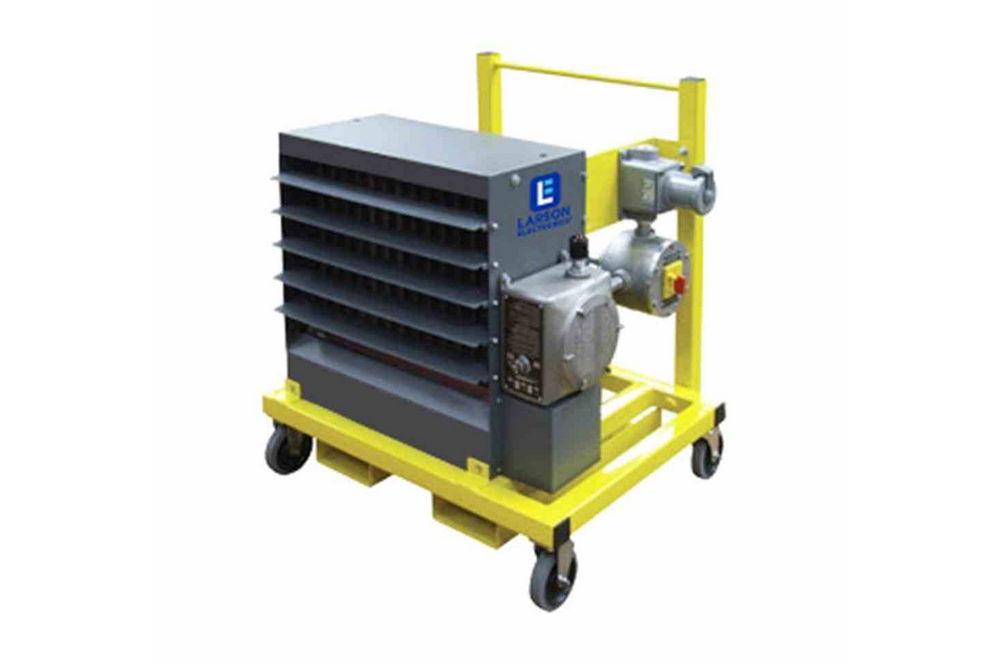

| The Larson Electronics EPH-FH-CD-T3B-20KW-600V.3P Portable Hazardous Location Fan provides active heating in hazardous locations and cold-temperature work sites. This 20,000-watt forced fan heater is compatible with 600V three phase and features an airflow rate of 2450 CFM (43` air throw). Operators can transport and deploy the portable unit around the facility using a skid/cart mount. Standard components include the following: disconnect switch, pilot light, thermostat and male/female plug. The EPH-FH-CD-T3B-20KW-600V.3P is suitable for maintaining adequate temperatures in Class I, Divisions 1 & 2 and Class II, Divisions 1 & 2 work sites. This 20,000-watt portable fan forced heater operates on 600V three phase with 24V control voltage. The 20-amp rated unit supports an airflow rate of 2450 CFM, capable of throwing air as far as 43 feet. This T3B temperature-rated fan features guard shields to protect internal, moving parts. This hazardous location fan forced heater is constructed of 14 gauge steel and aluminum with stainless steel/aluminum pressure relief valves. Versatile louvers allow operators to control the direction of air leaving the fan in real-time. For protection in indoor and outdoor work sites, the unit is housed in a NEMA 7 enclosure. This portable forced fan heater comes with the following standard components: disconnect switch, pilot light, thermostat and male/female plug. Mounting: The EPH-FH-CD-T3B-20KW-600V.3P is mounted on a skid/cart for on-the-go applications. This component features forklift pockets for seamless lifting and transportation. To prevent the release of static discharge, the cart is equipped with anti-static wheels. A pin/sleeve cord cap is available for operators to complete electrical connections when in use. Applications: Heating, manufacturing plants, chemical processing, cold-temperature facilities, farming operations, agricultural sites, flour processing, grain silos and more. Â |
