Larson Explosion Proof UV/Visible Light Fluorescent Fixture - Paint Spray Booth, Rigs - Two Circuit Lamps
Larson Explosion Proof UV/Visible Light Fluorescent Fixture - Paint Spray Booth, Rigs - Two Circuit Lamps

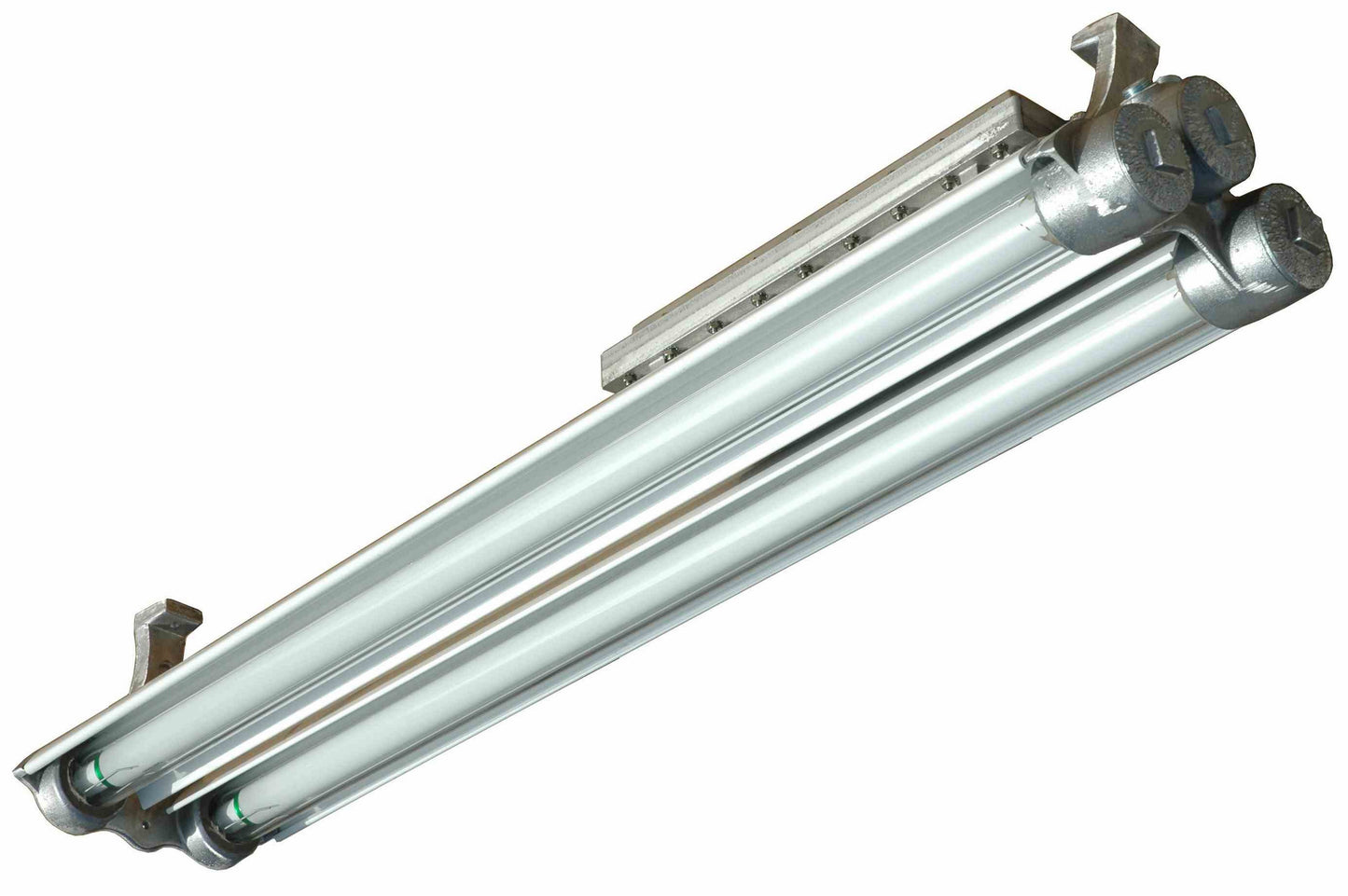

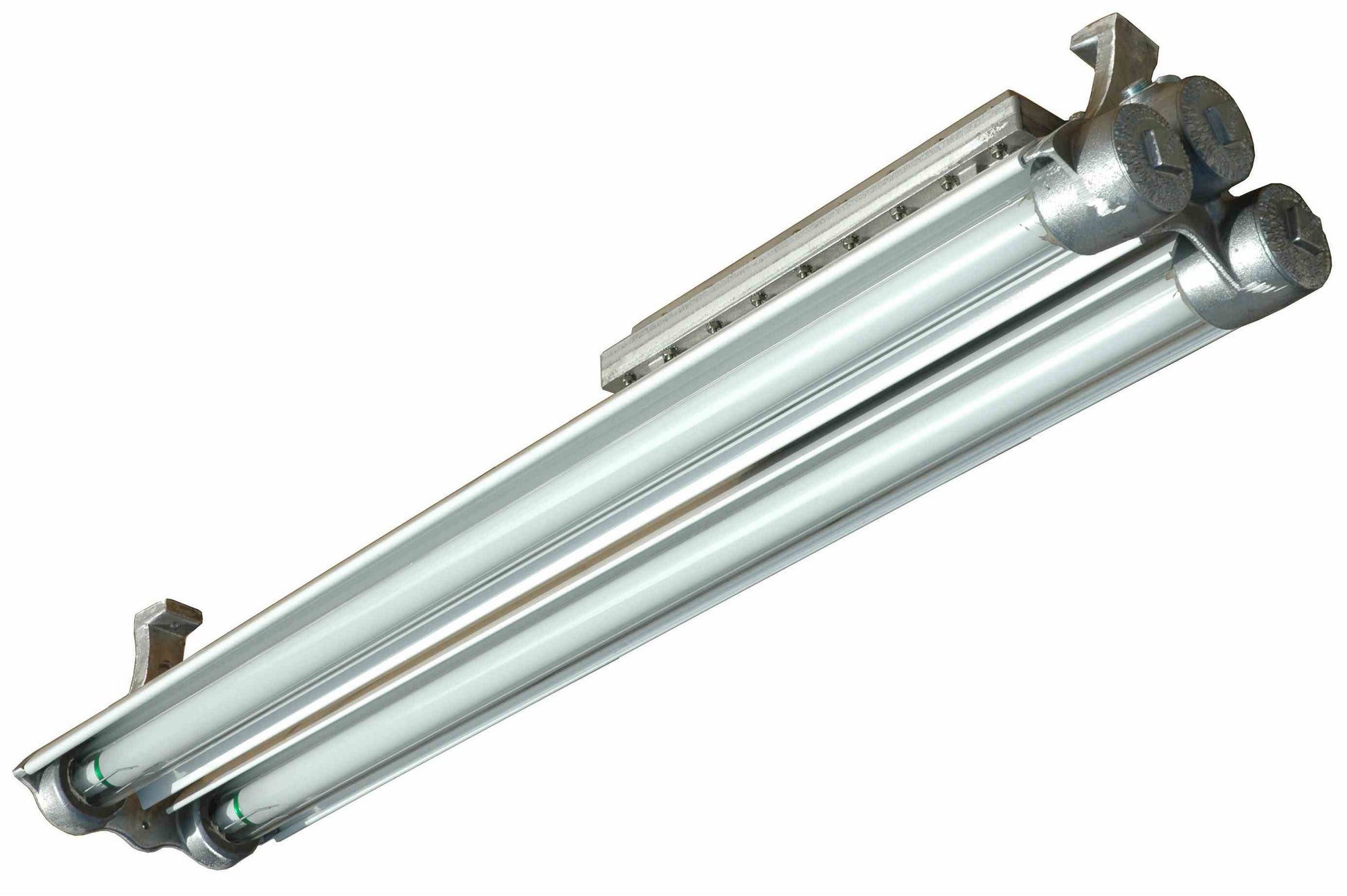

The Larson Electronics EPL-48-2L-T8-VISUVA Explosion Proof UV/Visible Light Fluorescent Fixture is NRTL Listed for United States and Canada, rated Class 1 Division 1 and Class 1 Division 2 for hazardous locations where flammable chemical/petrochemical vapors exist or have the potential to exist. Equipped with one T8 fluorescent lamp and one UVA fluorescent lamp, the NEMA-rated unit carries a T6 temperature rating and is approved for use in paint spray booths.
The EPL-48-2L-T8-VISUVA is a 4 foot long, 2 lamp, Class 1 Division 1 and Class 2 Division 1 & 2 explosion proof fluorescent visible light/UV light combo, which is also approved for paint spray booth applications. Designed to operate on universal 120-277V AC, this T6 temperature rated fixture comes standard with one T8 fluorescent lamp and one UV-A lamp. The T8 fluorescent lamp produces
visible white light at 2,950 lumens, with a 4100K color temperature rating.
The UVA lamp produces UV light in the wavelength range of 400nm - 315nm. Both explosion proof lamps take on a flood beam configuration for comprehensive illumination.
The lamps are protected by heat and impact resistant Pyrex tubes and the fixture is constructed of copper free aluminum alloy. The lamp reflectors are corrosion resistant heavy gauge aluminum and coated with a high gloss reflective finish. This fixture is multi-voltage capable and is available with a variety of lamp options. The EPL-48-2L-T8-VISUVA provides operators in hazardous locations with a reliable and affordable lighting solution that provides the best explosion proof protection available without sacrificing light quality or fixture durability.
T5HO
T8
LED
Wattage
108 watts
64 watts
48 watts
Amp Draw @ 120V AC
0.9 amps
0.54 amps
0.4 amps
Amp Draw @ 277V AC
0.39 amps
0.24 amps
0.18 amps
Amp Draw @ 12V DC
9 amps
5.34 amps
4 amps
Amp Draw @ 24V DC
4.5 amps
2.67 amps
2 amps
Lamp Life Expectancy
20,000 hours
24,000 hours
50,000 hours
Color Temperature
5000K / 4100K
4100K
5300K
Operation cost per year
$34.69
$20.56
$15.42
Wiring:
Two separate wire connections are provided so operators can power on just the white lamp or just the UV lamp. This allows operators to change from an inspection or curing application (UV) to standard inspection or viewing (white light).
Mounting Options:
Unless otherwise specified, our standard, most popular configuration is the bracket end mounting shown enlarged below. We also offer a pendant mount for those needing to suspend the fixture away from the ceiling surface (i.e. suspend from pipe or conduit). Additional mounting configurations can be customized to meet the requirements on the application. Please contact us for special mounting configurations.
Surface Mount (Standard)
Adjustable Surface Mount Brackets:
Each bracket is cinched to the bracket mounting peg on each side of the light. The angle of the bracket is set by tightening two cap screws on either side of the bracket. The cap screws act as a set screw. The bracket itself is mounted via a single bolt hole at the top the bracket. There are two brackets, one on each end of the light. Once the brackets are mounted to a surface (ceiling, floor or wall), the light fixture can be removed from the brackets by loosening the cap screws that hold the bracket to the mounting peg.
Pendant Mount (Optional)
3 Conduit Positions
Suspension Mounting:
Pendant mount fixtures hang from the ceiling and are suspended by rigid pipe. Each fixture features a 1/2” NPT junction box on one end, and a 1/2” NPT adjustable L-bracket on the other end of the fixture. Operators bring rigid pipe down to the threaded mounting hubs. Wiring is fed down through the rigid pipe to the junction box and tied in to the fixture’s lead wires, completing the electrical connection. The adjustable L-shape mounting bracket provides support for the opposite end of the fixture.
Applications:
Chemical processing facilities, food processing plants, oil refineries, agricultural sites, grain storage facilities, metal processing and more.
Contact info@purilite.ca for more information about our custom options tailored to meet your specific industry needs.
Specifications
Lamp Technology: Fluorescent (Visible Light/UV)
Dimensions: W-11.25" x L-52" x H-8.5"
Weight: 65 lbs
Lamp Quantity: 2
Voltage: Universal 120-277V AC, 50/60 Hz
Total Watts: -
Single-lamp Watts: 36W (Visible Light)
Total Lumens: -
Single-lamp Lumens: 2,950 lms (Visible Light)
Luminous Efficiency: 92.19 lm/w (Visible Light)
Lamp Life: 24,000+ Hours
UV Type: UVA - 400nm-315nm
Color Temp: 4100K (Visible Light)
Lamp Type: T8 (Visible Light), F17-T8 UV (UVA Lamp)
Lamp Base: -
Replacement Lamp: -
Beam Angle: 150°
Lighting Configuration: Flood Pattern
Power Efficiency: -
Power Factor: -
Amps: -
Ambient Operating Temp Range: -20°C to +70°C
Temp Rating: T6
Housing Material: Copper Free Cast Aluminum End Caps, Aluminum Reflectors
Lens Material: Hardened Borosilicate Glass Tubes
Gasket Material: Buna Rubber O-Rings
Mounting: Surface Standard - Pendant Optional
Wiring Hub: 1/2" NPT
