Explosion Proof Fluorescent Ultraviolet Light - Class I, II - 4' 2 lamp - Paint Booths, Rigs, Marine - No Reflectors
Explosion Proof Fluorescent Ultraviolet Light - Class I, II - 4' 2 lamp - Paint Booths, Rigs, Marine - No Reflectors
| EPL-48-2L-UV-NR Explosion Proof Ultraviolet Light - No Reflectors | Ratings |
| Lamp Technology: Fluorescent | Class I, Division 1, Groups C and D |
| Lamp Qty: (2) | Class II, Division 1- 2, Groups E,F,G |
| Dimensions: W-11.25" L-52" H-8.5" | NRTL Certified to UL 844, 924 |
| Weight: - | NRTL Certified to UL 1598 Marine Type |
| Total Watts: - | NRTL Certified to UL 595 Outdoor Marine Type (Saltwater) |
| Voltage: Multi- 120V-277V 50/60hz | California Title 24 Compliant |
| Total Lumens: 7,120 lms | NRTL Listed for United States & Canada |
| Single-lamp Lumens: 3,560 lms |  |
| Luminous Efficacy: - |  |
| Lamp Life Expectancy: - |  |
| Color: Ultraviolet- 400nm-315nm, 315nm-280nm, 280nm-100nm |  |
| Color Rendering Index: - |  |
| Lamp Type: F17-T8 UV Bulbs |  |
| Lamp Base: - |  |
| Replacement Lamp: - |  |
| Beam Angle: 360° |  |
| Lighting Configuration: Flood Pattern (No Reflectors) |  |
| Power Efficiency: - |  |
| Power Factor: - |  |
| Amps: - |  |
| Ambient Operating Temp Range:-30°C to 70°C | |
| Operating Temp Rating: T6 Rated | |
| Minimum Operating Temp: -30°C | |
| Maximum Case Temp: 90°C | Intl: 1-214-616-6180 |
| Mounting: Bracket Standard - Pendant Optional | |
| Wiring Hub: 1/2" NPT Threaded |

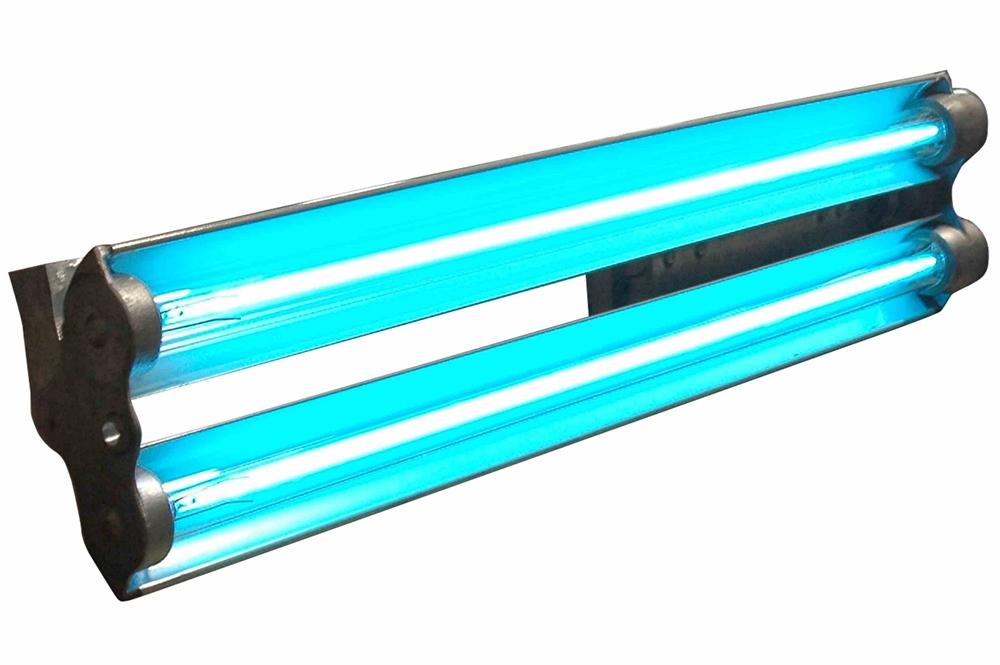

| The Larson Electronics EPL-48-2L-UV-NR Explosion Proof UV Fluorescent Light Fixture is designed for use in Class I, Division 1 and Class II, Division 1 rated combustible sites. This fixture uses a special ballast and bulb combination to produce ultraviolet light. The lamp, which does not contain reflectors, is T6 rated and ideal for hazardous locations where UV lamps are used to cure coatings and adhesives or as germicidal agents. The EPL-48-2L-UV-NR fixture is a 4 foot long, 2 lamp, Class I, Division 1 and Class II, Division 1&2 explosion proof fluorescent light that emits light in the ultraviolet spectrum. The EPL-48-2L-UV-NR is made to order and can be configured to produce UVA, UVB or UVC light which is typically used for curing coatings or adhesives, pest management or in germicidal applications. The lamps are protected by heat and impact resistant Pyrex tubes and the fixture is constructed of copper free aluminum alloy. This fixture can operate on voltages ranging from 120V-277V 50/60Hz and is suitable for use in paint spray booths. The EPL-48-2L-UV-NR does not contain reflectors. This configuration enables full, 360° UV beam coverage. Ultraviolet Wavelength Options: Ultraviolet A Wavelength produces a longer wave between the 400nm - 315nm spectrum. Ultraviolet B Wavelength produces a shorter wave than the UVA wavelength. These medium sized waves range from 315nm - 280nm. Ultraviolet C wavelength is reduced exceptionally. Some refer to this wave as the `germicidal` wave. The Ultraviolet C Wavelength ranges from 280nm - 100nm. | ||||
|
||||
| Mounting Options: Unless otherwise specified, our standard, most popular configuration is bracket-end mounting. We also offer a pendant mount for those needing to suspend the fixture away from the ceiling surface (i.e. suspend from pipe or conduit). Additional mounting configurations can be customized to meet the requirements on the application. Please contact us for special mounting configurations. Adjustable Surface Mount Brackets: Each bracket is cinched to the bracket mounting peg on each side of the light. The angle of the bracket is set by tightening two cap screws on either side of the bracket. The cap screws act as a set screw. The bracket itself is mounted via a single bolt hole at the top the bracket. There are two brackets, one on each end of the light. Once the brackets are mounted to a surface (ceiling, floor or wall), the light fixture can be removed from the brackets by loosening the cap screws that hold the bracket to the mounting peg. Suspension Mounting: Pendant mount fixtures hang from the ceiling and are suspended by rigid pipe. Each fixture features a 1/2†NPT junction box on one end, and a 1/2†NPT adjustable L-bracket on the other end of the fixture. Operators bring rigid pipe down to the threaded mounting hubs. Wiring is fed down through the rigid pipe to the junction box and tied in to the fixture’s lead wires, completing the electrical connection. The adjustable L-shape mounting bracket provides support for the opposite end of the fixture. Suggested Applications: Paint spray booths, aircraft maintenance, oil drilling rigs, refineries, solvent and cleaning areas, gas processing plants, chemical manufacturing, waste water treatment plants, offshore applications and more. |
