Description
Specifications / Additional Information
EPL-EMG-LED-50W-RT-JB2 - C1D1 High Bay LED Light | Ratings/Approvals |
Listing: United States - Canada | Listed for United States and Canada |
Lamp Type: LED | Class I, Divisions 1 & 2, Groups C,D |
Dimensions: 7.04" L x 7.04" H x 5.72" D (Lamp Head Only) | Class II, Divisions 1 & 2, Groups E,F,G |
Weight: 7 lbs (Lamp Head Only) | Class III, Divisions 1 & 2 |
Voltage: 100-277 Volts AC, 50/60Hz or 11-25 Volts AC/DC | NRTL Certified to UL 844 Ed. 13 |
Total Watts: 50W | NRTL Certified to UL 1598 |
Total Lumens: 7,000 | Certified to C22.2 No. 137 Rev 2009 |
Luminous Efficacy: 140 Lm/W | Certified to C22.2 No. 250.0 |
Lamp Life: 60,000+ Hours | Certified to C22.2 No. 30-M-1986 Rev 2012 |
Color Temp: 5600K, 4500K, 3000K | T5 Temperature Rating |
Color Rendering Index: >75 CRI | Paint Spray Booth Approved |
Beam Angle: 60° or 125° | IEC 60529 Tested |
Lighting Configuration: Flood Pattern | IP67 Rated Waterproof |
Power Efficiency: >95% | LEL Approved |
Power Factor: 0.992 | Single LED Driver |
Ambient Operating Temp Range: -50° C to +65°C | 80% Lumen Retention after 60,000 Hours |
Operating Temp Rating: T5 | Factory Sealed Light Fixture |
Housing Material: Copper Free Cast Aluminum | Recommended 15` to 40` Mounting Height |
Housing Finish: Epoxy Powder Coated - Grey | 90 Min. Emergency Backup |
Lens Material: Hardened Borosilicate Glass | |
Gasket Material: Silicone | |
Mounting: Adjustable Flat Surface Mount Trunnion U-Bracket | Toll Free:Â 1-800-369-6671 |
Wiring: 10` 16/3 SOOW w/ Flying Leads | Intl:Â 1-214-616-6180 |
Wiring Hubs: (5) 3/4" NPT Threaded Hubs | Fax:Â 1-903-498-3364 |
Emergency Mode Runtime: 90 Minutes |

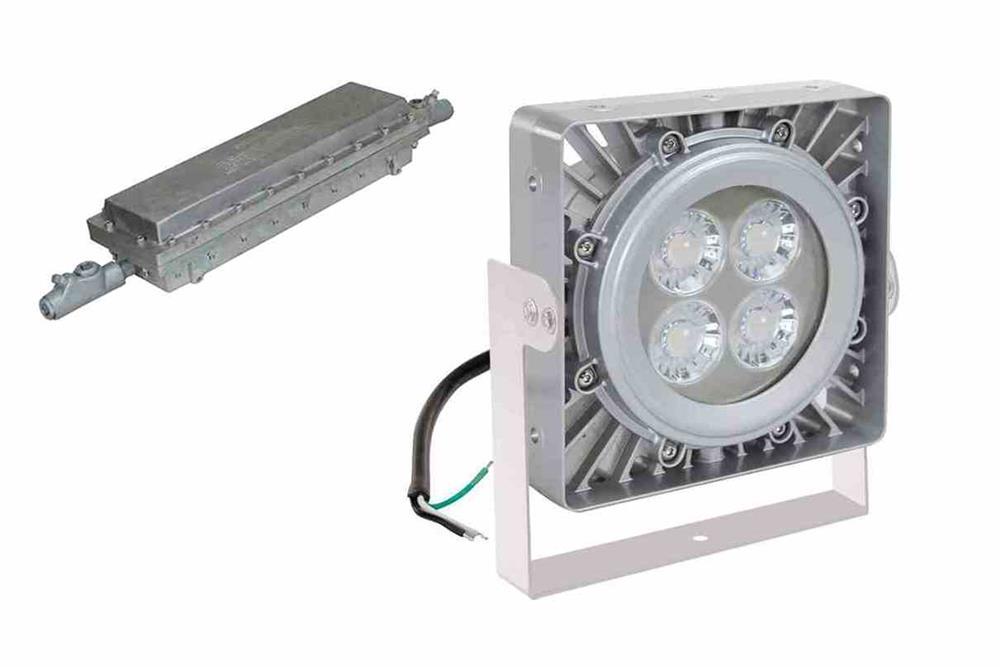

The Larson Electronics EPL-EMG-LED-50W-RT-JB2 Explosion Proof High Bay Light Fixture with Emergency Backup provides operators with a powerful and energy efficient alternative to traditional hazardous location luminaries. LED technology and compact design makes this lamp an excellent replacement upgrade option for bulky and older incandescent, metal halide and high pressure sodium lights. This unit features an adjustable surface mount bracket for secure installations. In emergency mode, the LED lamp will continue to operate at a lower light intensity level for 90 minutes via a remote battery.
This Class I Division 1 & 2, Class II Division 1 & 2 explosion proof emergency light fixture provides 7,000 lumens of high quality light while drawing only 50 watts. The copper free aluminum alloy body is powder coated for added durability and an attractive aesthetic appearance. Special heat dissipating design in conjunction with LED technology helps this fixture to achieve an excellent 60,000 hour rated lifespan with 80% lumen retention. Light weight and a low profile make this unit an attractive alternative to larger and heavier older fixtures and requires less hardware to install. The EPL-EMG-LED-50W-RT-JB2 explosion proof high bay LED light also offers operators convenience in the form of field serviceability.
The emergency LED light works, mounts and is wired like our EPL-HB-50LED-RT-CM LED light fixtures. The main difference is that we add a remote mounted battery backup unit that adds emergency light functionality to the fixture. This emergency LED light will run at the standard UL suggested 90 minutes after power is lost. The light recharges the battery once electrical power is restored. Standard configuration includes a single emergency battery backup that is automatically recharged and kept in a ready state.
LED Benefits: Unlike gas burning and arc type lamps that have glass bulbs, LEDs have no filaments or fragile housings to break during operation and/or transportation. Instead of heating a small filament or using a combination of gases to produce light, light emitting diodes (LEDs) use semi-conductive materials that illuminate when electric current is applied, providing instant illumination with no warm up or cool down time before re-striking. Because there is no warm up period, this light can be cycled on and off with no reduction in lamp life.
LED lights run at significantly cooler temperatures than traditional metal halide and high pressure sodium lights and contain no harmful gases, vapors, or mercury, making them both safer and more energy efficient. No extra energy is wasted in cooling enclosed work areas due to external heat emissions from bulb type lights, and the operator risks associated with traditional lighting methods, such as accidental burns and exposure to hazardous substances contained in the glass bulbs, are eliminated. In addition, LEDs are also safer for the environment as they are 100% recyclable, which eliminates the need for costly special disposal services required with traditional gas burning and arc type lamps.
LED Drivers: Even in LED fixtures, heat is the single largest factor in premature light failure and color shifting. As a result, many manufacturers reduce the output of their LEDs in order to reduce the amount of heat produced. Rather than lower light output or quality, Larson Electronics addresses this problem with the addition of an electronic LED driver. This internal driver provides the ability to automatically monitor and adjust input current to maintain the correct LED voltage levels regardless of input levels across a specific range. This not only reduces the energy dissipation, effectively lowering the operating temperature of the fixture, but also prevents AC over-voltage and short circuit loading making this fixture virtually maintenance free. Because the electronic driver allows the EPL-EMG-LED-50W-RT-JB2 to run at a cooler internal temperature and regulates the electrical current, energy efficiency and LED service hours are maximized while at the same time reducing operating costs and downtime incurred from the frequent servicing intervals required with other hotter running lights.
This light is universal voltage capable and can be operated with 100-277 VAC, 50/60Hz. We also offer a low voltage version of this LED fixture that operates on AC/DC voltages from 11-25 Volts. This explosion proof LED light fixture is IP67 rated, dust-proof, and protected against high pressure jets and temporary submersion. The cast aluminum body and LED lamp give this light excellent durability and resistance to vibration and impacts. The housing is specially designed to dissipate heat which increases the efficiency and lifespan of the LEDs and electronics.
Wiring: The EPL-EMG-LED-50W-RT-JB2 explosion proof high bay LED light fixture is equipped with 10 feet of abrasion and chemical resistant 16/3 SOOW cable with flying leads. The LED light fixture features 5 3/4" NPT threaded ports for running conduit depending on the installation location. Four of the ports are located on the corners of the unit and the fifth port is found on the rear of the explosion proof high bay LED fixture.
|
