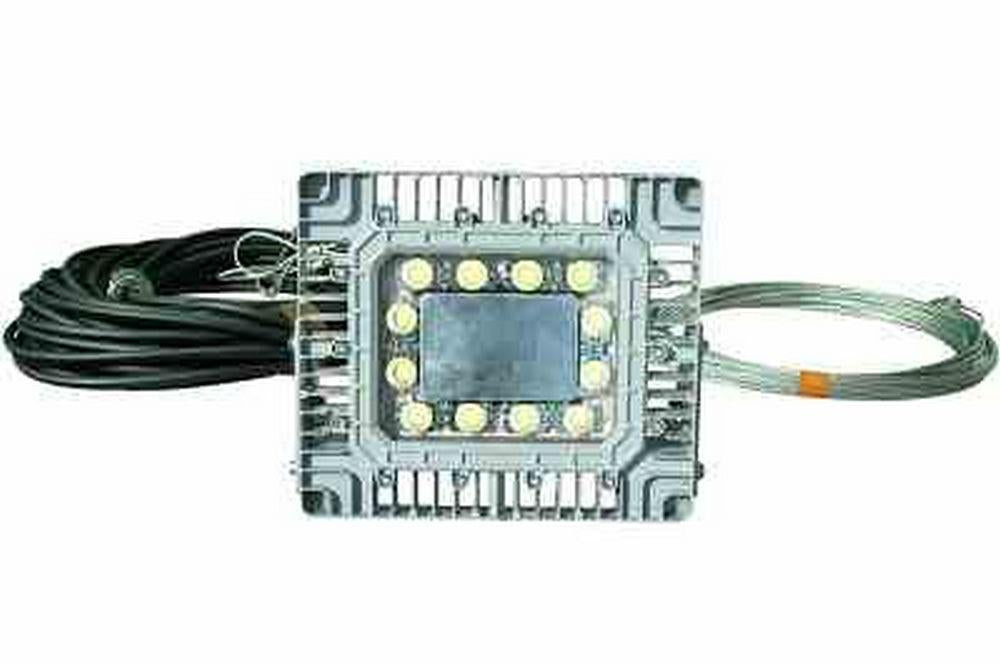

C1D1 Explosion Proof 150 Watt LED Light Fixture - 50ft 16/3 Steel Braided Cable - EXP Plug
C1D1 Explosion Proof 150 Watt LED Light Fixture - 50ft 16/3 Steel Braided Cable - EXP Plug
| EPL-HB-150LED-RT-50SBW-1523 | Ratings/Approvals |
| Lamp Type: Cree LED | Class 1 Division 1 & 2, Groups C and D |
| Dimensions: 14"H x 16"W 5"D | Class 2, Divisions 1 & 2, Groups E,F,G |
| Weight: 40lbs | Class 3, Divisions 1 & 2 |
| Total Watts: 150W | T5 Temperature Rating |
| Total Lumens: 21,000 | Certified to UL844 and C22.2 Standards |
| Luminous Efficacy: 140 Lm/W | Paint Spray Booth Approved |
| Voltage: 347-480V AC | LEL Approved |
| Lighting Configuration: Flood Pattern | IP67 Rated Waterproof |
| NEMA Type (Lighting): 6H x 6V (60° Optics); 6H x 6V (125° Optics); 6H x 7V (140° Optics) | Multiple Driver Banks |
| IES Classification: Type I (60° Optics); Type VS (125° Optics); Type VS (140° Optics) | 80% Lumen Retention after 60,000 Hours |
| Longitudinal Classification: Very Short (60° Optics); Very Short (125° Optics); Short (140° Optics) | |
| Cutoff Classification: Cutoff | |
| CIE Type: Direct | |
| BUG Rating: B5-U1-G1 (60° Optics); B4-U1-G1 (125° Optics); B4-U1-G2 (140° Optics) | |
| Temp Rating: T5 -50C to +65C | |
| Color Temp: 5600K, 5000K, 4500K, 4000K, 3500K, 3000K, 2700K, or 6500K | |
| Color Rendering Index: >75 CRI | Toll Free:Â 1-800-369-6671 |
| Lamp Life: 60,000+ Hours | Intl:Â 1-214-616-6180 |
| Mounting:50ft steel braided cable | Fax:Â 1-903-498-3364 |
| Wiring: 100ft SOOW cable w/ 15AÂ EXP plug | E-mail:Â |
| The Larson Electronics EPL-HB-150LED-RT-50SBW-1523 Explosion Proof suspended light fixture provides operators with a powerful and energy efficient alternative to traditional hazardous location luminaries. Cree LED technology and compact design makes this lamp an excellent replacement upgrade option for bulky and high maintenance cost older fixtures. This Class 1 Division 1 & 2, Class 2 Division 1 & 2 explosion proof light fixture provides 21,000 of high quality light while drawing only 150 watts. The copper free aluminum alloy body is powder coated for added durability and an attractive aesthetic appearance. Special heat dissipating design in conjunction with LED technology helps this fixture to achieve an excellent 60,000 hour rated lifespan with 80% lumen retention. Light weight and a low profile make this unit an attractive alternative to larger and heavier older fixtures and requires less hardware to install. | ||||
|
||||
This light is multi-voltage capable and can be operated with 100-277 VAC, 50/60Hz without any need for a special ballast. The light is equipped with 100 foot of SOOW cable and terminated in an explosion proof 5-15 plug. The aluminum body and LED lamp give this light excellent durability and resistance to vibration and impacts. The housing is specially designed to dissipate heat which increases the efficiency and lifespan of the LED luminaries. The LED lamp produces 21,000 lumens with a color temperature of 5000K, 4000K, or 3000K and a color rendering index of 75 which produces colors and details much more accurately than high pressure sodium or mercury vapor luminaries. The EPL-HB-150LED-RT offers several mounting options including ceiling mounting, pendant mounting, wall mounting and cable mounting. This particular fixture ships with a swivel bracket and safety cables to suspend the light within grain towers and elevators.
|
