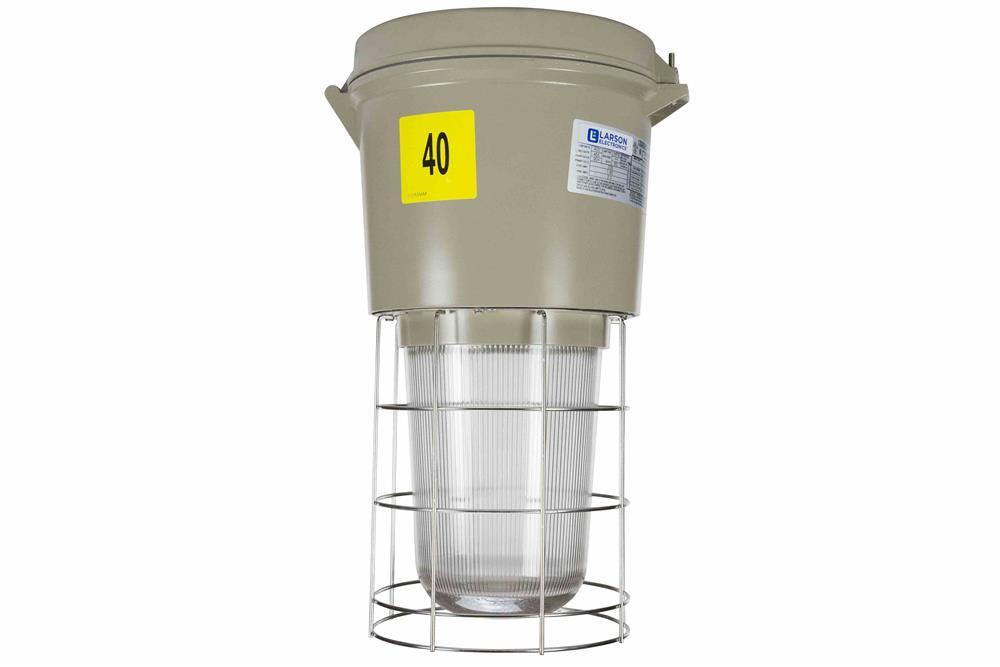

Explosion Proof Light - 400 Watt High Pressure Sodium - 220V or 240V -Class 1 Div 1 & Class 2 Div 1

LARSON ELECTRONICSSKU: PL3-EPL-HB-400W-HPS-50HZ
filler

Price:
Sale price$3,174.00

Description

Specifications / Additional Information
EPL-HB-400W-HPS-50HZ Explosion Proof high pressure sodium U.L Ratings
Lamp Type: high pressure sodium Class 1 Div 1 & 2 -Groups C, D T3B
Lamp Dimensions: 19"-L,  12"-OD,   20"-Relfector OD Class 2 Div 1 & 2, Groups E, F, G
Ballast: Pulse Start / Multi-Tap Class 3
Watts: 400 NEMA 4X
Lumens Per Watt: 90 UL 1598 Marine
Voltage: 220V @ 50 Hz or 240V AC @ 50 Hz UL 844
Lighting Configuration: Flood Pattern Suitable for Wet Locations
Mounting: 3/4" Ceiling, Wall or Pendant mount
Lamp Weight: 56lbs
U.L. Listing: Class1 DIV 1&2 Groups C,D Toll Free: 1-800-369-6671
Total Lumens:  36,000 Intl: 1-214-616-6180
Wiring:  3/4 inch Conduit Fax: 1-903-498-3364
Temp Rating: 165C-T3B E-mail:
' Product Overview '
Made in the USA The EPL-HB-400W-HPS-50HZ high pressure sodium, hazardous area light fixture from Larson Electronics produces 36,000 lumens of light capable of illuminating an area 18,000 square feet in size. Weather proof and U.L. listed for marine use, this high pressure sodium fixture is available in pendant, ceiling or wall mount versions and is an ideal choice for industrial applications and use in enclosed spaces. The versatile EPL-HB-400W-HPS-50HZ high pressure sodium fixture from Larson Electronics is approved for use in wet marine locations and is ideal for industrial applications, confined spaces, hazardous work areas and Class 1 DIV 1 & 2 areas where a powerful and durable floodlighting solution is needed. The lamp housing is weatherproof and constructed of cast aluminum featuring a heavy duty, mogul base lamp socket, tempered and heat resistant glass dome and cast aluminum dome guard. This unit is available in pendant, ceiling  and wall mount versions and includes stainless steel exterior hardware for added resistance to the salt water conditions found in marine environments.


This hazardous area light is U.L. rated Class 1 Division 1 and 2, Groups C and D and UL1598 listed for outdoor marine use and approved for hose down conditions. This lamp runs on an option of either 220V AC @ 50 Hz or 240V AC @ 50 Hz and is suitable for use in confined spaces and areas where wet marine conditions exist. The multi-purpose floodlight design of this fixture makes it a popular choice for industrial and marine applications regardless of whether the locations are designated hazardous or not. The aluminum fixture body is electrocoated for durability and corrosion resistance while a tempered glass globe protected by an aluminum globe guard provides lamp security against impacts and the elements. Wiring: This light is highly durable and produces high 36,000 lumen light output in a wide flood pattern. Wiring is through a convenient ¾ inch NPT conduit entrance. Three-conductor No. 14 cable (with 90° C minimum insulation) is recommended for making electrical connections. Wiring is accomplished through the wiring enclosure provided on the fixture. The box is provided with a size 3/4-in. NPT threaded conduit opening. Wiring methods must comply with NFPA 70 (The National Electrical Code). Suggested applications: ship yards, boat yards, plants, tanks, vessels, fuel cells, barges and oil field applications.
Made in the USA Quality high pressure sodium Benefits
1. High Efficiency high pressure sodium lamp. 2. 90 Lumens per Watt. 3. Rugged Die Cast Aluminum Lamp Housing. 4. Shock Resistant Tempered Glass. 5. Heavy Duty Gasket. 6. Socket: Mogul Base. 7. Low Maintenance. 8. Corrosion Resistant Marine Approved. 9. Stainless Hardware. 10. UL Listed for Marine Environments. 1. Long lamp life. 2. High efficiency and low amp draw after initial startup. 3. High durability and reliability. 4. High output and very good color rendering. 5. Vibration and shock resistant. 6. Low maintenance.
