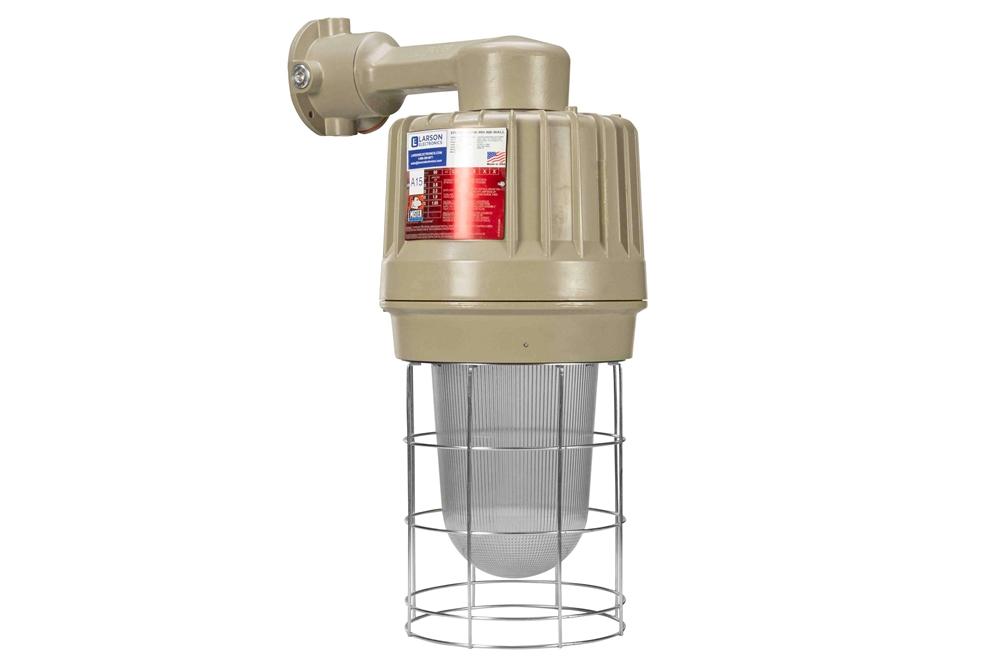

Explosion Proof Light - 400 Watt Metal Halide - NO BALLAST - For Hot Box Applications
Explosion Proof Light - 400 Watt Metal Halide - NO BALLAST - For Hot Box Applications
| EPL-HB-400W-MH-NB Explosion Proof Metal Halide | U.L Ratings |
| Lamp Type: Metal Halide | Class 1 Div 1 & 2 -Groups C, D T3B |
| Lamp Dimensions: 19"-L,  12"-OD,   20"-Relfector OD | Class 2 Div 1 & 2, Groups E, F, G |
| Ballast: SOLD SEPARATELY | Class 3 |
| Watts: 400 | NEMA 4X |
| Lumens Per Watt: 90 | UL 1598 Marine |
| Voltage: Multi-Tap -120, 208, 240 and 277 Volts | UL 844 |
| Lighting Configuration: Flood Pattern | Suitable for Wet Locations |
| Ambient Temp Range: -20°C to +205°C (-4°F to 400°F) | Bulb NOT Included |
| Mounting: 3/4" Ceiling, Wall or Pendant mount | |
| Lamp Weight: 56lbs | |
| U.L. Listing: Class1 DIV 1&2 Groups C,D | |
| Total Lumens: 36,000 | Toll Free: 1-800-369-6671 |
| Wiring: 3/4 inch Conduit | Intl: 1-214-616-6180 |
| Fax: 1-903-498-3364 | |
|  | E-mail: |
|  |
| Made in the USA The EPL-HB-400W-MH-NB metal halide, hazardous area light fixture from Larson Electronics produces 36,000 lumens of light capable of illuminating an area 18,000 square feet in size. Weather proof and U.L. listed for marine use, this metal halide fixture is available in pendant, ceiling or wall mount versions and is an ideal choice for industrial applications and use in enclosed spaces. This unit is designed for use with a remote ballast for hot box applications. The versatile EPL-HB-400W-MH metal halide fixture from Larson Electronics is approved for use in wet marine locations and is ideal for industrial applications, confined spaces, hazardous work areas and Class 1 DIV 1 & 2 areas where a powerful and durable floodlighting solution is needed. The lamp housing is weatherproof and constructed of cast aluminum featuring a heavy duty, mogul base lamp socket, tempered and heat resistant glass dome and cast aluminum dome guard. This unit is available in pendant, ceiling  and wall mount versions and includes stainless steel exterior hardware for added resistance to the salt water conditions found in marine environments. | |||||
|
|||||
This hazardous area light is U.L. rated Class 1 Division 1 and 2, Groups C and D and UL1598 listed for outdoor marine use and approved for hose down conditions. The EPL-HB-400W-MH-NB contains no ballast. These lamps are used for high heat applications, where the ballast is located in an external location. The ballast is sold separately. The multi-purpose floodlight design of this fixture makes it a popular choice for industrial and marine applications regardless of whether the locations are designated hazardous or not. The aluminum fixture body is electrocoated for durability and corrosion resistance while a tempered glass globe protected by an aluminum globe guard provides lamp security against impacts and the elements.
Wiring: This light is highly durable and produces high 36,000 lumen light output in a wide flood pattern. Wiring is through a convenient ¾ inch NPT conduit entrance. Wiring is accomplished through the wiring enclosure provided on the fixture. The box is provided with a size 3/4-in. NPT threaded conduit opening. Wiring methods must comply with NFPA 70 (The National Electrical Code).
Hot Box Application: This unit is designed for use with a remote ballast high temp operations commonly referred to as "hot box" applications. The remote ballast is not included. The customer must take care of the ballast and mounting the ballast, commonly done in a ballast room, and run customer provided wire from the ballast to the lamp. Using a remote ballast allows the ballast to remain cool while the fixture itself is in a hot box application, extending the longevity of the ballast by not exposing it to heat which is the primary factor that shortens ballast lifespan. Having the ballast mounted remotely from the fixture reduces the weight of the fixture.
18 AWG – up to 30 feet
16 AWG – up to 50 feet
14 AWG – up to 75 feet
12 AWG – up to 125 feet
10 AWG – up to 200 feet
Please Note: This fixture does not include bulb. Please see related items for replacement lamp.
Suggested applications: ship yards, boat yards, plants, tanks, vessels, fuel cells, barges and oil field applications.
|
