50W Explosion Proof Low Bay LED Light - 120-277VAC Stepped Down 12/24VDC
50W Explosion Proof Low Bay LED Light - 120-277VAC Stepped Down 12/24VDC
常规价格
$4,984.00 CAD
常规价格
促销价
$4,984.00 CAD
结账时计算的运费。
Specifications / Additional Information
| EPL-HB-50LED-RT-JB2-XLV-C1D1-12.3-150-EPP Explosion Proof LED Light Fixture w/ Adjustable Trunnion Mount | Ratings/Approvals |
| Lamp Type: LED | Listed for United States and Canada |
| Dimensions: 7.04" L x 7.04" H x 5.72" D | Class I, Divisions 1 & 2, Groups C and D |
| Watts: 50W | Class II, Divisions 1 & 2, Groups E, F and G |
| Voltage:120-277V AC Stepped Down to 12V DC or 24V DC | Class III, Divisions 1 & 2 |
| Lumens:7,000 | Certified to UL 844 Ed. 13 |
| Luminous Efficacy: 140 Lm/W | Certified to UL 1598 |
| LED Light Color: 3000K, 4500K & 5600K | Certified to C22.2 No. 137 Rev 2009 |
| LED Life Expectancy: 60,000 hours | Certified to C22.2 No. 250.0 |
| Lighting Configuration: Flood | Certified to C22.2 No. 30-M-1986 Rev 2012 |
| NEMA Type (Lighting): 6H x 6V (60° Optics); 6H x 6V (125° Optics); 6H x 7V (140° Optics) | T5 Temperature Rating |
| IES Classification: Type I (60° Optics); Type VS (125° Optics); Type VS (140° Optics) | Paint Spray Booth Approved |
| Longitudinal Classification: Very Short (60° Optics); Very Short (125° Optics); Short (140° Optics) | IEC 60529 Tested |
| Cutoff Classification: Cutoff | IP67 Rated Waterproof |
| CIE Type: Direct | |
| BUG Rating: B3-U1-G0 (60° Optics); B3-U1-G0 (125° Optics); B3-U1-G1 (140° Optics) | |
| Flood Beam Angle: 60º or 125º |  |
| Ambient Operating Temp Range: -50°C to +65°C |  |
| Wiring: 150` 12/3 SOOW Between Transformer & Light - 10` 16/3 SOOW Between Transformer & Plug ; junction box for wiring | |
| Cord Cap Options: 15-Amp 5-15 (125V), 20-Amp 5-20 (125V), or 20-Amp 6-20 (250V) | |
| Housing Material:Â Copper Free Cast Aluminum | Toll Free:Â 1-800-369-6671Â |
| Housing Color: Epoxy Powder Coated - Grey | Intl:Â 1-214-616-6180 |
| Lens Material: Hardened Borosillicate Glass | Fax:Â 1-903-498-3364 |
| Mounting: Adjustable Trunnion Mount | E-mail:Â |

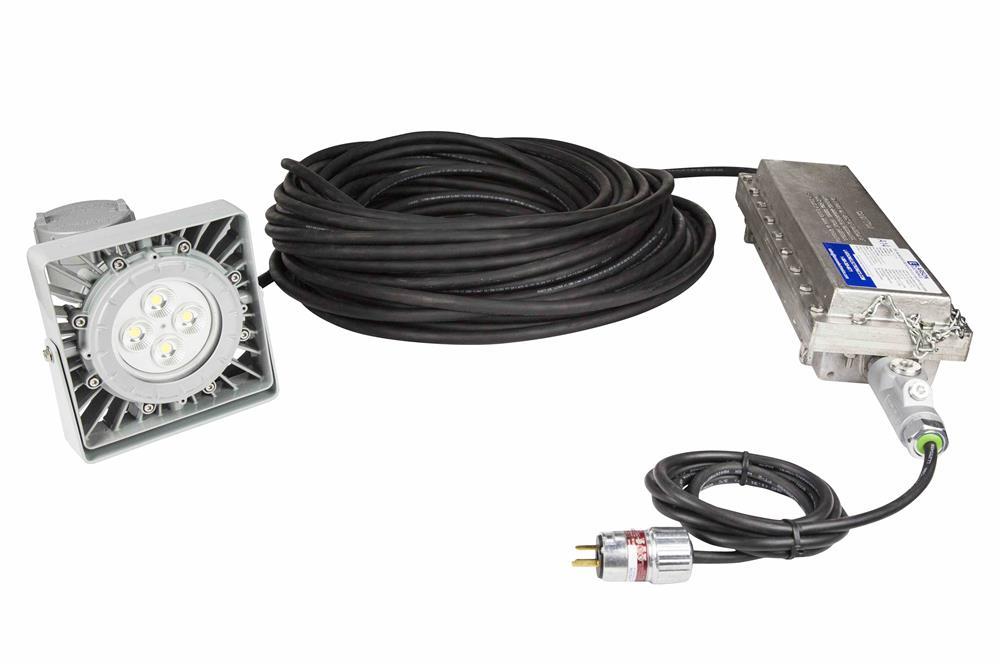

The EPL-HB-50LED-RT-JB2-XLV-C1D1-12.3-150-EPP from Larson Electronics is an Explosion Proof Low Bay LED Light Fixture that operates on 120-277V AC that is stepped down to 12V DC or 24V DC via an inline transformer and that produces 6250 lumens while drawing only 50 watts. The EPL-HB-50LED-RT-JB2-XLV-C1D1-12.3-150-EPP is Class I, Divisions 1 & 2, Groups C and D, Class II, Divisions 1 & 2, Groups E, F ,G and Class III Divisions 1 & 2 rated for hazardous areas and is listed for use worldwide including the United States and Canada. This explosion proof low bay LED light fixture also features a junction box on the back for wiring and an adjustable trunnion mount, allowing operators to tilt the light after mounting.
The EPL-HB-50LED-RT-JB2-XLV-C1D1-12.3-150-EPP produces 7,000 lumens of high-intensity LED light for illumination within hazardous areas and potentially explosive work environments, with 3000K, 4500K and 5600K color temperature options. This explosion proof LED light fixture operates on voltages ranging from 120-277V AC. This input voltage is then stepped down to either 12V DC or 24V DC to operate the light via an inline transformer. The transformer is encapsulated to make it weatherproof, but it is NOT explosion proof and must remain located outside of the hazardous area. With 150` of 12/3 SOOW cable between the light and the encapsulated transformer, there is plenty of room to move around the hazardous work area while keeping the transformer in a safe location. There is 10` of 16/3 SOOW between transformer and plug. The EPL-HB-50LED-RT-JB2-XLV-C1D1-12.3-150-EPP produces a flood pattern with a 60° or 125º beam.
This explosion proof LED fixture is supported by an adjustable trunnion mount. Operators may securely and quickly mount the light for hands-free lighting in hazardous locations and confined spaces. After mounting, operators can adjust the angle of the LED fixture by tilting the light head up and down to reach the desired position. This versatile mounting system is ideal for industrial work that requires gloves. When a gloved hand is supporting the light through the opening of the trunnion mount, operators may use the LED fixture as a handheld unit for robust control.
LED Benefits: Unlike gas burning and arc type lamps that have glass bulbs, LEDs have no filaments or fragile housings to break during operation and/or transportation. Instead of heating a small filament or using a combination of gases to produce light, light emitting diodes (LEDs) use semi-conductive materials that illuminate when electric current is applied, providing instant illumination with no warm up or cool down time before re-striking. Because there is no warm up period, this light can be cycled on and off with no reduction in lamp life.
LED lights run at significantly cooler temperatures than traditional metal halide and high pressure sodium lights and contain no harmful gases, vapors, or mercury, making them both safer and more energy efficient. No extra energy is wasted in cooling enclosed work areas due to external heat emissions from bulb type lights, and the operator risks associated with traditional lighting methods, such as accidental burns and exposure to hazardous substances contained in the glass bulbs, are eliminated. In addition, LEDs are also safer for the environment as they are 100% recyclable, which eliminates the need for costly special disposal services required with traditional gas burning and arc type lamps.
Heat Management: Heat is the single largest factor in premature LED failure and color shifting. These LED units contain advanced drivers which use pulse width modulation to control heat buildup rather than simple voltage regulators which are typically harsh on sensitive electronics and can contribute to early LED failure. These units automatically sense the temperature of each LED and adjust the energy frequency or "duty cycle" accordingly to maintain heat levels within acceptable ranges. This system in essence flashes current at an extremely fast on and off rate to each LED based upon the LED`s core temperature. This flash rate is too fast to detect with the human eye, but provides precise control of the current flowing to each LED and thus the heat it generates. This allows the LEDs to be driven at up to 100% capacity without overheating or visible loss of light output. The LEDs are always driven at the same voltage but the duty cycle, however, is changed to alter how long the LEDs are actually on or off. The end result is more light with less heat and longer LED life with an average 80% lumen maintenance after 60,000 hours.
|
|||||||||||||
