Explosion Proof LED High Bay Light - 70W Metal Halide Equivalent - C1D1&2 - C2D1&2 - 347-480VAC
Explosion Proof LED High Bay Light - 70W Metal Halide Equivalent - C1D1&2 - C2D1&2 - 347-480VAC
常规价格
$4,274.00 CAD
常规价格
促销价
$4,274.00 CAD
结账时计算的运费。
Specifications / Additional Information
| EPL-HHB-70W-LED-3480V - C1D1 40W LED Light | Ratings/Approvals |
| Listing: United States - Canada | Listed for United States and Canada |
| Lamp Type: LED | Class I, Divisions 1 & 2, Groups A,B,C,D |
| Ceiling Mount Dimensions: 15-15/16"-H x 8-13/16"-OD | Class I, Zones 1 & 2,Groups IIB, IIA |
| Wall Mount Dimensions: 16-13/16"-H x 8-13/16-W x 15"-D | Class II, Divisions 1 & 2, Groups E,F,G |
| Pendant Mount Dimensions: 15-15/16"-H x 8-13/16"-OD | Class III, Divisions 1 & 2 |
| 25° Stanchion Mount Dimensions: 15-1/8"-H x 8-13/16"-W x 13-1/2"-D | Certified to UL 844 |
| Weight: 28 lbs | Certified to UL 8750 |
| Voltage: 347-480V AC 50/60 Hz | IP66 Waterproof |
| Total Watts: 40W | NEMA 4X |
| Lumens: 2,900 | T4A Temperature Rating |
| Luminous Efficacy: 114.7 Lm/W | Approved for Confined Spaces |
| Lamp Life: 55,000+ Hours | ABS Type |
| Color Temp: 5000K | |
| Color Rendering Index: 70 CRI | |
| Light Color: White - (other colors available upon request) | |
| Lighting Configuration: Flood Pattern | |
| Power Factor: 0.9 | |
| Ambient Operating Temp Range: -40°C to +55°C | |
| Operating Temp Rating: T4A | |
| Housing Material: Copper Free Cast Aluminum - Corrosion Resistant | |
| Housing Finish: Powder Coated | |
| Lens Material: Hardened Glass Globe Lens - Frosted | Toll Free:Â 1-800-369-6671 |
| Mounting: Ceiling, Wall, Pendant, 25° Stanchion | Intl: 1-903-270-1187 |
| Wiring Hub: 3/4" NPT (1-1/2" for Stanchion) - Ceiling Mount w/ (4) 3/4" Hubs | E-mail:Â |
Made in the USA

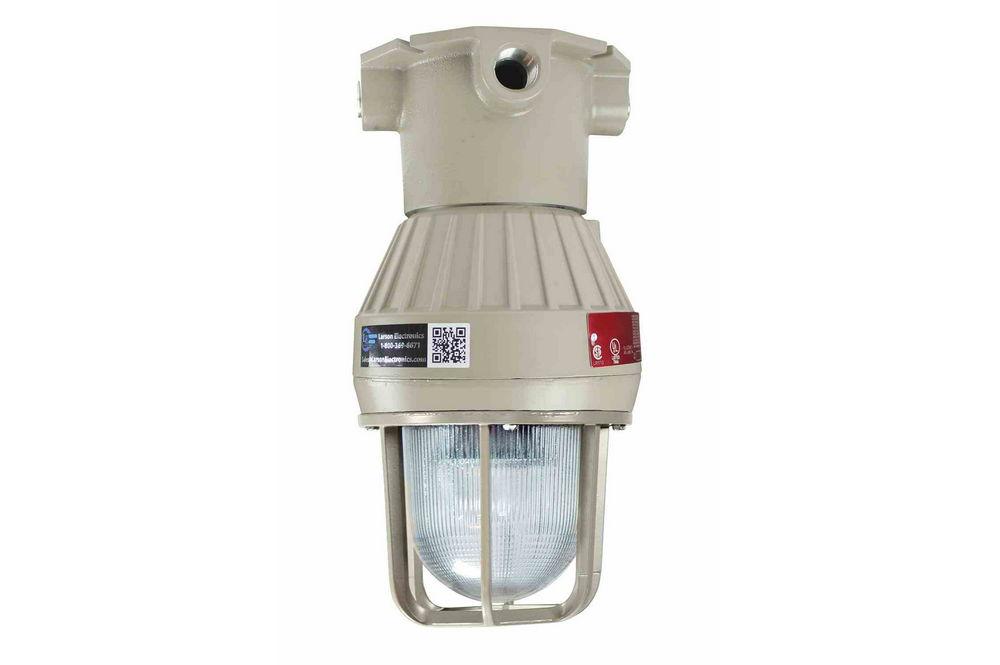

The Larson Electronics EPL-HHB-70W-LED-3480V 40 Watt Explosion Proof Light is approved Class I Divisions 1 & 2, Class II Divisions 1 & 2, and Class III. This LED explosion proof LED light is designed for installation in locations where flammable gases, vapors and liquids, combustible dusts, and/or ignitable fibers and flyings exist or have the potential to exist as well as NEMA 3, 4, 4X location where wind, water, snow/ice, or high ambients can be expected. Weatherproof and listed for marine use, this explosion proof LED fixture is the ideal choice for range of industrial and marine applications including those requiring installation in enclosed spaces. The multipurpose floodlight design of this fixture makes it a popular choice for a range of applications regardless of whether the locations are designated hazardous or not. This LED light fixture operates on 347-480V AC voltages.
***PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO THIS HAZARDOUS LOCATION LIGHT FIXTURE***
The EPL-HHB-70W-LED-3480V hazardous area light is the perfect upgrade replacement for traditional 70 watt metal halide lamps and 300 watt halogen lamps. Unlike gas burning and arc type lamps that have glass bulbs, LEDs have no filaments or fragile housings to break during operation. Instead of using a combination of gases to produce light, light emitting diodes (LEDs) use semi-conductive materials that illuminate when electric current is applied. With LED lighting technology, there is no warm up time or cool down time before re-striking. Rather, LEDs provide instant illumination when powered on, making them more dependable and convenient than halide or incandescent lighting methods.
LED Benefits: Unlike gas burning and arc type lamps that have glass bulbs, LEDs have no filaments or fragile housings to break during operation and/or transportation. Instead of heating a small filament or using a combination of gases to produce light, light emitting diodes (LEDs) use semi-conductive materials that illuminate when electric current is applied, providing instant illumination with no warm up or cool down time before re-striking. Because there is no warm up period, this light can be cycled on and off with no reduction in lamp life.
LED lights run at significantly cooler temperatures than traditional metal halide and high pressure sodium lights and contain no harmful gases, vapors, or mercury, making them both safer and more energy efficient. No extra energy is wasted in cooling enclosed work areas due to external heat emissions from bulb type lights, and the operator risks associated with traditional lighting methods, such as accidental burns and exposure to hazardous substances contained in the glass bulbs, are eliminated. In addition, LEDs are also safer for the environment as they are 100% recyclable, which eliminates the need for costly special disposal services required with traditional gas burning and arc type lamps.
In addition to being weatherproof and suitable for extreme temperatures, the EPL-HHB-70W-LED-3480V light delivers a powerful 2,900 lumens and high chromaticity for excellent color rendering while drawing only 40 watts. Designed with versatility in mind, this explosion proof hazardous area light runs on 347/480V AC 50/60 Hz.
This light is universal voltage capable and can be operated with 347-480V AC without modifications. 347V is common in Western Canada, while 480V is common in the United States and Eastern Canada. This explosion proof LED light fixture is IP67 rated, dust-proof, and protected against high pressure jets and temporary submersion. The cast aluminum body and LED lamp give this light excellent durability and resistance to vibration and impacts. The housing is specially designed to dissipate heat which increases the efficiency and lifespan of the LEDs and electronics.
By nature, LED light sources run significantly cooler than metal halide lamps, reducing the chance of accidental burns and increased temperatures due to heat emissions. This solid state design of light emitting diodes provides a more reliable, stable, durable, and energy efficient light source over traditional halide lighting. This internal driver provides the ability to automatically monitor and adjust input current to maintain the correct LED voltage levels regardless of input levels across a specific range. This not only reduces the energy dissipation, effectively lowering the operating temperature of the fixture, but also prevents AC over-voltage and short circuit loading making this fixture virtually maintenance free. Because the electronic driver allows the EPL-HHB-70W-LED-3480V to run at a cooler internal temperature and regulates the electrical current, energy efficiency and LED service hours are maximized while at the same time reducing operating costs and downtime incurred from the frequent servicing intervals required with other hotter running lights. As a result, the Larson Electronics Explosion Proof Light has a rated service life of 50,000 hours.
|
|||||||||||||||||||||||||||||||||||||||
