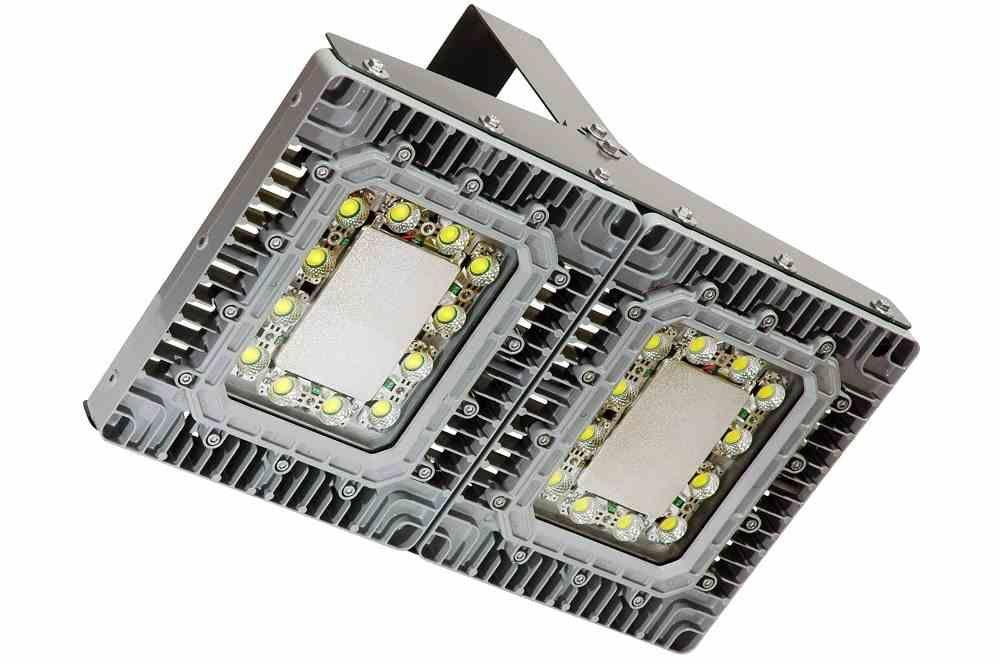

Class 1 Division 1 Explosion Proof 300 Watt High Bay LED Light Fixture w/ I-Beam Mount - Paint Booth
Class 1 Division 1 Explosion Proof 300 Watt High Bay LED Light Fixture w/ I-Beam Mount - Paint Booth
| EPL-IBM-2X150LED-RT - C1D1 I-Beam LED Light | Ratings/Approvals |
| Lamp Type: Cree LED | Class 1 Division 1, Groups C and D |
| Dimensions: 28"L x 16"W 5"D | Class 1 Division 2, Groups C, D |
| Weight: 64lbs | Class 2, Divisions 1 & 2, Groups E,F,G |
| Voltage: 100-277 Volts AC, 50/60Hz or 11-25 Volts AC/DC | Class 3, Divisions 1 & 2 |
| Total Watts: 300W | T5 Temperature Rating |
| Lumens:Â 35,000 | Certified to UL844 and C22.2 Standards |
| Luminous Efficacy: 116.67 Lm/W | Paint Spray Booth Approved |
| Lighting Configuration: Flood Pattern | LEL Approved |
| Temp Rating: -50°C to +85°C | IP67 Rated Waterproof |
| Color Temp: 5000K, 4000K, 3000K | Multiple Driver Banks |
| Color Rendering Index: >75 | 80% Lumen Retention after 50,000 Hours |
| Lamp Life: 60,000+ Hours | |
| Mounting: I-Beam Mount Swivel Bracket | |
| Â | |
| Â | |
| Â | |
| Â | |
| Â |
| Made in the USA The Larson Electronics EPL-IBM-2X150LED-RT Explosion Proof I-Beam Mount light fixture provides operators with a powerful and energy efficient alternative to traditional hazardous location luminaries. Cree LED technology and compact design makes this lamp an excellent replacement upgrade option for bulky and high maintenance cost older fixtures. ***PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO THIS HAZARDOUS LOCATION LIGHT FIXTURE*** This Class 1 Division 1 & 2, Class 2 Division 1 & 2 explosion proof light fixture provides 35,000 of high quality light while drawing only 300 watts. The copper free aluminum alloy body is powder coated for added durability and an attractive aesthetic appearance. Special heat dissipating design in conjunction with LED technology helps this fixture to achieve an excellent 60,000 hour rated lifespan with 80% lumen retention. Light weight and a low profile make this unit an attractive alternative to larger and heavier older fixtures and requires less hardware to install. | ||||
The explosion proof LED light fixture features multiple LED drivers which helps to increase the operational life of the fixture. With traditional LED lights, in the event an LED array or driver fails, the entire fixture no longer illuminates. This new series of LED lamps contains twenty-four individual LED boards configured in a series of banks. Each bank contains two LED boards with an individual driver. In the event of a driver failure, only one bank of LEDs will be effected while the other banks will continue to operate. In the event that of an LED failure, the mating LED will continue to operate.
Unlike gas burning and arc type lamps that have glass bulbs, LEDs have no filaments or fragile housings to break during operation. Instead of heating a small filament or using a combination of gases to produce light, light emitting diodes (LEDs) use semi-conductive materials that illuminate when electric current applied and emitting light. With LED lights, there is no warm up time or cool down time before re-striking and provide instant illumination when powered on, adding to the reliability of LED technology. By nature, LED light sources run significantly cooler than traditional lamps, reducing the chance of accidental burns and increased temperatures due to heat emissions. This solid state design of light emitting diodes provides a more reliable, stable, durable, and energy efficient light source over traditional lighting.
This light is universal voltage capable and can be operated with 100-277 VAC, 50/60Hz. We also offer a low voltage version of this LED fixture that operates on AC/DC voltages from 11-25 Volts. This explosion proof LED light fixture is IP67 rated, dust-proof, and protected against high pressure jets and temporary submersion. The cast aluminum body and LED lamp give this light excellent durability and resistance to vibration and impacts. The housing is specially designed to dissipate heat which increases the efficiency and lifespan of the LEDs and electronics.
This LED light produces 35,000 lumens with a color temperature of 5000K, 4000K, or 3000K and a color rendering index of 75 which produces colors and details much more accurately than high pressure sodium or mercury vapor luminaries. The EPL-IBM-2X150LED-RT specially designed I-beam mount allowed operators to install this high bay light fixture on existing I-beams via nine per-drilled holes. After installation, operators can tilt the light 90° in both directions, allowing for precise aiming. The EPL-IBM-2X150LED-RT is LEL approved for LED quality and energy efficiency for commercial locations and applicable for Class 1 Division 1 work areas, such as tanks and refineries, silos, loading facilities, and other similar environments.
|
||||
