15W Explosion Proof LED Light - C1D1/C2D1 - 1650 Lumens - Multiple Color Options

15W Explosion Proof LED Light - C1D1/C2D1 - 1650 Lumens - Multiple Color Options

$1,800.00 CAD
$1,800.00 CAD
促销 售罄
结账时计算的运费。
Specifications / Additional Information
EPL-LED30W-C - Explosion Proof Light Ratings/Approvals
Listing: NRTL Listed for United States and Canada Class I, Divisions 1 & 2, Groups C and D
Lamp Technology: Cree LED Class II, Divisions 1 & 2, Groups E & F
Dimensions: 14.25"-H x 7.58"-OD Class III, Divisions 1 & 2
Weight: 11 lbs IP67 - Waterproof
Voltage: 120-277 Volts AC 50/60Hz, 12V DC or 24V DC Suitable for Paint Spray Booths
Total Watts: 15W T3C Temperature Rating
Lumens: 1650 lms
Luminous Efficacy: 110 Lm/W
Lamp Life: 50,000+ Hours
LED Color Options: Red, Amber, Green, Blue or White
Color Rendering Index: >75 CRI
Lamp Type: -
Lamp Base: -
Replacement Lamp: -
Beam Angle: 360°
Lighting Configuration: Flood Pattern
Efficiency: -
Power Factor: -
Amp Draw: 0.25A @ 120V, 0.125A @ 240V, 0.10A @ 277V
Ambient Operating Temp Range: -55° C to +85°C
Operating Temp Rating: T3C
Housing Material: Copper Free Cast Aluminum
Housing Finish: Powder Coated
Lens Material: Hardened Borosilicate Glass
Mounting: Ceiling, Pendant, or Wall Mount
Wiring Hub: 3/4" NPT
' Product Overview '

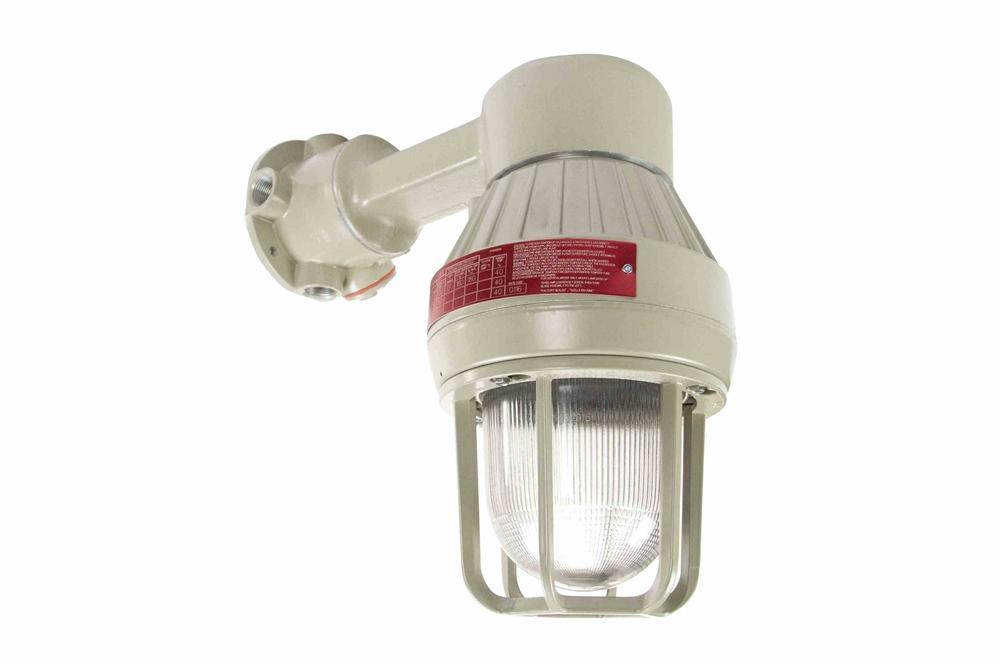

The EPL-LED30W-C Explosion Proof LED Light from Larson Electronics is Class I, Divisions 1 & 2, Groups C & D and Class II, Divisions 1 & 2, Groups E & F listed. This 15-watt LED light fixture produces 1650 total lumens. Waterproof and IP67 rated, this LED light fixture is offered in multiple mounting solutions and available with several color and voltage options. The powerful and durable EPL-LED30W-C explosion proof LED light from Larson Electronics is ideal for industrial applications, hazardous work spaces, and areas where gases, vapors and dusts may be present and a powerful and durable general purpose light solution is needed. The lamp housing is waterproof, constructed of heavy cast aluminum, and tested to withstand 1490 lbs. per square inch of hydrostatic pressure. Factory sealed and finished in a durable polyester powder coating, this lamp can be ordered with red, amber, green blue or white light color. Please choose the lamp color when ordering.
This 15-watt hazardous area LED light carries a T3C temperature rating. The light is IP67 rated waterproof and suitable for use in paint spray booths and areas where flammable gases, vapors and chemicals may be encountered as well as approved for exposure to combustible dusts. The cast aluminum housing is fully factory sealed and includes an integrated inspection hole for easy access to the splice compartment. Wiring is through a 3/4" hub. The LED lamp in this unit offers exceptional power efficiency over traditional incandescent lamps, offers a 50,000+ hour life, span and is energized by leads which pass through a sealing compound that separates the lamp chamber from the wiring compartment. The LED lamp assembly is protected by a heavy aluminum cage guard and an impact and heat resistant clear prismatic globe with heavy gauge aluminum reflector that affords excellent light control. LED Benefits: Unlike gas burning and arc type lamps that have glass bulbs, LEDs have no filaments or fragile housings to break during operation and/or transportation. Instead of heating a small filament or using a combination of gases to produce light, light emitting diodes (LEDs) use semi-conductive materials that illuminate when electric current is applied, providing instant illumination with no warm up or cool down time before re-striking. Because there is no warm up period, this light can be cycled on and off with no reduction in lamp life. LED lights run at significantly cooler temperatures than traditional metal halide and high pressure sodium lights and contain no harmful gases, vapors, or mercury, making them both safer and more energy efficient. No extra energy is wasted in cooling enclosed work areas due to external heat emissions from bulb type lights, and the operator risks associated with traditional lighting methods, such as accidental burns and exposure to hazardous substances contained in the glass bulbs, are eliminated. In addition, LEDs are also safer for the environment as they are 100% recyclable, which eliminates the need for costly special disposal services required with traditional gas burning and arc type lamps. Voltage: This light is universal voltage capable and can be operated with 120-277V AC, 50/60 Hz without modifications to the fixture, and a low voltage version of this LED fixture that operates on 12V DC or 24V DC for rigs and vision systems. Mounting: This explosion proof light offers several mounting options including ceiling mounting, pendant mounting, and wall mounting. Ceiling mount fixtures mount via a flat surface mounting bracket with (4) 3/4" NPT knockouts for wiring the fixture in series and parallel via rigid pipe, utilizing the mounting base as a junction box. Wall mount fixtures mount to flat surfaces with the same style junction box mount as ceiling mount fixtures, but has an arm that extends the fixture out and away from the mounting surface to suspend the fixture over the illuminated surface. Pendant applications are mounted from the ceiling and are suspended by rigid pipe via the 3/4" NPT hub on the back of the explosion proof fixture. Wiring is fed through rigid pipe to the junction box and tied in to the fixture€™s lead wires, completing the electrical connection. This explosion proof LED light fixture is paint spray booth listed, IP67 rated, dust-proof, and protected against high pressure jets and temporary submersion. The cast aluminum body and LED lamp give this light excellent durability and resistance to vibration and impacts. The housing is specially designed to dissipate heat which increases the efficiency and lifespan of the LEDs and electronics. Suggested Applications: The EPL-LED30W-C is approved for use within environments where flammable or combustible gases, vapors, dusts, fibers, and flying exist or stand the potential to exist, and is ideal for a wide variety of applications.
