Explosion Proof 48 Watt Low Profile LED Light Fixture - 5000 Lumens - C1D1 / C2D1 - Pendant Mount

LARSON ELECTRONICSSKU: PL3-EPL-LP-48W-LED
filler

Price:
Sale price$4,692.00

Description

Specifications / Additional Information
EPL-LP-48W-LED Low Profile Explosion Proof LED Light Ratings
Listing: United States - Canada Listed for United States and Canada
Lamp Type: LED Class I, Division 1, Groups C & D
Dimensions: 10.7" Length, 9.7" Width, 5.8" Depth Class II, Division 1, Groups E, F, G
Weight: 14.5 lbs UL 844
Voltage: 100-277 Volts AC, 50/60Hz UL-1598/A
Total Watts: 48W CSA 22.2 No 137
Total Lumens: 5,000 CSA 22.2 No 25
Luminous Efficacy: 104.17 Lm/W T5 Temperature Rating
Lamp Life: 100,000+ Hours IP66
Color Temp: 5000K NEMA 4X
Color Rendering Index: >70 CRI
Beam Spread: 180° or 360°
Lighting Configuration: Flood Pattern
Power Efficiency: >95%
Power Factor: >90%
Total Harmonic Distortion: <20%
Surge Protection: 1kV Line to Line / 2kV Line to Ground
Amperage: 0.4A @ 120V, 0.2 @ 240V, 0.17 @ 277V
Ambient Operating Temp Range:-40° C to +45°C
Operating Temp Rating: T5
Housing Material: Copper Free Cast Aluminum
Housing Finish: Polyester / Epoxy Powder Coated
Lens Material: Glass Toll Free: 1-800-369-6671
Mounting: 3/4€ Pendant Intl: 1-214-616-6180
Wiring: 10` 16/3 SOOW w/ Flying Leads
Wiring Hub: 3/4" NPT
' Product Overview '

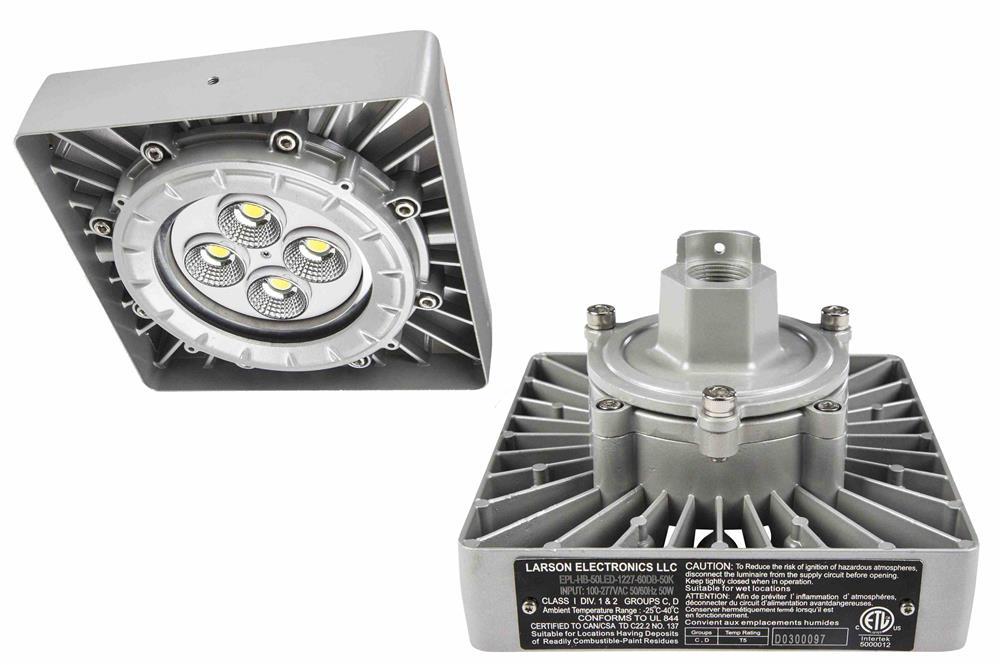

The Larson Electronics EPL-LP-48W-LED-PND Low Profile Pendant Mount LED light fixture provides operators with a powerful and energy efficient alternative to traditional hazardous location luminaries. LED technology and compact design makes this lamp an excellent replacement upgrade option for bulky and high maintenance cost older fixtures. This Class 1 Division 1, Class 2 Division 1 explosion proof light fixture provides 5,000 lumens of high quality light while drawing only 48 watts. It is available in 360° or 180° beam spreads. The copper free aluminum alloy body is powder coated for added durability and an attractive aesthetic appearance. A special heat dissipating design in conjunction with advanced LED driver technology helps this fixture achieve an excellent 100,000 hour rated lifespan with 70% lumen retention. Light weight and a low profile make this unit an attractive alternative to larger and heavier older fixtures and requires less hardware to install. Unlike gas burning and arc type lamps that have glass bulbs, LEDs have no filaments or fragile housings to break during operation. Instead of heating a small filament or using a combination of gases to produce light, light emitting diodes (LEDs) use semi-conductive materials that illuminate when electric current applied and emitting light. With LED lights, there is no warm up time or cool down time before re-striking and provide instant illumination when powered on, adding to the reliability of LED technology. By nature, LED light sources run significantly cooler than traditional lamps, reducing the chance of accidental burns and increased temperatures due to heat emissions. This solid state design of light emitting diodes provides a more reliable, stable, durable, and energy efficient light source over traditional lighting. This light is universal voltage capable and can be operated with 100-277 VAC, 50/60Hz without modification or need for a ballast or transformer. The aluminum body and LED lamp assembly gives this light excellent durability and resistance to vibration and impacts. The housing is specially designed to dissipate heat, which increases the efficiency and lifespan of the LED emitters. This high output LED lamp produces 5,000 lumens with a color temperature of 5000K and a color rendering index of 70, which means this lamp render colors and details much more accurately than high pressure sodium or mercury vapor luminaries. The EPL-LP-48W-LED-PND comes standard in a pendant mount configuration. We offer alternative surface mount, trunnion mount, and slip fitter yoke mount accessories for this fixture. Note On Beam Spread: The 360° beam spread is the standard directional output and typical for flood lights. The 180° shines in only one direction. This is good for down lighting, wall packs and for not blinding oncoming traffic or pedestrians.
High Quality Features Superior LED Benefits
1. Low power consumption. 2. Instant on/off operation. 3. Fixture constructed of extruded corrosion resistant copper free aluminum alloy. 4. Superior color rendering compared to HPS, LPS, MV. 5. Retains 70% lumen output after 100,000 operating hours. 6. Powder coated aluminum fixture body. 7. Low profile - Light weight 8. 5,000 Lumen output from only 48 watts 1. 100,000 hour lifespan. 2. Can SAVE 50% or more on energy. 3. Qualifies retrofit projects for financial incentives, including utility rebates, tax credits and energy loan programs. 4. Reduces energy use and prolongs life-spans of peripheral cooling units (A/C, refrigeration) 5. 100% recyclable. 6. No toxins-lead, mercury. 7. No UV light, infrared radiation or CO2 emissions. 8. Qualifies buildings for LEED and other sustainable business certifications. 9. Bright, even light maintains consistent color over time. 10. Instant on/off €“ No flickering, delays or buzzing. 11. Very good color rendering. 12. Vibration/impact resistant. 13. Significantly cooler operation. 14. Less frequent outages, higher output improves workplace safety.
