30W Explosion Proof LED Light - Inline Transformer - 90-305VAC or 127-431VDC Stepped Down to 12VDC

30W Explosion Proof LED Light - Inline Transformer - 90-305VAC or 127-431VDC Stepped Down to 12VDC

$3,208.00 CAD
$3,208.00 CAD
促销 售罄
结账时计算的运费。
Specifications / Additional Information
EPL-PM-1X30LED-120X12I-100 UL and CSA Certified
UL Listing: United States/Canada Class I Groups C and D
Lamp Type: PAR38 LED UL Standard: UL 1598, UL 844
Dimensions:12"-Diam Base 16.75"-H 13.9"-Depth UL Listed: E10794
Weight: 28 Lbs 500 hour salt-spray tested. Per MIL-F-8115C
Total Watts: 30
Voltage: 90-305V AC 50/60Hz or 127-431V DC Stepped Down to 12V DC Via Transformer
Lamp Lumens: 2500
LUX: @ Lens-53,500 @ 1 Meter-1,950
Color Rendering Index: >84
Mounting: Aluminum Circular Pedestal Base
Wiring: 100 feet SOOW Cord w/ General Area Cord Cap
Cord Cap Options: 5-15 Straight, 6-15 Straight, L5-15 Twist, L6-15 Twist, UK BS1363, Intl. Schuko or Pigtail
Operating Temp Range: -20°C to +85°C
LED Lamp Life: 50,000 Hours
LED Color Temp: 5500K
Materials: Aluminum Housing - Polycarbonate Lens
Warranty: YES - 3 Years*

' Product Overview '
Made in the USA The EPL-PM-1X30LED-120XLV-100 from Larson Electronics is an Explosion Proof LED Light with booted inline transformer is UL Listed Class I Groups C and D and is rated for use in wet and marine environments. The waterproof construction and LED lamp used with this unit provides operators with excellent power and light quality coupled with high versatility and excellent durability. The EPL-PM-1X30LED-120X12I-100 Pedestal Mounted Explosion Proof Light with booted inline transformer provides 1,500 square feet of work area coverage with 2,500 lumens of light output. The 30 watt LED lamp in this unit produces more illumination than a 150 watt halogen lamp, runs cooler, lasts far longer, and produces better color rendering and object contrast. This portable unit is waterproof and tested to 500 hours of salt spray exposure in accordance with MIL-F-8115C Military Specifications. An included inline transformer steps down 90-305V AC 50/60Hz or 127-431V DC current to 12V DC to provide a low voltage lighting solution for areas where low voltage operation is preferable.

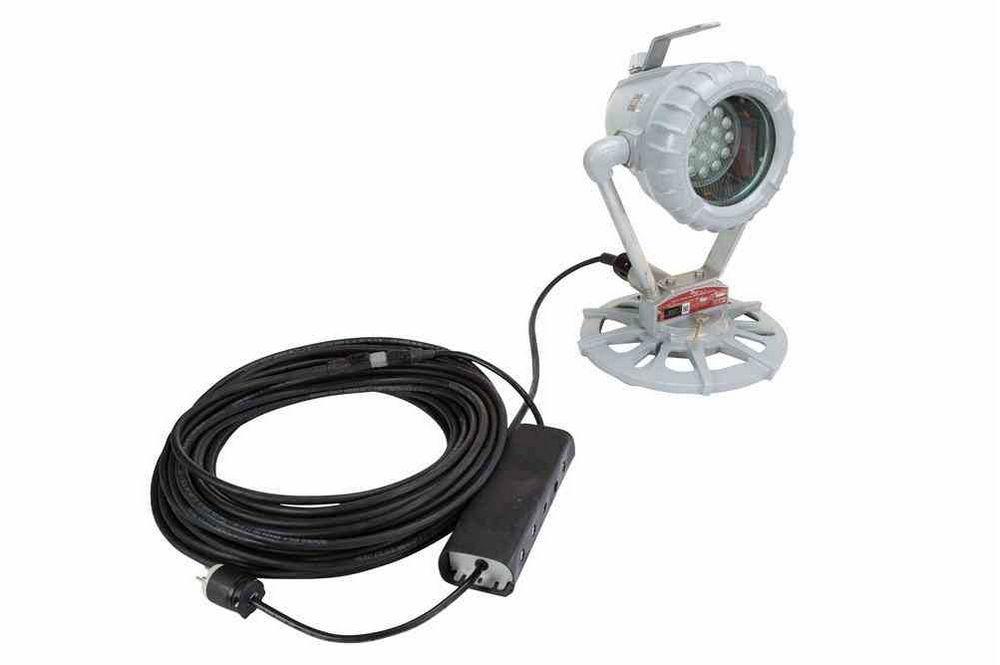

This portable explosion proof LED light fixture is comprised of a 30 watt LED equipped light head mounted atop a circular pedestal base. The entire unit is fabricated from cast aluminum and is factory sealed and water tight. This unit requires no external seals, has a built in carrying handle, and the light head can be adjusted through 135° of vertical movement. The yoke is formed of high strength aluminum alloy, the lens is thermal shock and impact resistant glass, and the entire housing is formed of cast aluminum with an aluminum enamel coating.
53` Container No Illumination EPL-PM-1X30LED-120XLV-100 53` Container w/EPL-PM-1X30LED-120XLV-100
Click Photo to Enlarge Click Photo to Enlarge
LED Benefits: Unlike gas burning and arc type lamps that have glass bulbs, LEDs have no filaments or fragile housings to break during operation and/or transportation. Instead of heating a small filament or using a combination of gases to produce light, light emitting diodes (LEDs) use semi-conductive materials that illuminate when electric current is applied, providing instant illumination with no warm up or cool down time before re-striking. Because there is no warm up period, this light can be cycled on and off with no reduction in lamp life. LED lights run at significantly cooler temperatures than traditional metal halide and high pressure sodium lights and contain no harmful gases, vapors, or mercury, making them both safer and more energy efficient. No extra energy is wasted in cooling enclosed work areas due to external heat emissions from bulb type lights, and the operator risks associated with traditional lighting methods, such as accidental burns and exposure to hazardous substances contained in the glass bulbs, are eliminated. In addition, LEDs are also safer for the environment as they are 100% recyclable, which eliminates the need for costly special disposal services required with traditional gas burning and arc type lamps.
Energy Consumption Comparison (Ten Lamps)
  Incandescent CFL LED
Wattage 1500 watts 420 watts 250 watts
Amp Draw @ 120V AC 12.5 amps 3.5 amps 2.08 amps
Amp Draw @ 12V DC 125 amps 35 amps 20.84 amps
Amp Draw @ 24V DC 62.5 amps 17.4 amps 10.42 amps
Lamp Life Expectancy 1,875 hours 10,000 hours  50,000 hours
Color Temperature 2850K 4300K 6000K
Operation cost per year (8hs/day @ 11c/kWh) $481.80 $134.91 $80.30
The 30 watt LED lamp in this unit is a PAR38 design and produces more lumens than a 150 watt halogen lamp. At 5500k color, the light from this unit is bright white in contrast to the yellowish hue of the standard halogen incandescent bulb. The operating temperature of this LED explosion proof light is approximately 55 degrees Fahrenheit as compared to the 198 degrees operating temperature of the 300 watt incandescent version. This makes the light easier to handle and move and doesn`t create additional heat in smaller, confined spaces. Additionally, the LED lamp in this unit has a far longer operational life at up to 50,000 hours as compared to the 600-100 hours for a standard halogen lamp. This greatly reduces the costs associated with frequently replacing lamps and servicing.
Click Photos to Enlarge
5-15 Straight Blade Plug 15 Amp / 125V Rated L5-15 Twist Lock Plug 15 Amp / 125V Rated L6-15 Twist Lock Plug 15 Amp / 250V Rated
UK BS1363 Straight Blade Plug 13 Amp / 250V Rated / Internal Fuse Intl Schuko 2-Pin Plug 16 Amp / 250V Rated / Grounded Flying Leads / Pigtail Wires
  Wiring: This explosion proof LED flood lighting system is equipped with 100` of 16/3 chemical and abrasion resistant SOOW cord leading up to the encapsulated step down transformer, and 5` of 16/3 SOOW cable on the input side of the transformer that is fitted with an industrial grade cord cap for easy connection to common wall outlets. PLEASE NOTE: The transformer on this unit is waterproof rated but is NOT explosion proof rated. The transformer must remain outside the hazardous environment. This lamp is extremely rugged and ideal for use in marine environments where damage due to salt water spray and dampness is an issue. Plug: Plug options include standard 5-15 15 amp straight blade plug for 110V wall outlets with ground, standard 6-15 15 amp straight blade plug for 220-240V wall outlets with ground, NEMA L5-15 15 amp twist lock plug for 125V twist lock outlets, NEMA L6-15 15 amp twist lock plug for 240V twist lock outlets, British BS1363 13 amp fused 3-blade plug for United Kingdom outlets, or a two pin 16 amp rated Schuko plug with ground contact and socket for European outlets up to 250V. Alternatively, we can provide flying leads with no plug for hard wire applications or for operators who prefer to wire in user provided cord caps. Please choose pigtail option below for flying leads with no plug. PLEASE NOTE: The cord cap on this unit is outdoor rated but is NOT explosion proof rated. Electrical connections must be made outside the hazardous environment.
Made in USA Quality Superior LED Benefits
1. Each unit dialectrically tested. 2. Fixture arrives assembled and lamped to reduce installation time and cost. Adjustable circular pedastal base enables the operator to choose any mounting angle for the fixture. 3. Fixture constructed of extruded corrosion resistant copper free aluminum alloy with aluminum alloy yoke. 4. Thermal shock and impact resistant polycarbonate lens. 5. Factory sealed, no external seals required. 6. 500 hour salt-spray tested. Per MIL-F-8115C. 7. 100` 16/3 SOOW cord and general area plug included. 1. 50,000 hour lifespan. 2. Can SAVE 50% or more on energy. 3. Qualifies retrofit projects for financial incentives, including utility rebates, tax credits and energy loan programs. 4. Reduces energy use and prolongs life-spans of peripheral cooling units (A/C, refrigeration) 5. 100% recyclable. 6. No toxins-lead, mercury. 7. No UV light, infrared radiation or CO2 emissions. 8. Qualifies buildings for LEED and other sustainable business certifications. 9. Bright, even light maintains consistent color over time. 10. Instant on/off - No flickering, delays or buzzing. 11. Very good color rendering. 12. Vibration/impact resistant. 13. Significantly cooler operation. 14. Less frequent outages, higher output improves workplace safety. 15. California Title 24 Compliant
