Explosion Proof LED Light - Low Voltage Operation - 70 Watt LED Bulb - Class 1 Groups C and D
Explosion Proof LED Light - Low Voltage Operation - 70 Watt LED Bulb - Class 1 Groups C and D
| EPL-PM-1X70LED-LV-100 | UL and CSA Certified |
| UL Listing: United States/Canada | Class 1 Groups C and D |
| Dimensions: 12"-Diam Base 16.75"-H 13.9"-Depth | UL Standard: UL 1598, UL 844 |
| Weight: 28 Lbs | UL Listed: E10794 |
| Total Watts: 70 | 500 hour salt-spray tested. Per MIL-F-8115C |
| Voltage: 9 to 48 VDC | |
| Lamp Lumens: 6020 | |
| Lamp Type: CREE XLamp MC-E LED | |
| Mounting: Aluminum Circular Pedestal Base | |
| Wiring: 100 feet SOOW Cord ECP 1523 Explosion Proof Plug | |
| Operating Temp Range: T3C Rated | |
| LED Lamp Life: 50,000 Hours | |
| Amps: 5.84 | |
| LUX: @ Lens-53,500 @ 1 Meter-1,950 | |
| This fixture is being remanufactured under file number E10794. | |
| Made in the USA The EPL-PM-1X70LED-LV-100 Explosion Proof LED Light is UL Listed Class 1 Groups C and D, and is rated for use in wet and marine environments. The waterproof construction and LED lamp used with this unit provides operators with excellent power and light quality coupled with high versatility and excellent durability. The EPL-PM-1X70LED-LV-100 Pedestal Mounted Explosion Proof Light provides a beam that is 750 feet long by 110 feet wide with 6,020 lumens of light output. The 70 watt LED lamp in this unit produces more illumination than a 150 watt halogen lamp, runs cooler, lasts far longer, and produces better color rendering and object contrast. This portable unit is waterproof and tested to 500 hours of salt spray exposure in accordance with MIL-F-8115C Military Specifications. This unit operates on 9 to 48 Volts DC to provide a low voltage lighting solution for areas where low voltage operation is preferred. | |||||
|
|||||

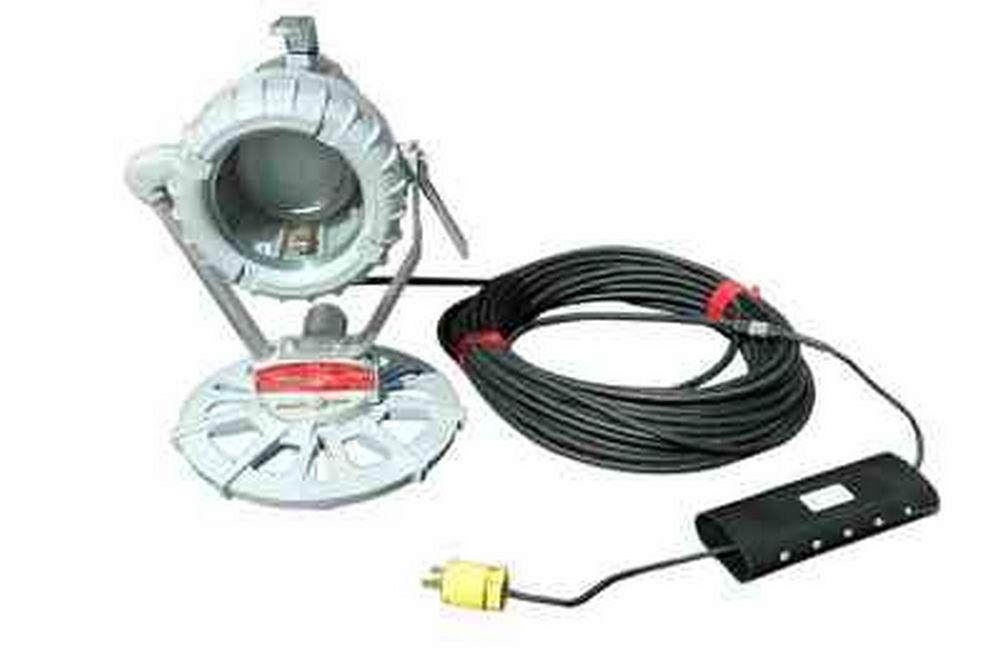

This portable explosion proof LED light fixture is comprised of a 70 watt LED equipped light head mounted atop a circular pedestal base. The entire unit is fabricated from cast aluminum and is factory sealed and water tight. This unit requires no external seals, has a built in carrying handle, and the light head can be adjusted through 135° of vertical movement. The yoke is formed of high strength aluminum alloy, the lens is thermal shock and impact resistant glass, and the entire housing is formed of cast aluminum with an aluminum enamel coating.
The 70 watt LED lamp in this unit is comprised of seven 10 Watt LED CREE lamps and produces more lumens than a 150 watt halogen lamp. At 5500k color, the light from this unit is bright white in contrast to the yellowish hue of the standard halogen incandescent bulb. The operating temperature of this LED explosion proof light is approximately 55 degrees Fahrenheit as compared to the the 198 degrees operating temperature of the 300 watt incandescent version. This makes the light easier to handle and move and doesn`t create additional heat in smaller, confined spaces. Additionally, the LED lamp in this unit has a far longer operational life at up to 50,000 hours as compared to the 600-100 hours for a standard halogen lamp. This greatly reduces the costs associated with frequently replacing lamps and servicing.
Included with this unit is 100 feet of 16/3 SOOW (abrasive and oil resistant) cord ending in an ECP 1523 5-15P explosion proof straight blade plug connector. This light operates with standard 12 volts DC current.
This lamp is extremely rugged and ideal for use in marine environments where damage due to salt water spray and dampness is an issue.
|
|||||
|  |
