1000W Max Portable Explosion Proof Transformer -120-240VAC Input -12/24VDC Output w/ (4) 16A Outlets

LARSON ELECTRONICSSKU: PL3-EPLC-TX-1000-4XLV-309
filler

Price:
Sale price$26,322.00

Description

Specifications / Additional Information
EPLC-TX-1000-4XLV-309 Explosion Proof Power Distribution System Features/Ratings
Line In: 120V or 230V Class I Division 1 Explosion Proof
Line Out: (4) 16 Amp C1D1 12V or 24V DC IEC60309 Receptacles 16 amp Class I Division 1 Twist Lock Receptacles
Wiring: 25` SOOW with 16 amp HLP-EX-16A-2P3W plug Steps down any voltage from 120-240VAC 50/60Hz to 12V or 24V DC
Dimensions: 30"H x 14"D x 24"W IEC Ex d e IIC T6 Gb
Max Amps per Receptacle: 41.67 amps @ 24V DC and 83.33 amps @ 12V DC ATEX EX II 2 G Ex d e IIC T6 Gb
Weight: 155 lbs
Mounting: Portable Dolly Cart with Wheels
Ratings: Class I Division 1 Explosion Proof
*All grounding shall comply with state and local codes and meet the minimum requirements of the National Electronic Code section 250*
' Product Overview '

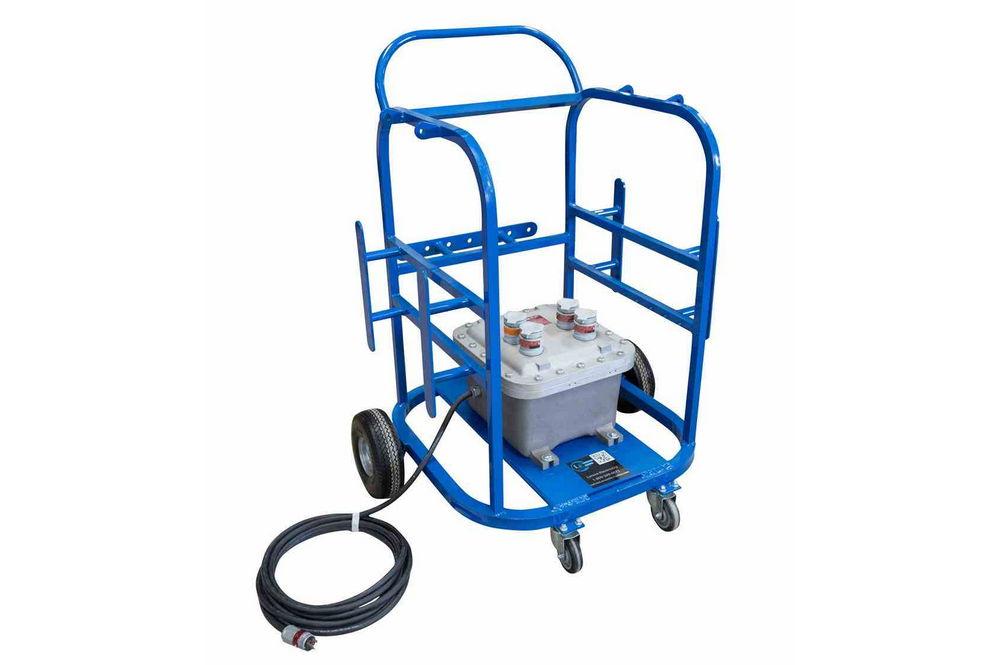

Made in the USA The Larson Electronics EPLC-TX-1000-4XLV-309 explosion proof power distribution system enables operators step down 120V or 230V AC to low voltage 12 or 24V DC, available via four 16A Class I and II, Divisions 1 and 2 receptacles. This explosion proof transformer system delivers 41.67 amps of 24V DC power or 83.33 amps of 12V DC power. *PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO POWER DISTRIBUTION PANELS, TRANSFORMERS, OR SUBSTATIONS* This portable, explosion proof portable power distribution system from Larson Electronics is built to provide operators in hazardous locations with a way to power low voltage equipment with 12 or 24 volts DC output. This unit includes four explosion proof receptacles rated at 16 amps each. This compact power distribution system is designed for portability and convenience as well as durability and is mounted to a wheeled, non-sparking aluminum frame for added protection.
**Drop Lights Sold Separately**


The EPLC-TX-1000-4XLV-309 is perfect for use with explosion proof drop lights. (Sold Separately)Mounting holes on the EPLC-TX-1000-4XLV-309 convenient for hooking drop lights. (Sold Separately)
The output side is equipped with four Class 1 & 2, Division 1 & 2 receptacles designed to accept twist lock plugs like our HLP-EX-20A-2P3W explosion proof plug. This explosion proof power distribution system comes standard with a 25 foot of 12/3 SOOW cord terminated with a HLP-EX-16A-2P3W 16 amp explosion proof male plug. LarsonElectronics.com can build transformers to your specifications. If this model does not meet your needs, please contact us at 1-800-369-6671 or .
