Description
Specifications / Additional Information
EPLC2-HB-100LED-RT-CM - C1D1 High Bay LED Light | Ratings/Approvals |
Listing: NRTL Listed for United States and Canada | Class I, Division 2, Groups C and D |
Lamp Type: Cree LED | Class II, Divisions 1 & 2, Groups E,F,G |
Dimensions: 14"H x 16"W x 11"D | Class III, Divisions 1 & 2 |
Weight: 35 lbs. | NRTL Certified to UL 844 Ed. 13 |
Voltage: 100-277 Volts AC, 50/60Hz or 11-25 Volts AC/DC | NRTL Certified to UL 1598 |
Total Watts: 100W | NRTL Certified to C22.2 No. 137 Rev 2009 |
Total Lumens: 14,000 | NRTL Certified to C22.2 No. 250.0 |
Luminous Efficiency: 140Â Lm/W | T5 Temperature Rating |
Lamp Life: 60,000+ Hours | Paint Spray Booth Approved |
Color Temp: 5000K, 4000K, 3000K | IEC 60529 Tested |
Color Rendering Index: >75 CRI | IP67 Rated Waterproof |
Beam Angle: 60° or 125° | LEL Approved |
Lighting Configuration: Flood Pattern | Multiple Driver Banks |
NEMA Type (Lighting): 6H x 6V (60° Optics); 6H x 6V (125° Optics); 6H x 7V (140° Optics) | 80% Lumen Retention after 60,000 Hours |
IES Classification: Type I (60° Optics); Type VS (125° Optics); Type VS (140° Optics) | Factory Sealed Light Fixture |
Longitudinal Classification: Very Short (60° Optics); Very Short (125° Optics); Short (140° Optics) | Recommended 15` to 40` Mounting Height |
Cutoff Classification: Cutoff | |
CIE Type: Direct | Â |
BUG Rating: B4-U1-G0 (60° Optics); B4-U1-G1 (125° Optics); B3-U1-G2 (140° Optics) |  |
Power Efficiency: >95% | Â |
Power Factor: 0.992 | Â |
Amperage: 0.83A @ 120V, 0.42 @ 240V, 0.36 @ 277V | Â |
Ambient Operating Temp Range:-50° C to +65°C |  |
Operating Temp Rating: T5 | |
Housing Material: Copper Free Cast Aluminum | |
Lens Material: Hardened Borosilicate Glass | |
Gasket Material: Silicone | |
Mounting: Ceiling Mount Junction Box | |
Wiring: (4) 3/4" NPT Hubs on Ceiling Mount | |
Wiring Hub: 3/4" NPT |
Â
Â

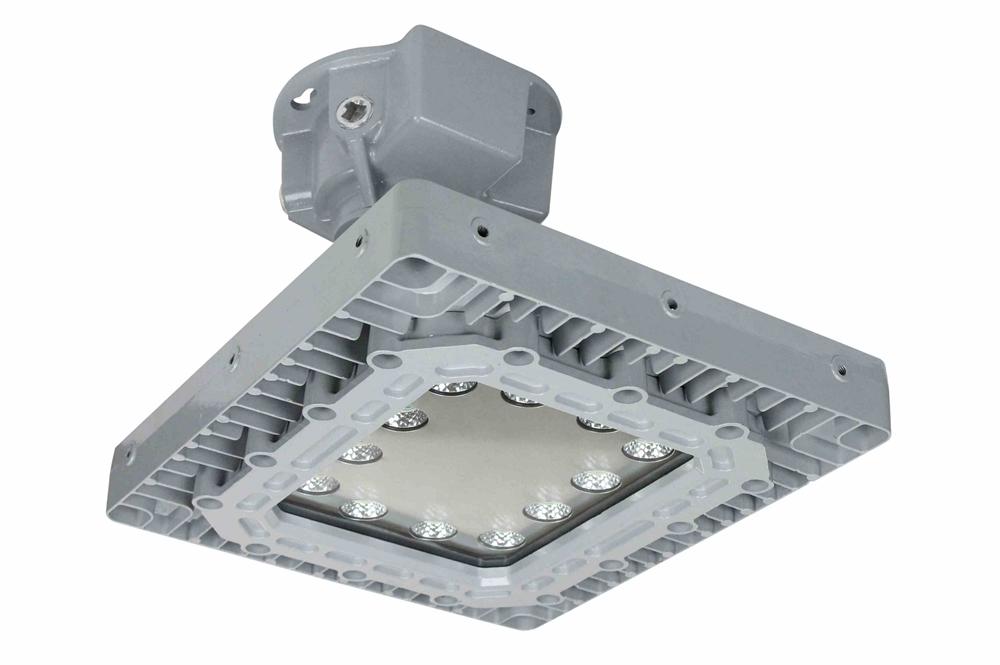

The Larson Electronics EPLC2-HB-100LED-RT-CM Ceiling Mount Explosion Proof High Bay light fixture provides operators with a powerful and energy efficient alternative to traditional hazardous location luminaries. Cree LED technology and compact design makes this lamp an excellent replacement upgrade option for bulky and high maintenance cost older incandescent, metal halide and high pressure sodium lights.  This Class I, Division 2 and Class II, Division 1 & 2 explosion proof light fixture provides 14,000 of high quality light while drawing only 100 watts. The copper free aluminum alloy body is powder coated for added durability and an attractive aesthetic appearance. Special heat dissipating design in conjunction with LED technology helps this fixture to achieve an excellent 60,000 hour rated lifespan with 80% lumen retention. Light weight and a low profile make this unit an attractive alternative to larger and heavier older fixtures and requires less hardware to install. | |||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||
The explosion proof LED light fixture features multiple LED drivers which helps to increase the operational life of the fixture. With traditional LED lights, in the event an LED array or driver fails, the entire fixture no longer illuminates. This new series of LED lamps contains eight individual LED boards configured in a series of banks. Each bank contains two LED boards with an individual driver. In the event of a driver failure, only one bank of LEDs will be effected while the other banks will continue to operate. In the event that of an LED failure, the mating LED will continue to operate.
Unlike gas burning and arc type lamps that have glass bulbs, LEDs have no filaments or fragile housings to break during operation. Instead of heating a small filament or using a combination of gases to produce light, light emitting diodes (LEDs) use semi-conductive materials that illuminate when electric current is applied and emit light. With LED lights, there is no warm up time or cool down time before re-striking and provide instant illumination when powered on, adding to the reliability of LED technology. By nature, LED light sources run significantly cooler than traditional lamps, reducing the chance of accidental burns and increased temperatures due to heat emissions. This solid state design of light emitting diodes provides a more reliable, stable, durable, and energy efficient light source over traditional lighting.
This light is universal voltage capable and can be operated with 100-277V AC, 50/60Hz. We also offer a low voltage version of this LED fixture that operates on AC/DC voltages from 11-25 Volts. This explosion proof LED light fixture is IP67 rated, dust-proof, and protected against high pressure jets and temporary submersion. The cast aluminum body and LED lamp give this light excellent durability and resistance to vibration and impacts. The housing is specially designed to dissipate heat which increases the efficiency and lifespan of the LEDs and electronics.
|
|||||||||||||||||||||||||||||||||||
