45W Hazardous Location Low Bay LED Fixture - Paint Spray Booth Approved -6,300 lms - Ceiling Mount - T5

45W Hazardous Location Low Bay LED Fixture - Paint Spray Booth Approved -6,300 lms - Ceiling Mount - T5

$936.00 CAD
$936.00 CAD
促销 售罄
结账时计算的运费。
Specifications / Additional Information
EPLC2-LB-45LED-RT-CM - Hazardous Location Low Bay LED Light Ratings/Approvals
Listing: United States - Canada Class I, Division 2, Groups C and D
Lamp Technology: LED Class II, Divisions 1 & 2, Groups E, F and G
Dimensions: 7.04" L x 15.04" H x 5.72"D Class III, Divisions 1 & 2
Weight: 9 lbs NRTL Certified to UL 844 Ed. 13
Voltage: 100-277 Volts AC, 50/60Hz or 11-25 Volts AC/DC NRTL Certified to UL 1598
Total Watts: 45W Certified to C22.2 No. 137 Rev 2009
Total Lumens: 5,600 lms Certified to C22.2 No. 250.0
Luminous Efficacy: 140 Lm/w Certified to C22.2 No. 30-M-1986 Rev 2012
Lamp Life: 60,000+ Hours T5 Temperature Rating
Color Temp: 5600K, 4500K or 3000K Paint Spray Booth Approved
Color Rendering Index: >75 CRI IEC 60529 Tested
Lamp Type: - IP67 Rated Waterproof
Lamp Base: - LEL Approved
Replacement Lamp: - Single LED Driver
Beam Angle: 60° or 125° 80% Lumen Retention after 60,000 Hours
Lighting Configuration: Flood Pattern Factory Sealed Light Fixture
Power Efficiency: >95% Recommended 15` to 40` Mounting Height
Power Factor: 0.99 Surge Protection
Amps: 0.42A @ 120V, 0.21A @ 240V, 0.18A @ 277V Replacement for 250W Metal Halide Lamps
Ambient Operating Temp Range: -50° C to +65°C
Operating Temp Rating: T5
Temperature Rise: 11°C (10°F) Over Ambient
Housing Material: Copper Free Cast Aluminum
Housing Finish: Epoxy Powder Coated - Grey
Lens Material: Hardened Borosilicate Glass
Gasket Material: Silicone
Mounting: Ceiling/Surface Mount
Wiring: Internal Wiring Junction Box
Hub: (4) 3/4" NPT Threaded Hubs
' Product Overview '

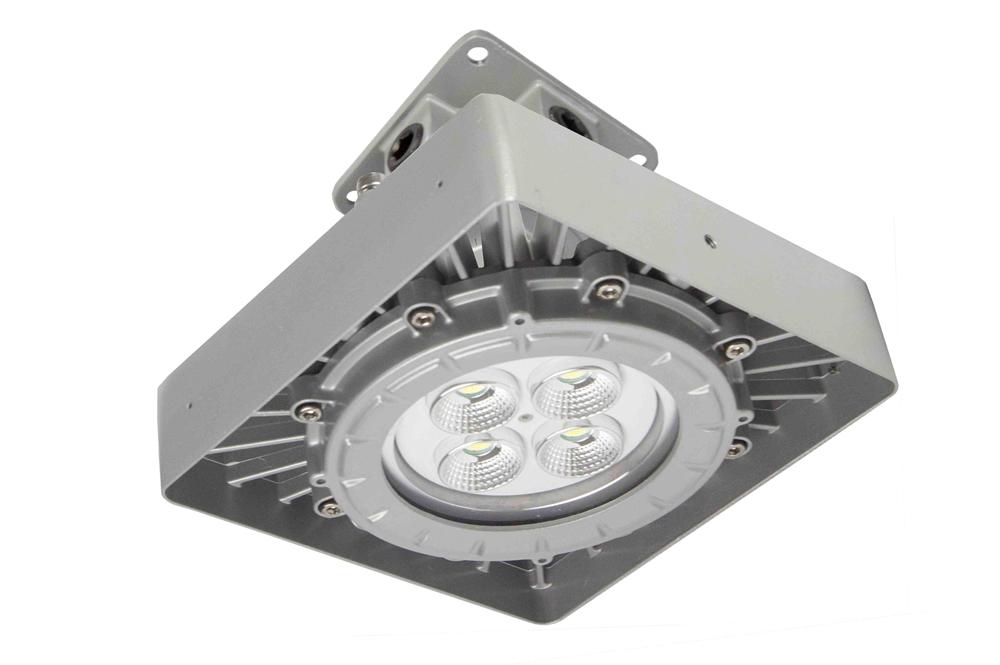

The Larson Electronics EPLC2-LB-45LED-RT-CM Hazardous Location Low Bay LED Light Fixture provides operators with a powerful alternative to traditional hazardous location luminaries. Capable of replacing 250-watt metal halide lamps, this 45-watt low bay LED unit emits 6,300 lumens, carries an IP67 waterproof rating and features an extended lifespan of 60,000+ hours. The factory sealed, hazardous location fixture is protected by a copper-free aluminum housing with an epoxy powder coated finish. The EPLC2-LB-45LED-RT-CM is a Class I, Division 2 and Class II, Divisions 1 & 2 hazardous location light fixture that is designed for energy efficient and superior illumination in combustible environments. This 45-watt low bay fixture offers 5,600 lumens of high quality light with a color temperature of 5600K. We also offer a 3000K warm white and 4500K natural white color temperature options (longer lead times may apply for non-standard temperatures). Serving as a suitable replacement for 250-watt metal halide lamps, a color rendering index of 75 ensures colors and details are produced more accurately than high pressure sodium or mercury vapor luminaries. This low bay lighting solution is IP67 rated, dust-proof and protected against high pressure jets and temporary submersion. The copper-free aluminum alloy housing is specially designed to dissipate heat which increases the efficiency and lifespan of the LEDs and electronic components. An epoxy powder coated finish facilitates durability and an attractive aesthetic appearance. Special heat dissipating design in conjunction with LED technology helps this fixture to achieve an excellent 60,000-hour rated lifespan with 80% lumen retention. The hazardous location low bay LED light also offers operators convenience in the form of field serviceability. LED Benefits: Unlike gas burning and arc type lamps that have glass bulbs, LEDs have no filaments or fragile housings to break during operation and/or transportation. Instead of heating a small filament or using a combination of gases to produce light, light emitting diodes (LEDs) use semi-conductive materials that illuminate when electric current is applied, providing instant illumination with no warm up or cool down time before re-striking. Because there is no warm up period, this light can be cycled on and off with no reduction in lamp life. LED lights run at significantly cooler temperatures than traditional metal halide and high pressure sodium lights and contain no harmful gases, vapors, or mercury, making them both safer and more energy efficient. No extra energy is wasted in cooling enclosed work areas due to external heat emissions from bulb type lights, and the operator risks associated with traditional lighting methods, such as accidental burns and exposure to hazardous substances contained in the glass bulbs, are eliminated. In addition, LEDs are also safer for the environment as they are 100% recyclable, which eliminates the need for costly special disposal services required with traditional gas burning and arc type lamps. LED Drivers: Even in LED fixtures, heat is the single largest factor in premature light failure and color shifting. As a result, many manufacturers reduce the output of their LEDs in order to reduce the amount of heat produced. Rather than lower light output or quality, Larson Electronics addresses this problem with the addition of an electronic LED driver. This internal driver provides the ability to automatically monitor and adjust input current to maintain the correct LED voltage levels regardless of input levels across a specific range. This not only reduces the energy dissipation, effectively lowering the operating temperature of the fixture, but also prevents AC over-voltage and short circuit loading making this fixture virtually maintenance free. Because the electronic driver allows the EPLC2-LB-45LED-RT-CM to run at a cooler internal temperature and regulates the electrical current, energy efficiency and LED service hours are maximized while at the same time reducing operating costs and downtime incurred from the frequent servicing intervals required with other hotter running lights.
Energy Consumption Comparison
Metal Halide LED
Wattage 175 watts 50 watts
Amp Draw @ 120V AC 1.69 amps 0.42 amps
Amp Draw @ 220V AC 0.92 amps 0.23 amps
Amp Draw @ 240V AC 0.85 amps 0.21 amps
Amp Draw @ 277V AC 0.73 amps 0.18 amps
Amp Draw @ 12V DC 16.77 amps 4.17 amps
Amp Draw @ 24V DC 8.39 amps 2.08 amps
Lamp Life Expectancy 20,000 hours 60,000+ hours
Operation cost per year (12hs/day @ 12c/kWh) $241.78 $26.30
Each LED light fixture has the potential to save $150.00+ per year in electricity alone, not including maintenance costs, operational downtime, reduced productivity, HVAC loads, or carbon footprint. When retrofitting an entire facility with 100s of light fixtures, the return on investment of LED over metal halide becomes evident.
Voltage: This light is universal voltage capable and can be operated with 100-277V AC, 50/60Hz. We also offer a low voltage version of this LED fixture that operates on AC/DC voltages from 11-25 Volts. Wiring: The hazardous location low bay LED light fixture is equipped with an internal wiring junction box built into the mount of the fixture. A total of four, 3/4" NPT threaded ports are available for running conduit (located at every corner of the unit). Additionally, wiring can be passed through the junction box, reducing the need for additional junction boxes. Operators run wiring directly to the fixture and terminate in the junction box mount. This fixture is factory sealed and does not require a seal off. Mount: This hazardous location low bay LED light fixture comes standard with a flat surface ceiling mounting system, equipped with four bolts. The sturdy, square mounting plate can be secured on horizontal or vertical surfaces. Spacing between the mounting component and LED fixture's fins, which are located at the back of the unit, streamline cool operation. Several mounting options including pendant mounting and cable mounting can be ordered separately. Compared to high bay lights, low bay fixtures are recommended for lower mounting heights ranging between 15' to 40'. Suggested Applications: Paint spray booths, aircraft maintenance, oil drilling rigs, refineries, solvent and cleaning areas, chemical manufacturing, waste treatment plants, gas processing plants and more.
