Description
Specifications / Additional Information
EPLCD-48-216 Explosion Proof Light Fixture | U.L. Ratings |
UL Listing: United States - Canada | Class 1 Division 1, Groups C and D |
Dimensions: W-11.25" L-52 "  H-8.5" | Class 1 Division 2, Group A,B,C,D |
Total Unit Weight: 65Lbs | UL 595 Outdoor Marine Type (Saltwater) |
Total Watts: 216 watts | UL 844, 924 |
Voltage: Multi- 120V-60hz 220V-50hz 240V-60hz 277V-60hz: | UL 1598A Marine Type |
Total Lumens: STD-T5-HO Bulbs 20,000 | Class II Division 1- 2, Groups E,F,G |
Lamp Life Expectancy: STD-T5-HO Bulbs 20,000 Hours | UL Certified Canadian Approval Standards |
Efficiency: STD-T5-HO Bulbs 92 Lumens per Watt | UL listed for Paint Spray Booths* |
Operating Temp Range: T6 Rated* -30 C to 70 C | |
Minimum Operating Temp: -30 C | |
Maximum Case Temp: 90 C | |
Beam Angle: N/A | |
Color Temp: 5000K or 4100K T5-HO Bulbs | |
Mounting: Portable Dolly Cart with Wheels | |
Optional Voltages: 12 VDC, 24 VDC, 347 Volts, 480 Volts | |
U.L Approval:   | |
 | |
 |  |
ÂÂ

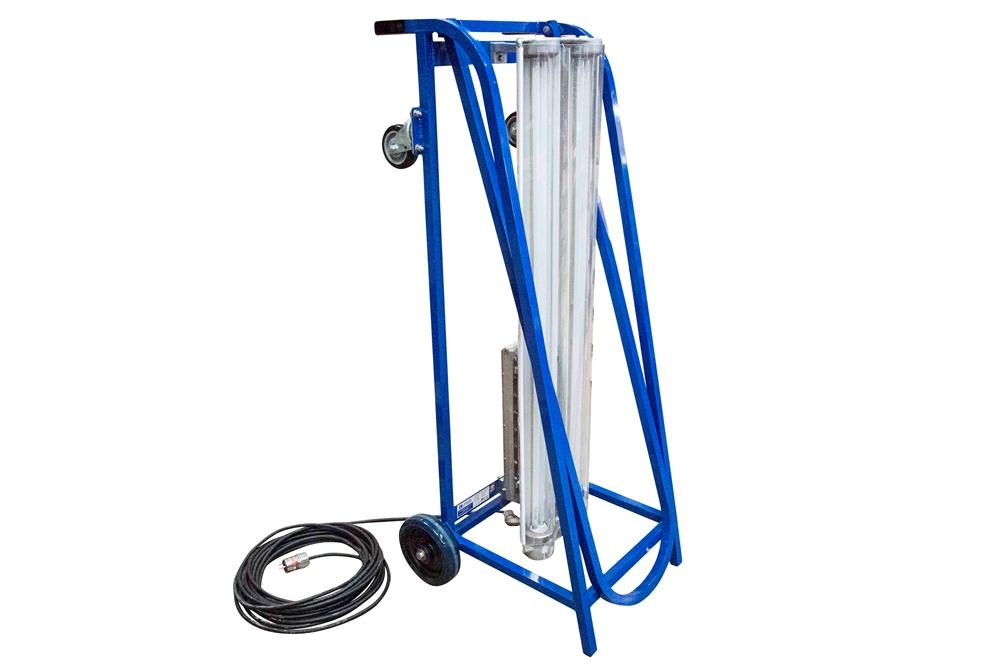

Made in the USA The Larson Electronics EPLCD-48-216 Explosion Proof Paint Spray Booth Light on Dolly Cart is U.S./Canada UL Listed Class 1 Division 1, Class II Division 1 and offers a versatile lighting solution for applications requiring exceptional work area lighting coverage. *PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO THIS LIGHT CART* The EPLCD-48-216 dolly cart mounted explosion proof light is UL listed Class 1 Division 1 and Class II Division 1 & 2 and offers operators the ability to quickly and easily add a full power light wherever it is needed. This unit incorporates a Larson Electronics EPL-48-2L explosion proof fixture equipped with four T5-HO fluorescent lamps producing 20,000 lumens of light into a mobile dolly cart style platform. This configuration allows operators to wheel this light fixture into position next to the target or lay it flat to provide illumination beneath the target. This explosion proof light and dolly cart offers an excellent lighting solution for operators who need illumination in unusual areas where traditional fixed mount lighting is obstructed or cannot effectively reach. | ||||
|
||||
The light fixture used in the EPLCD-48-216 is T6 rated and produces 20,000 lumens of light using four 54 watt T5-HO fluorescent bulbs. The lamps are protected by heat and impact resistant Pyrex tubes and an additional Plexiglas lens which provides added protection from impacts and overspray. The light fixture is constructed of copper free aluminum alloy and is shipped with a 50` SOOW cord and explosion proof plug. The lamp reflectors are corrosion resistant heavy gauge aluminum and coated with a high gloss reflective finish. This unit is UL Listed for use in paint spray booths, is multi voltage capable, and also available in optional 12 VDC, 24VDC, 347 Volt and 480 Volt versions.
Suggested Applications: Paint spray booths, Aircraft maintenance, Oil drilling rigs, Refineries, Solvent and cleaning areas, Gas processing plants, Chemical manufacturing, Waste treatment plants, Gas processing plants.
