Explosion Proof Paint Spray Booth Light - Wheeled Dolly Cart - 20,000 Lumens - 4' 4 lamp - 100' Cord

LARSON ELECTRONICSSKU: PL3-EPLCD-48-216-100
filler

Price:
Sale price$6,386.00

Description

Specifications / Additional Information
EPLCD-48-216-100 Explosion Proof Light Fixture U.L. Ratings
UL Listing: United States - Canada Class 1 Division 1, Groups C and D
Dimensions: W-11.25" L-52 " H-8.5" Class 1 Division 2, Group A,B,C,D
Total Unit Weight: 75Lbs UL 595 Outdoor Marine Type (Saltwater)
Total Watts: 216 watts UL 844, 924
Voltage: Multi- 120V-60hz 220V-50hz 240V-60hz 277V-60hz: UL 1598A Marine Type
Total Lumens: STD-T5-HO Bulbs 20,000 Class II Division 1- 2, Groups E,F,G
Lamp Life Expectancy: STD-T5-HO Bulbs 20,000 Hours UL Certified Canadian Approval Standards
Efficiency: STD-T5-HO Bulbs 92 Lumens per Watt UL listed for Paint Spray Booths
Operating Temp Range: T6 Rated* -30 C to 70 C
Minimum Operating Temp: -30 C
Maximum Case Temp: 90 C
Beam Angle: N/A
Color Temp: 5000K or 4100K T5-HO Bulbs
Mounting: Portable Dolly Cart with Wheels
Wiring: 100` SOOW
Optional Voltages: 12 VDC, 24 VDC, 347 Volts, 480 Volts
U.L Approval:

' Product Overview '

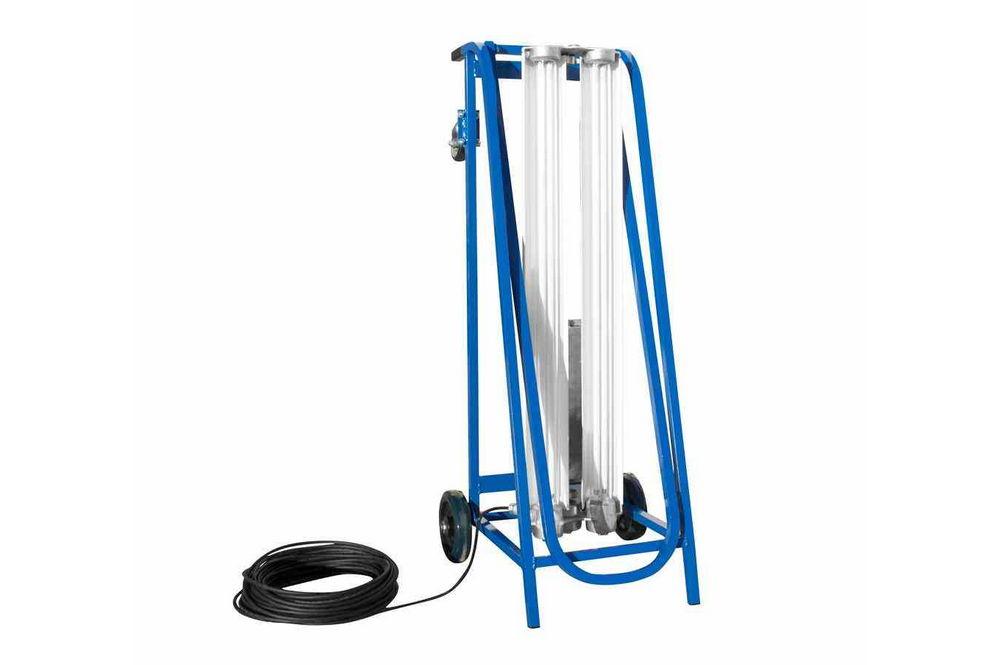

Made in Texas The Larson Electronics EPLCD-48-216-100 Explosion Proof Paint Spray Booth Light on Dolly Cart is U.S./Canada UL Listed Class 1 Division 1 and Class II Division 1 and offers a versatile lighting solution for applications requiring exceptional work area lighting coverage from angles not addressed by overhead lighting. *PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO THIS LIGHT CART* The EPLCD-48-216-100 dolly cart mounted explosion proof light is UL listed Class 1 Division 1 & 2 and Class 2 Division 1 & 2 and offers operators the ability to quickly and easily add a full power light wherever it is needed. This unit incorporates an equipped with four fluorescent lamps producing 20,000 lumens of light into a mobile dolly cart style platform. This configuration allows operators to wheel this light fixture into position next to the target or lay it flat and roll it under the piece to provide illumination beneath the target. This explosion proof light and dolly cart offers an excellent lighting solution for operators who need illumination in unusual areas where traditional fixed mount lighting is obstructed or cannot effectively reach. Recent additions to this configuration include a fold out handle that enables operators to move and position the light effectively once it is laid flat for upward illumination.
Click Photo to Enlarge
The light fixture used in the EPLCD-48-216-100 is T6 rated and produces 20,000 lumens of light using four 54 watt T5HO fluorescent bulbs. The lamps are protected by heat and impact resistant Pyrex tubes and an additional Plexiglas lens which provides added protection from impacts and overspray. The light fixture is constructed of copper free aluminum alloy and is shipped with a 100` SOOW cord and explosion proof plug. The lamp reflectors are corrosion resistant heavy gauge aluminum and coated with a high gloss reflective finish. This unit is UL Listed for use in paint spray booths and operates on universal voltage ranging from 120V to 277V 50/60Hz. This mobile, explosion proof paint spray booth cart is also available in optional 12 VDC, 24VDC, 347 Volt and 480 Volt versions. Suggested Applications: Paint spray booths, Aircraft maintenance, Oil drilling rigs, Refineries, Solvent and cleaning areas, Gas processing plants, Chemical manufacturing, Waste treatment plants, Gas processing plants.
Made in USA Quality Lamp Options
1. Each unit dialectically tested. 2. Fixture arrives assembled and lamped to reduce installation time and cost. Dolly cart mounting provides versatility and allows the unit to be positioned for optimal light coverage of the work area. 3. Light fixture constructed of extruded corrosion resistant copper free aluminum alloy. 4. Over-sized, finned ballast housing for 800 mA fixtures provides more heat dissipation and extends ballast life. Larger ballast box accommodates High Output lamp ballasts. Ballast housing easily accessible and externally mounted. Top and bottom covers secured with nuts and bolts, instead of threaded through holes, which can be damaged with dirt. 5. Heavy gauge extruded aluminum reflectors with high gloss reflective finish. Resists dents and corrosion. 6. A wrench is used to unscrew the end caps for relamping the fixture, while other models require the “tap and knock off” method to loosen the end cap. 7. Pyrex tubes, a wire mesh guard, and replaceable Plexiglas lens protects fixture from overspray and random impacts. 8. Spring loaded sockets on both ends hold lamps firmly for maximum shock and vibration protection. F54-T5/850/HO – 54 watt, 5000 lumens per bulb, 20,000 hours life, 5000 Kelvin color, CRI 85 RHA-UNV-254-LT5 Ballast is THD<10% and HPF .98 (Suffix –50KT5) F54-T5/841/HO - 50 watt, 4450 lumens per bulb, 20,000 hour life, 4100 Kelvin color, CRI 85 (Suffix -41KT5)
