Explosion Proof Fluorescent Lights for Paint Booths on Aluminum Upright Cart with Wheels

LARSON ELECTRONICSSKU: PL3-EPLUC-48-4L
filler

Price:
Sale price$10,994.00

Description

Specifications / Additional Information
EPLUC-48-4L Explosion Proof U.L. Ratings
UL Listing: United States - Canada Class 1 Division 1, Groups C and D
Dimensions: W-24"  L-58"   H-25.5" Class 1 Division 2, Group A,B,C,D
Total Unit Weight: 180 Lbs UL 595 Outdoor Marine Type (Saltwater)
Total Watts: 216 watts* UL 844, 924
Voltage: Multi- 120V-60hz  220V-50hz  240V-60hz  277V-60hz: UL 1598 Marine Type
Total Lumens: STD-T5-HO Bulbs 20,000 Class II Division 1- 2, Groups E,F,G
Lamp Life Expectancy: STD-T5-HO Bulbs 20,000 Hours UL Certified Canadian Standards
Efficiency: STD-T5-HO Bulbs 92 Lumens per Watt UL listed for Paint Spray Booths*
Operating Temp Range: T6 Rated* -30 C to 70C
Minimum Operating Temp: -30 C
Maximum Case Temp: 90 C
Color Temp: 5000K- T5-HO Bulbs
Color Temp: 5000K- T5-HO Bulbs
Mounting: Portable Upright Cart with Adjustable Brackets
U.L Approval:
*Wattage totals are lamps only and may vary with different lamps.
*Substitution of included standard bulbs for optional lamps may affect paint spray booth approval.
' Product Overview '

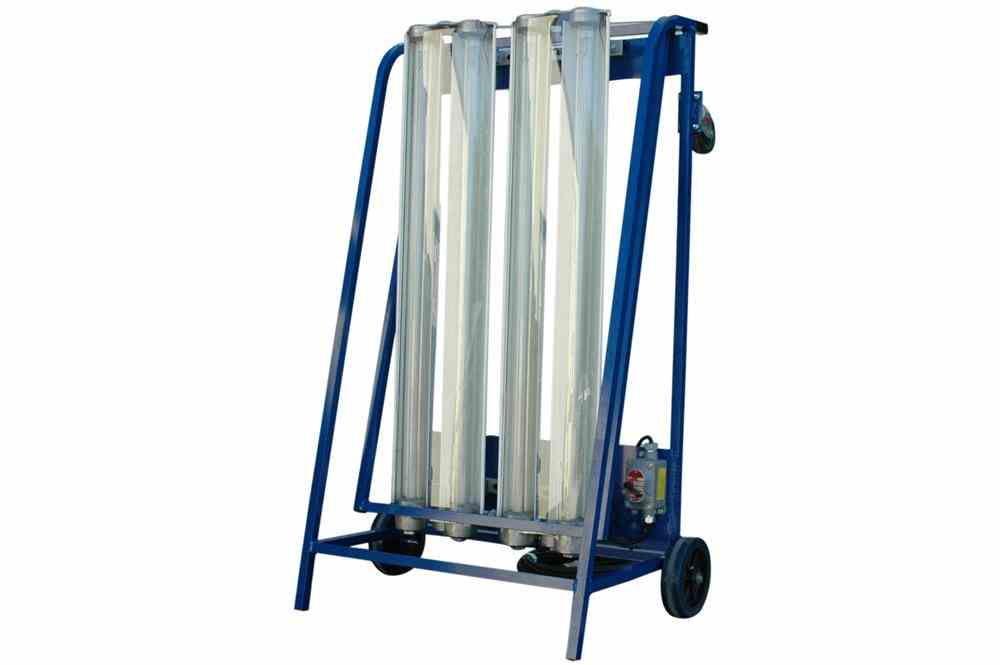

Made in the USA The Larson Electronics EPLUC-48-4L Upright Explosion Proof Fluorescent Light Cart is U.S./Canada UL Listed Class 1 Division 1, Class II Division 1 and offers exceptional lighting versatility and convenience with effective protection to operators working in hazardous locations. Solid rubber tires, uni-directional caster wheels, and a fold down handle gives this light excellent mobility and versatility and makes it an ideal choice for operators who need an effective and safe lighting solution that can be easily applied over a wide variety of applications. The EPLUC-48-4L aluminum upright explosion proof cart is UL listed Class 1 Division 1 and Class 2 Division 1 & 2 and offers the ability to quickly and easily add light wherever it is needed without the need for special considerations of hazardous conditions beyond adhering to the normal rules of ratings and classifications. This unit incorporates a pair of our highly effective Larson Electronics EPL-48-2L explosion proof fixtures equipped with four T5-HO fluorescent lamps into a mobile cart platform equipped with wheels. The platform is constructed of corrosion resistant aluminum alloy, has non sparking casters, and includes a Class 1 Div 1 explosion proof switch with 50 foot of SOOW electric cable and explosion proof plug as well.
Click to Enlarge Click to Enlarge Click to Enlarge
Click to Enlarge Click to Enlarge Click to Enlarge
This upright explosion proof aluminum cart offers an excellent lighting solution for operators who need full power illumination in areas where traditional fixed mount lighting is obstructed or cannot effectively reach. The cart is highly versatile and gives the operator the ability to easily move the entire assembly around the work space simply by leaning the cart back and rolling it into position. Also included is a fold down handle and uni-directional caster wheels that allows operators to lay the unit flat and wheel it into hard to reach areas such as underneath vehicles in paint spray booths. The light fixtures used in the EPLUC-48-4L are T6 temperature rated and paint booth certified, and produce a combined total 19,080 lumens of light using four T5-HO fluorescent bulbs. The lamps are protected by heat and impact resistant Pyrex tubes and heavy wire grates, and the fixtures are constructed of copper free aluminum alloy. The lamp reflectors are corrosion resistant heavy gauge aluminum and coated with a high gloss reflective finish. Included with this cart is 50 feet of chemical and abrasion resistant cord, exlosion proof plug, and an explosion proof inline switch which allows operators to safely control light operation within the hazardous area without the need for inconvenient plugging and unplugging of the fixture. This light cart is multi-voltage capable and can operate with voltages of 120V-60hz 220V-50hz 240V-60hz and 277V-60hz. The entire cart and fixture unit is UL Listed for use in paint spray booths and U.L. 1598 -U.L. 595 compliant for wet area and marine use. The cart allows the entire fixture to be easily wheeled into positionas needed, and can be laid flat for sliding the cart under vehicles or into hard to reach areas. The standard lamps included with this cart are F54-T5/850/HO; F32-T8 lamps are available upon request.   Note: The light fixture used in this cart is compatible with the usual options associated with the EPL-48-4L fixture including optional LED tube lamps and higher power fluorescent tubes. For special requirements or options not listed here contact us using the information below.. Suggested Applications: Paint spray booths, Aircraft maintenance, Oil drilling rigs, Refineries, Solvent and cleaning areas, Chemical manufacturing, Waste treatment plants, Gas processing plants.
Made in USA Quality Lamp Options - Cart Features
1. Each unit dialectically tested. 2. Fixture arrives assembled and lamped to reduce installation time and cost. Adjustable mounting brackets allow the light fixture to be rotated while on the cart through a wide degree of positions for optimal light placement. 3. Fixture constructed of extruded corrosion resistant copper free aluminum alloy. 4. Over-sized, finned ballast housing for 800 mA fixtures provides more heat dissipation and extends ballast life. Larger ballast box accommodates High Output lamp ballasts. Ballast housing easily accessible and externally mounted. Top and bottom covers secured with nuts and bolts, instead of threaded through holes, which can be damaged with dirt. 5. Heavy gauge extruded aluminum reflectors with high gloss reflective finish. Resists dents and corrosion. 6. A wrench is used to unscrew the end caps for relamping the fixture, while other models require the “tap and knock off” method to loosen the end cap. 7. Explosion proof, impact and heat resistant Pyrex tubes provide lamp protection. 8. Spring loaded sockets on both ends hold lamps firmly for maximum shock and vibration protection.   F54-T5/850/HO – 54 watt, 5000 lumens per bulb, 20,000 hours life, 5000 Kelvin color (Suffix –T5) F32-T8/841: (Optional) – 32 watt, 2950 lumens per bulb, 24,000 hours life, 4100 Kelvin color (Suffix –T8) F48-T8/HO - 48 watt, 4000 lumens per bulb, 18,000 hours life, 4100 Kelvin color (Suffix -T8HO) Other Lamps/Options: This unit uses our popular EPL explosion proof fixture which is compatible with several optional lamps and explosion proof accessories. Please see our related products categories below for more information. Larson Electronics can customize equipment according to needs. Please contact us for special requirements. Cart Features: 5” non sparking casters Frame constructed of corrosion resistant aluminum Adjustable fixture brackets 50 foot of SOOW electric cable Class I, Div. I Explosion Proof  Switch
