Explosion Proof LED Light Upright Cart with Wheels - 2nd Gen - Paint Spray Booths - Aluminum Frame
Explosion Proof LED Light Upright Cart with Wheels - 2nd Gen - Paint Spray Booths - Aluminum Frame
| EPLUC-48-4L-LED Explosion Proof | U.L. Ratings |
| UL Listing: United States - Canada | Class 1 Division 1, Groups C and D |
| Dimensions: W-24" L-58"  H-25.5" | Class 1 Division 2, Group A,B,C,D |
| Total Unit Weight: 180 Lbs | UL 595 Outdoor Marine Type (Saltwater) |
| Total Watts: 112 watts | UL 844, 924 |
| Voltage: Multi- 120V-60hz 220V-50hz 240V-60hz 277V-60hz: | UL 1598 Marine Type |
| Total Lumens: 11,000 | Class II Division 1- 2, Groups E,F,G |
| Lamp Life Expectancy: 50,000 Hours | UL Certified Canadian Standards |
| Efficiency: 98.21 Lumens per Watt | UL listed for Paint Spray Booths* |
| Operating Temp Range: T6 Rated* -30 C to 85C | |
| Minimum Operating Temp: -30 C | |
| Maximum Case Temp: 90 C | |
| Color Temp: 5600K | |
| Mounting: Portable Upright Cart with Adjustable Brackets | |
| U.L Approval: | |
| Wiring: 50ft SOOW Cord |

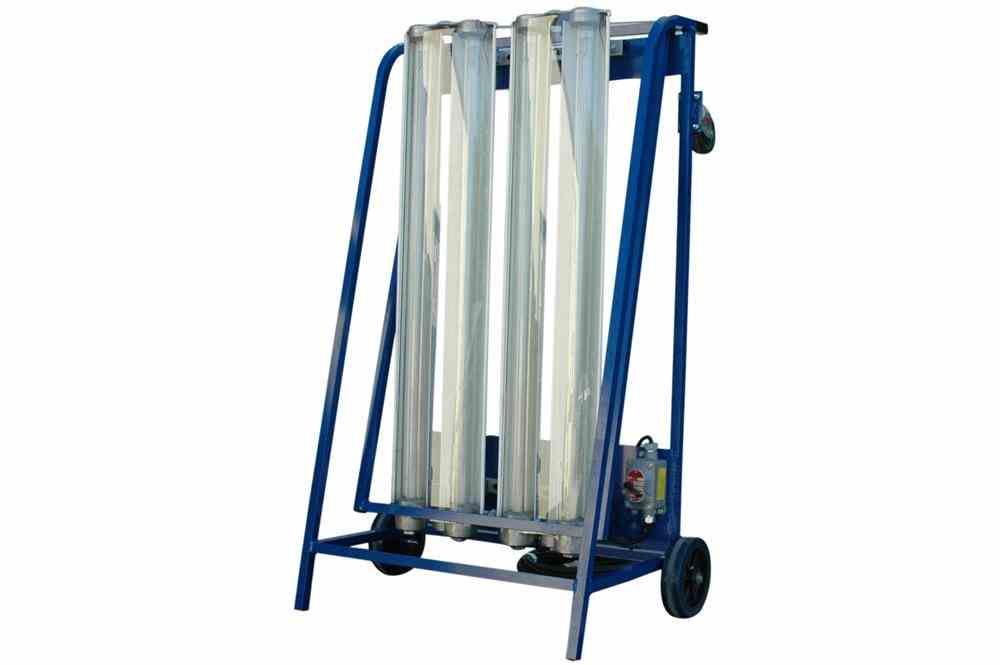

| Made in the USA The EPLUC-48-4L-LED-G2 Upright Explosion Proof LED Light Cart is U.S./Canada UL Listed Class 1 Division 1, Class 2 Division 1 and offers exceptional lighting versatility and convenience with effective protection to operators working in hazardous locations. Solid rubber tires, uni-directional caster wheels, and a fold down handle gives this light excellent mobility and versatility and makes it an ideal choice for operators who need an effective and safe lighting solution that can be easily applied over a wide variety of applications. The EPLUC-48-4L-LED-G2 aluminum upright explosion proof cart is UL listed Class 1 Division 1 and Class 2 Division 1 & 2 and offers the ability to quickly and easily add light wherever it is needed without the need for special considerations of hazardous conditions beyond adhering to the normal rules of ratings and classifications. This unit incorporates a pair of our highly effective Larson Electronics equipped with four LED tube lamps into a mobile cart platform equipped with wheels. The EPLUC-48-4L-LED-G2 is equipped with our specially designed LED T-series bulbs which produce 30% more light than standard T8 bulbs. The platform is constructed of corrosion resistant aluminum alloy, has non sparking casters, and includes a Class 1 Div 1 explosion proof switch with 50 foot of SOOW electric cable and explosion proof plug as well. | ||||||
|
||||||
|
||||||
This upright explosion proof aluminum cart offers an excellent lighting solution for operators who need full power illumination in areas where traditional fixed mount lighting is obstructed or cannot effectively reach. The cart is highly versatile and gives the operator the ability to easily move the entire assembly around the work space simply by leaning the cart back and rolling it into position. Also included is a fold down handle and uni-directional caster wheels that allows operators to lay the unit flat and wheel it into hard to reach areas such as underneath vehicles in paint spray booths.
We have eliminated the ballast box normally associated with fluorescent fixtures which reduces overall weight, creates a slimmer unit profile, and helps this fixture maintain a T-6 temperature rating. There is no ballast in this unit and the included LED T-series lamps have a 50,000 hour service life, both of which result in extreme efficiency and greatly reduced maintenance costs. Maintenance is further simplified with interchangeable screw on end caps and O ring seals which allows all relamping to be done from one end of the fixture.
The light fixtures used in the EPLUC-48-4L-LED-G2 are T6 temperature rated and paint booth certified, and produce a combined total 11,000 lumens of light using four tube style LED bulbs. The lamps are protected by heat and impact resistant Pyrex tubes and heavy wire grates, and the fixtures are constructed of copper free aluminum alloy. The lamp reflectors are corrosion resistant heavy gauge aluminum and coated with a high gloss reflective finish. Included with this cart is 50 feet of chemical and abrasion resistant cord, exlosion proof plug, and an explosion proof inline switch which allows operators to safely control light operation within the hazardous area without the need for inconvenient plugging and unplugging of the fixture.
This light cart is multi-voltage capable and can operate with voltages of 120V-60hz 220V-50hz 240V-60hz and 277V-60hz. We also offer a low voltage configuration for 12-24 Volts DC. The entire cart and fixture unit is UL Listed for use in paint spray booths and U.L. 1598 -U.L. 595 compliant for wet area and marine use. The cart allows the entire fixture to be easily wheeled into positions needed, and can be laid flat for sliding the cart under vehicles or into hard to reach areas. ÂÂ
Note: The light fixture used in this cart is compatible with the usual options associated with the EPLUC-48-4L-LED-G2 fixture including optional LED tube lamps and higher power fluorescent tubes. For special requirements or options not listed here contact us using the information below.
Suggested Applications: Paint spray booths, Aircraft maintenance, Oil drilling rigs, Refineries, Solvent and cleaning areas, Chemical manufacturing, Waste treatment plants, Gas processing plants.
|
