Explosion Proof Switch w/ Potentiometer - C1D1, C2D1 - 1-10K Ohms - Rotary Dial - Double Gang Box - (2) NO & (2) NC Contacts

LARSON ELECTRONICSSKU: PL3-EPS-2XPB-PTM.10K-MOD1
filler

Price:
Sale price$3,458.00
 更多支付选项

Description

Specifications / Additional Information
EPS-2XPB-PTM.10K-MOD 1 Explosion Proof Push Button Switch w/ Pontentiometer Ratings/Approvals
Unit Type: Explosion Proof Push Button Switch w/ Potentiometer Class I, Division 1&2, Groups C,D
Dimensions: - Class II, Division 1&2, Groups E,F,G
Weight: - Class III, Division 1&2
Switch Style: Momentary Push Button (Stop/Start) NEMA 7 (Groups C & D)
Voltage: 120-277V AC NEMA 9 (Groups E, F, G)
Horsepower: 1HP @ 120VAC / 2HP @ 250VAC Certified to USA/Canadian Standards
Amp Rating: 10A
Pontentiometer Resistance: 1-10K Ohms
Pontentiometer Dial Type: Rotary
Contacts: (1) NO & (1) NC [Green Button] , (1) NO & (1) NC [Red Button}
Materials: Non-sparking Aluminum
Termination Options: Dead End or Feed Thru
Hub Options: 1/2" or 3/4" NPT
' Product Overview '

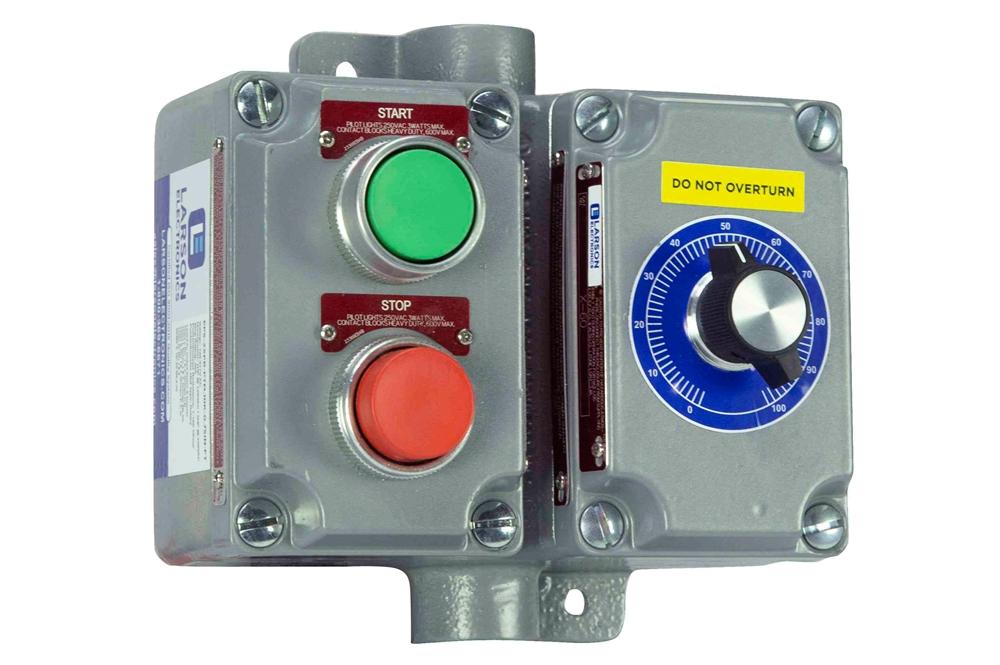

The Larson Electronics EPS-2XPB-PTM.10K-MOD1 Explosion Proof Push Button Switch with Potentiometer is suitable for motor and electrical control in flammable work sites. The 10-amp device features a robust potentiometer with 1-10k Ohms resistance for up to 2 watts at 32V DC, which can be set using a rotary dial. This NEMA-rated unit is constructed of non-sparking aluminum and takes on a double-gang box configuration. This unit has 4 contacts: (1) Normally Closed and (1) Normally Open on the start button, and (1) Normally Closed and (1) Normally Open on the stop button. The EPS-2XPB-PTM.10K-MOD1 designed for use in Class I, Divisions 1 & 2; Class II, Divisions 1 & 2; and Class III, Divisions 1 & 2 facilities. Rated at 10 amps, this explosion proof unit accepts currents ranging between 120-277V AC. The device features a pontentiometer with 1-10k Ohms resistance for up to 2 watts at 32V DC. Operators can make adjustments to the instrument using a rotary dial. The unit has momentary stop/start push buttons which allows locking of the ON/OFF position. The stop and start push buttons both include (1) Normally Closed and (1) Normally Open contact, for a total of 4 contacts. The EPS-2XPB-PTM.10K-MOD1 is constructed of non-sparking aluminum and is triple coated. The lever is connected to a threaded stainless steel shaft that passes through the faceplate. The entire unit is completely corrosion resistant and is NEMA rated. Wiring/Mounting: Operators can completing wiring and mounting via a 1/2" or 3/4" NPT hub. Termination options include dead end or feed thru. Suggested Applications: Hazardous locations, oil and gas sites, agricultural operations, grain storage, woodshops, motor control and more.
