C1D1 Explosion Proof Horn - Industrial Siren - Programmable Timer, 10 Settings - N4X

LARSON ELECTRONICSSKU: PL3-EPSN-HRN-PA-AT-MOD2
filler

Price:
Sale price$5,524.00

Description

Specifications / Additional Information
EPSN-HRN-PA-AT-MOD2 Explosion Proof Industrial Horn Features/Ratings
Listing: United States, Canada Class I, Division 1 Groups C.D
Unit Type: Explosion Proof Industrial Horn w/ Timer Class I, Division 2 Groups A,B,C,D
Dimensions: 14” W x 8” H x 18.5” L Class II, Division 2 Groups F,G
Weight: 19.5 lbs NEMA 4X
Voltage: 120-240V AC or 24V DC UL Listed
Volume: S7–110dbA @ 10` Marine Rated
Operating Modes: 8 User Selectable Field Tones
Timer Schedule Settings: 10 (Maximum)
Amps: 0.8A 50/60 Hz @ 24V DC, 0.2A 50/60 Hz @ 120V AC, 0.1A 50/60 Hz @ 240V AC
Ambient Temperature Range: –55º C to +85º C (–67º F to +185º F)
Materials: Cast Aluminum/Fiberglass
Mount: Omni-directional Mounting Bracket
Hub: (1) 1/2" NPT
' Product Overview '

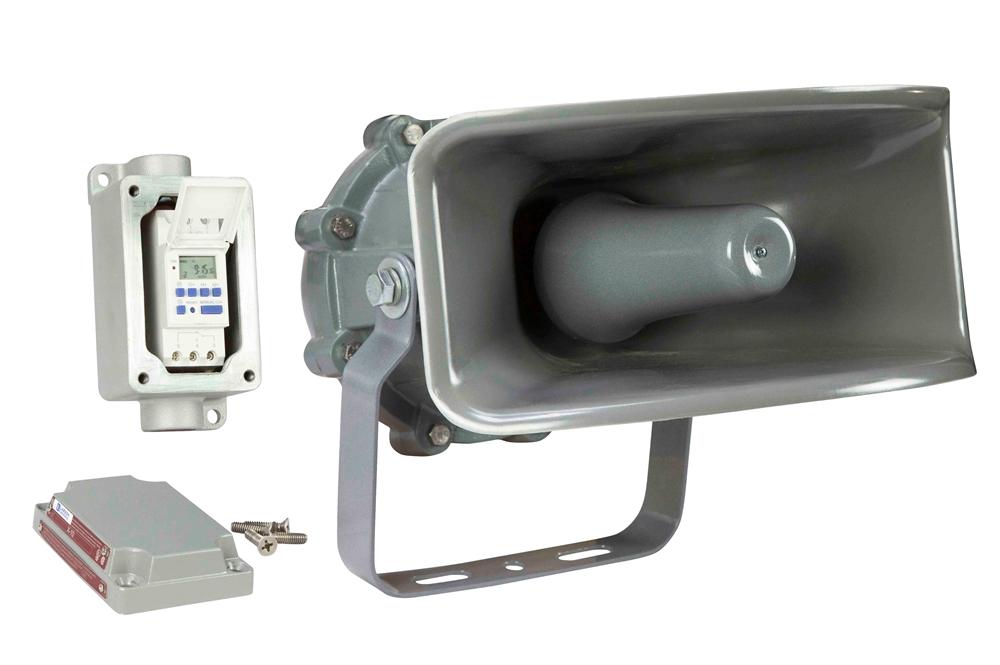

The Larson Electronics EPSN-HRN-PA-AT-MOD2 Explosion Proof Horn provides a powerful, audible alarm system for Class I, Division 1 & 2 and Class II, Division 2 facilities. This unit offers multiple tones, a programmable timer (up to 10 schedule settings) and multiple voltage options. The explosion proof device is constructed of aluminum and fiberglass for durability in rugged environments. The EPSN-HRN-PA-AT-MOD2 provides operators in hazardous locations with an effective and powerful alert/signal system that can withstand demanding conditions and be heard over the operation of industrial machinery. This unit includes 8 different tones which can reach a peak output of 110dBA and can be remotely operated for priority alerts. A programmable timer ensures accurate and automated operation by allowing operators to set multiple timing schedules (up to 10 settings; for example - 11:00 am, 3:15 pm, 8:30 pm, etc.). Voltage options include 120-240V AC or 24V DC. The housing on this horn is constructed of heavy duty aluminum and the horn is formed from fiberglass. The entire unit is finished in a durable grey powder coat for resistance to corrosion. This weatherproof/dustproof system is NEMA 4X and marine rated for wet environments.
Click Photos to Enlarge
Tones:   Selectable by switch on sound module 1) Continuously running train of eight sounds in sequence 2) Wail - conventional siren 3) Yelp - rapid siren 4) Two- tone 5) Whoop - ascending low to high 6) Yeow - descending high to low 7) Horn - Steady 8) Beep - slow intermittent horn 9) Stutter - rapid intermittent horn 0) Remote-Enables remote selection of:                                                                                                             7 - Horn                    4 - Two tone - alternating                    3 - Yelp - rapid siren                    1 - Wail - manual siren Wiring/Mounting: Mounting for the industrial horn is facilitated by a sturdy omni-directional mounting bracket. The bracket ensures secure mounting on flat surfaces and allows vertical adjustment of the horn for secure placement and optimum sound direction. Operators are provided access to one, 1/2" NPT hub for completing wiring connections. Applications: Hazardous locations, alarm systems, automated alarms, paint spray booths, chemical processing, warehouses, packaging plants, petrol refineries and more.
