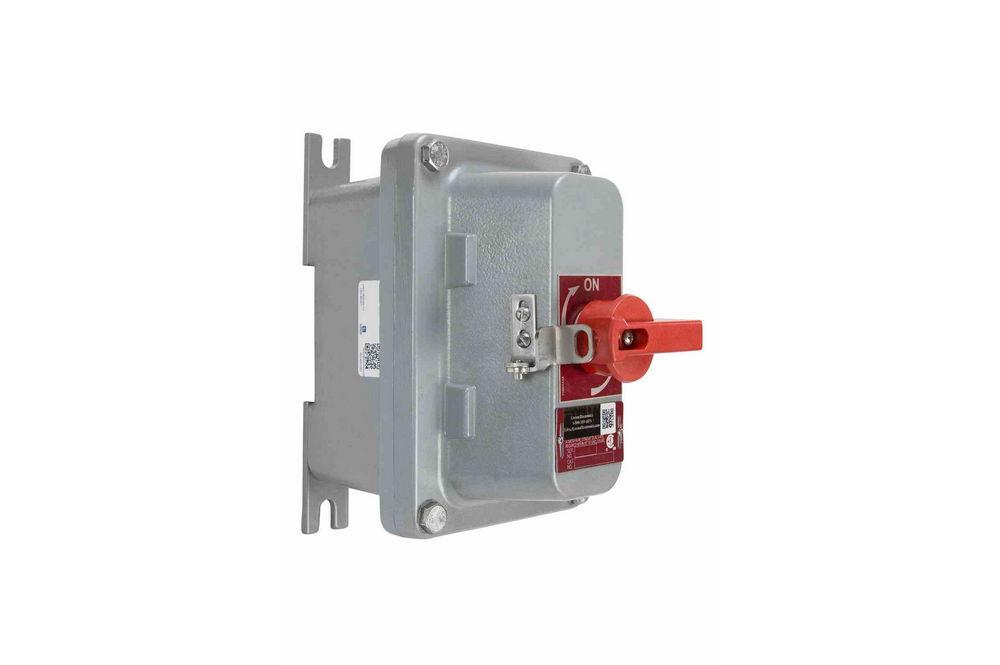

30A Three Phase Explosion Proof Switch - Non Fused - Breather/Drain Valve - Lock Out/Tag Out - NEMA

LARSON ELECTRONICSSKU: PL3-EPSW-3PH-30-BD-N4X
filler

Price:
Sale price$4,884.00

Description

Specifications / Additional Information
EPSW-3PH-30-BD-N4X Explosion Proof Switch Ratings
Listing: United States Class I, Divisions 1 & 2 Groups B, C, D
Dimensions: 5.75" W x 8.06" H x 6.31" D Class II, Divisions 1 & 2 Groups E, F, G
Weight: 11 lbs Class III
Voltage: 120V, 208V, 230V, 480V or 600V AC UL 98
Maximum Amps: 30 NEMA 4X, 7, 9
Horsepower Rating: 2HP (120V 1P), 5HP (230V 1P), 10HP (208/230V 3P), 20HP (480V 3P), 30HP (600V 3P)
Enclosure Material: Copper-Free Aluminum
Cover Bolt Material: Stainless Steel
Gasket Material: Silicone
Breather/Drain Valve: Included
Exterior Finish: Grey Powder Polyester Paint
Mounting: Flat Surface
Hub Size: 1" NPT Hub or 3/4" NPT Hub
Hub Configuration: Feed Thru or Dead End
' Product Overview '
The EPSW-3PH-30-BD-N4X from Larson Electronics is an Explosion Proof Switch with a 30-amp and 20-HP rating. This explosion proof switch is designed for Class I, Divisions 1 & 2 Groups B, C and D; Class II, Divisions 1 & 2 Groups E, F and G; and Class III environments. The NEMA 4X, 7 and 9 rated device can be used in hazardous work locations both indoors and outdoors and can also be used in areas where frequent washdowns, heavy rain or water spray occur. The EPSW-3PH-30-BD-N4X explosion proof switch features a copper-free aluminum enclosure to protect the internal components from water damage and to make the unit explosion proof and safe to use in hazardous areas. This 480V unit also has stainless steel cover bolts, breather/drain valve and a silicone gasket to seal out moisture. The exterior of the NEMA 4X, 7 and 9 rated switch is finished with electrostatically applied grey powder polyester paint for long-lasting durability. Hubs: The explosion proof unit is available with multiple hub options, including 1" and 3/4" NPT hub sizes. Hub configuration options include feed through or dead end. Applications: Suitable for use as motor disconnects or industrial control panel disconnects on service entrance equipment, panelboards, switchboards, industrial control equipment and motor control centers.
